10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1

10.1inch M101NWWB 1280X800 LCD Screen work with HDMI VGA+2AV LCD Controller Board VS-TY2662-V1

Model NO.
K001864 VS-2662-V1+M101NWWB
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

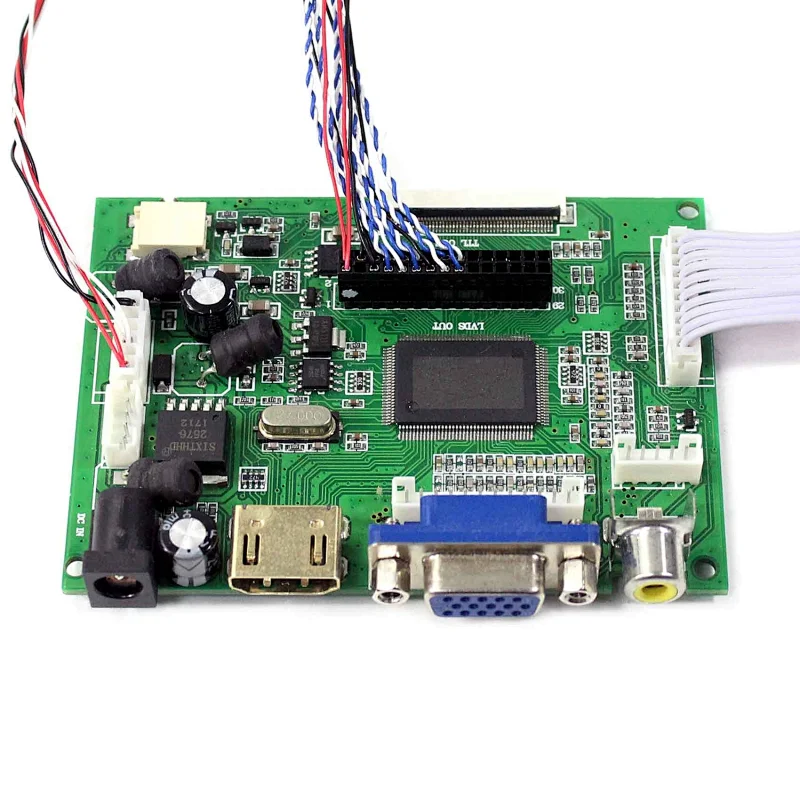

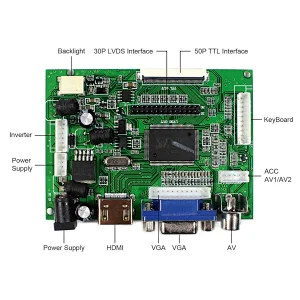

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 91mm x 66mm x 12mm

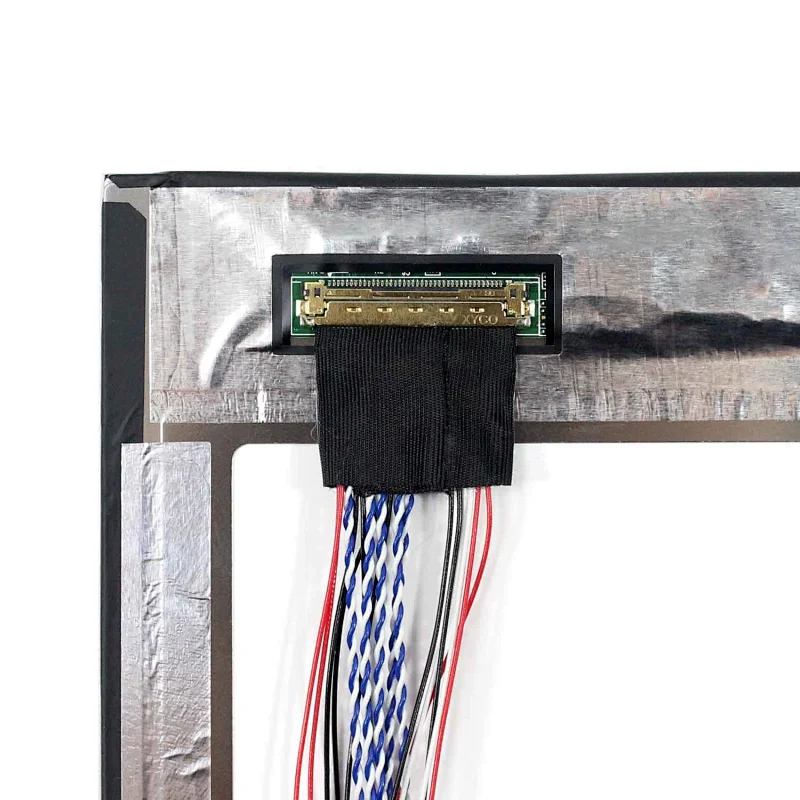

  • 10.1"M101NWWB 1280X800 LCD Screen:
    Display Mode  MVA, Normally Black, Transmissive
    Resolution 1280RGB)×800
    Outline Size 229.46 × 149.1×4.56(H×V×D)
    Display Area 216.96× 135.6 (H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
    Backlight  WLED
    Input Voltage  3.3V (Typ.)
  • Packing list :
    1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 10.1inch M101NWWB 1280X800 LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
