10.4" AA104VH01 640X480 LCD Screen with VGA LCD Controller Board

Model NO.
RT2270C-A+ AA104VH01 K001267
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Type:TFT LCD
  • SIZE:10.4"
  • Resolution:640x480
  • Part No:AA104VH01
  • Brightness:800cd
  • Signal Interface:CMOS (1 ch, 6-bit) , Connector , 31 pins
  • Board Video Input:VGA
  • Board Size:107mm x 52mm x 18mm
  • Place of Origin:CN;GUA
  • Display Size:10.4inch
  • Model Number:K001267 RT2270C-A+ AA104VH01
  • Brand Name:VS
Products Show
Product Description

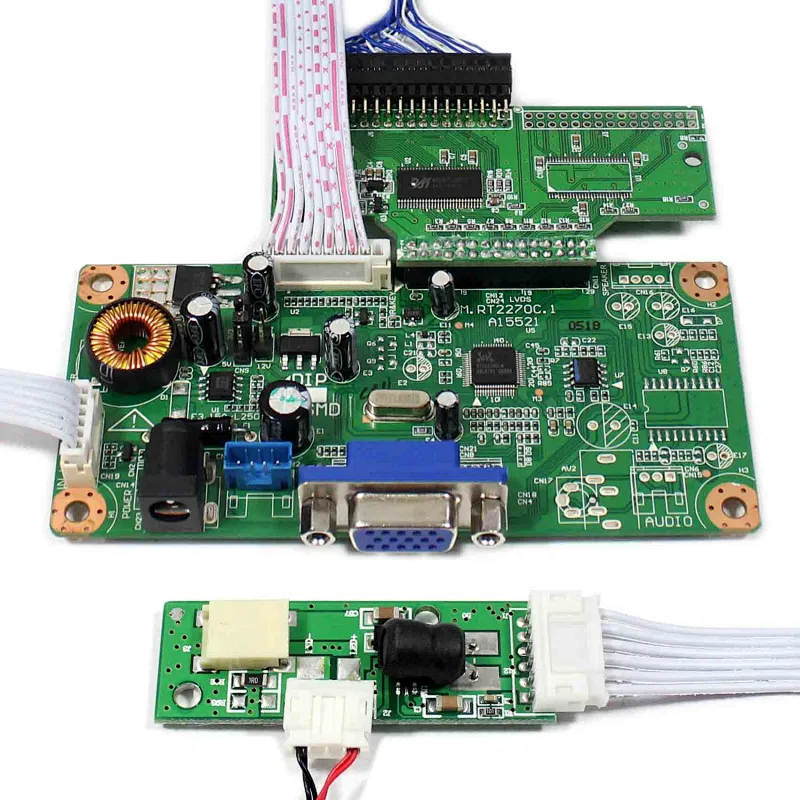

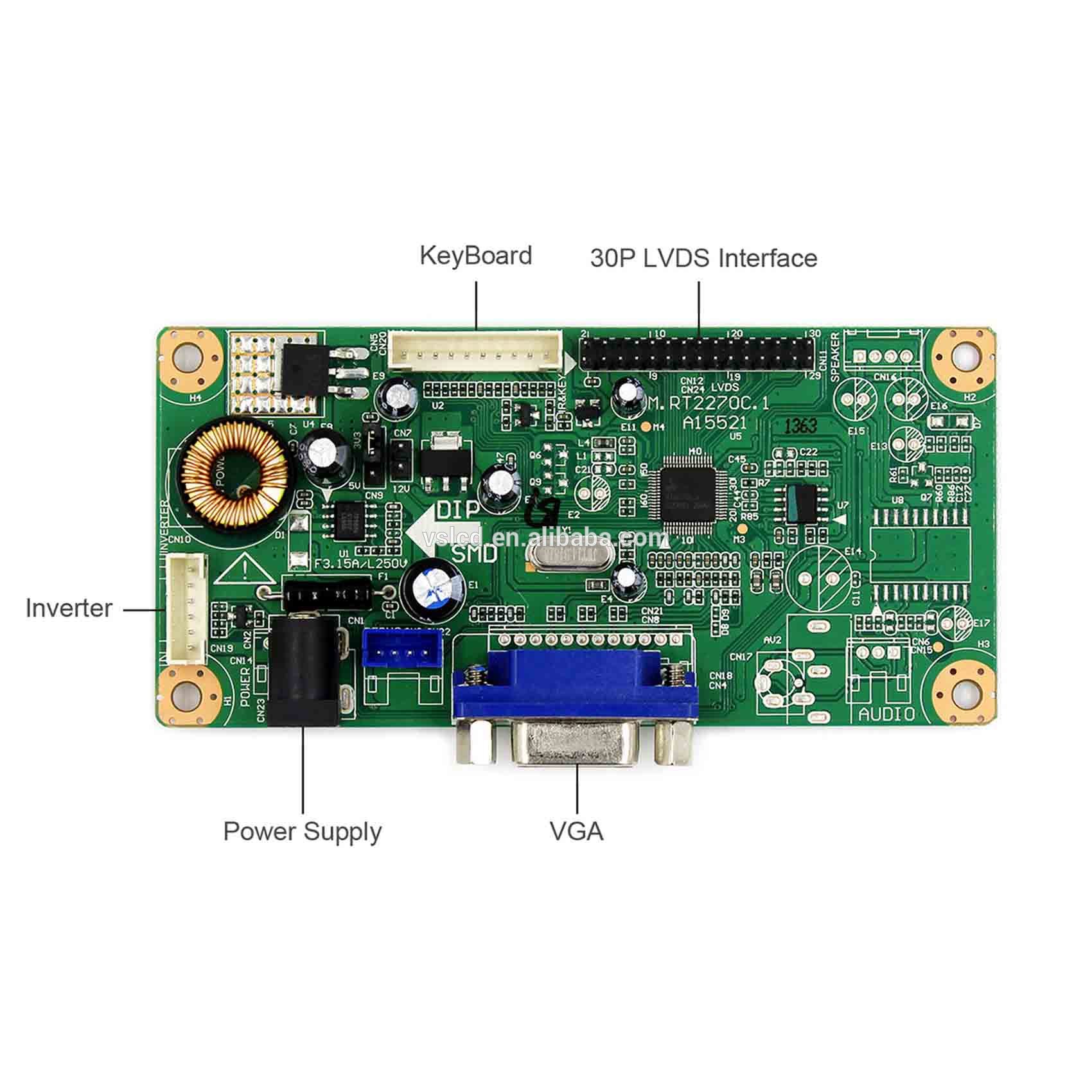

Product name:
VGA LCD Controller Board RT2270C-A
Details:
VGA LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: VGA

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:107mm x 52mm x 18mm

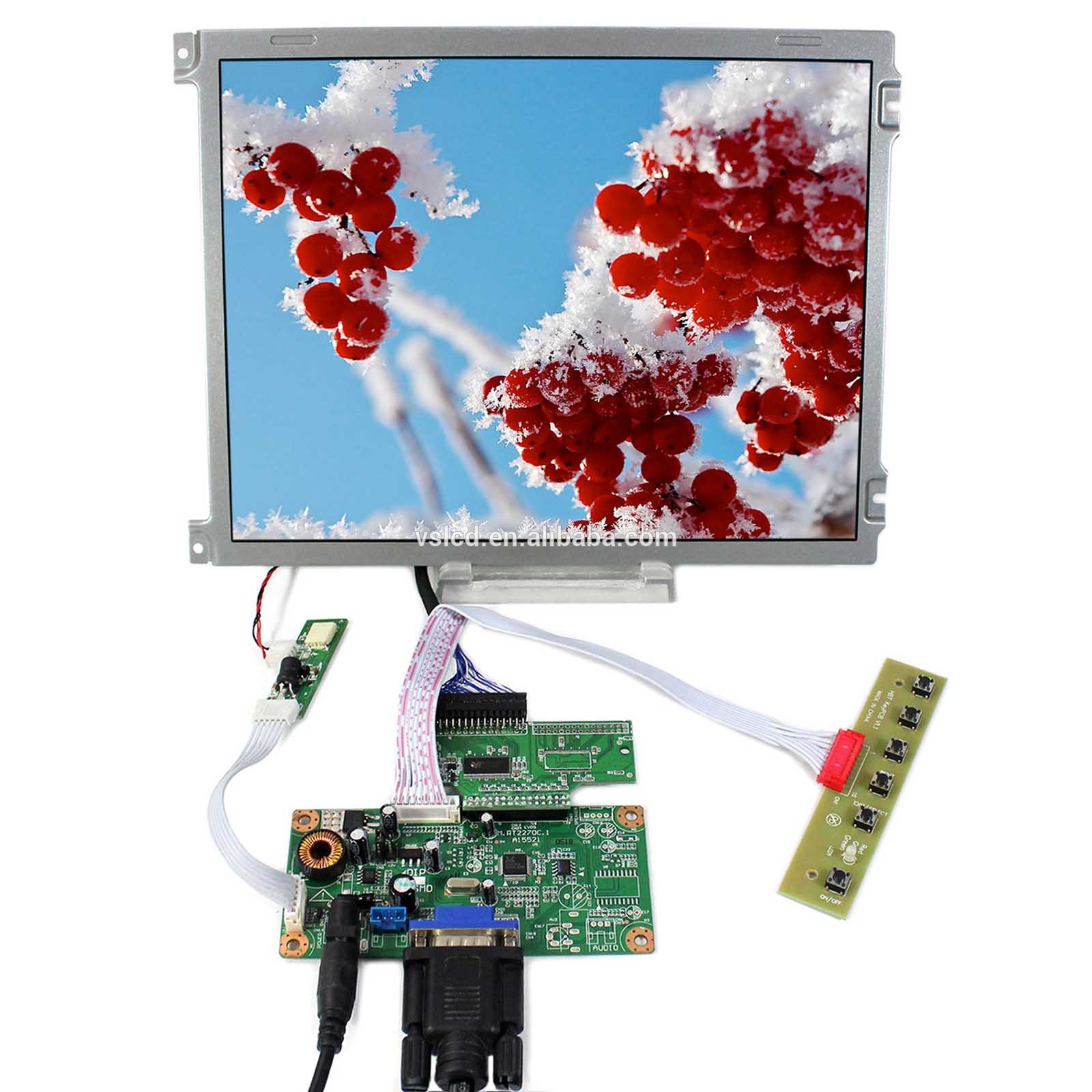

Product Name:
10.4"AA104VH01 640X480 LCD Screen
Details:
Display Mode TN, Normally White, Transmissive

Resolution 640RGB)×480

Outline Size 241 ×180.2×11(H×V×D)

Display Area 211.2 × 158.4 (H×V)

Brightness 800 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 70/70/65/65 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface CMOS (1 ch, 6-bit) , Connector , 31 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

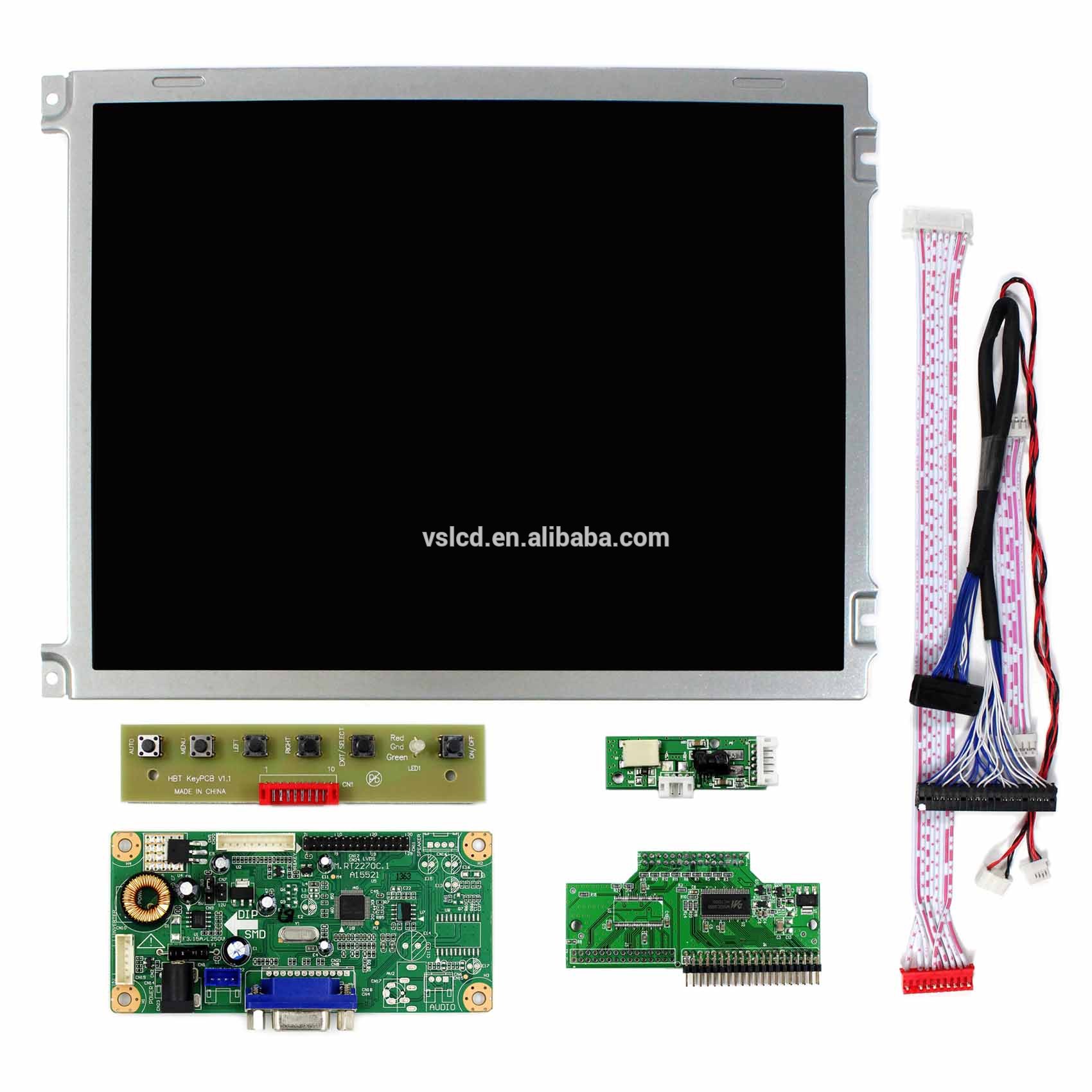

Packing list:
 1× VGA LCD Controller Board RT2270C-A

1× 10.4inch AA104VH01 640X480 LCD Screen

1× Converter Board

1× Inverter Board

1× LVDS Cable

1× Keyboard With Cable

Hot Sales Product

More ^
LCD Driver Board

More ^
Driver Board+LCD Panel

More ^
Touch Panel
Our Company

Our Company

Our Meeting Office

WorkShop

Our Cusomter Visit Factory

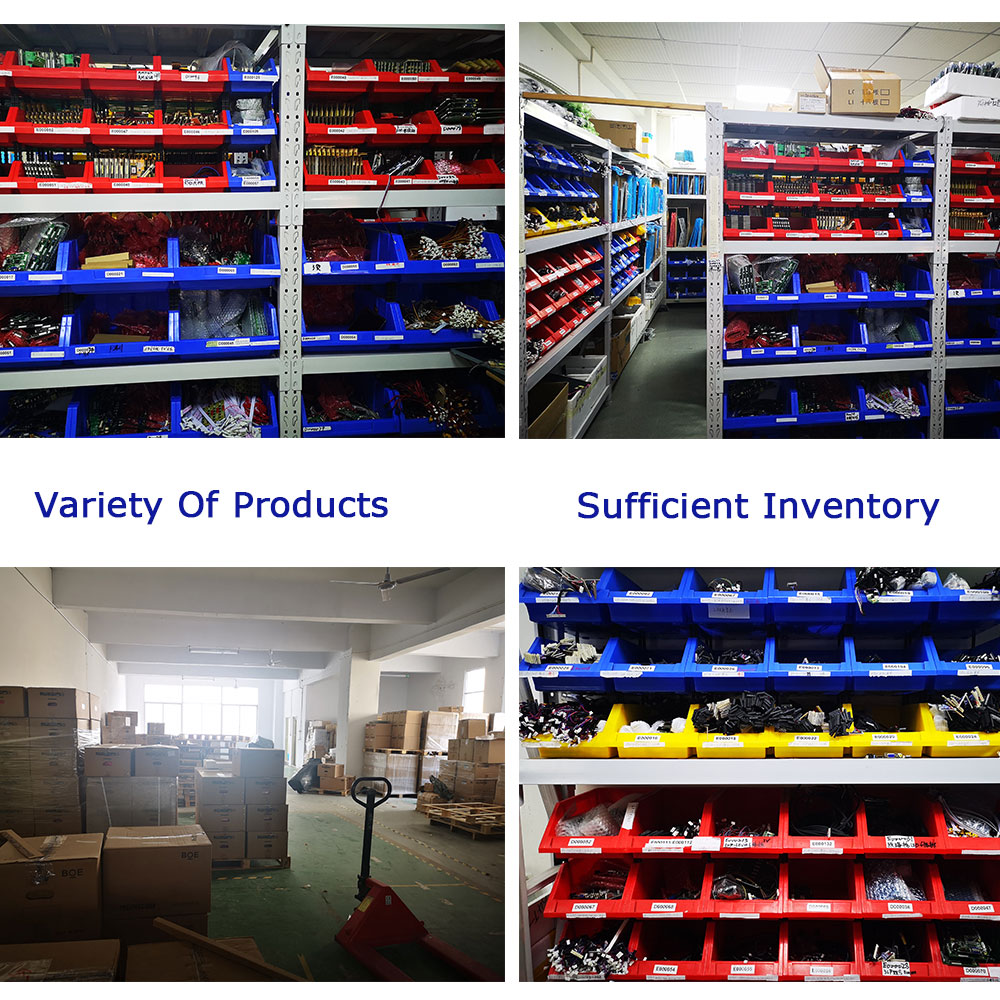

WareHouse

Thousands of goods include the LCD, AD Board, Touch Panel, Cable etc.

Each item have SKU No. Standard goods always have goods in stock.

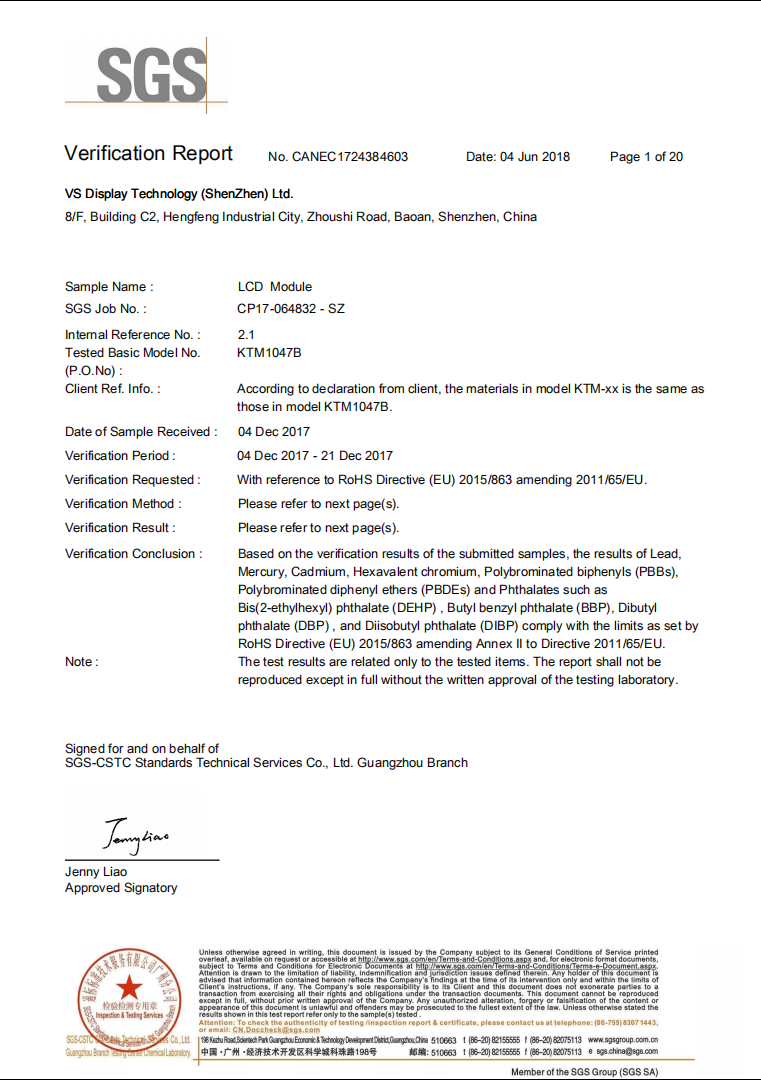

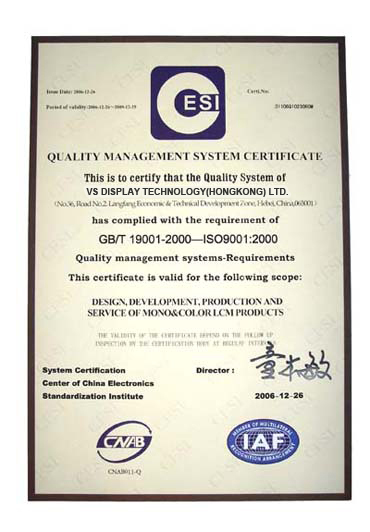

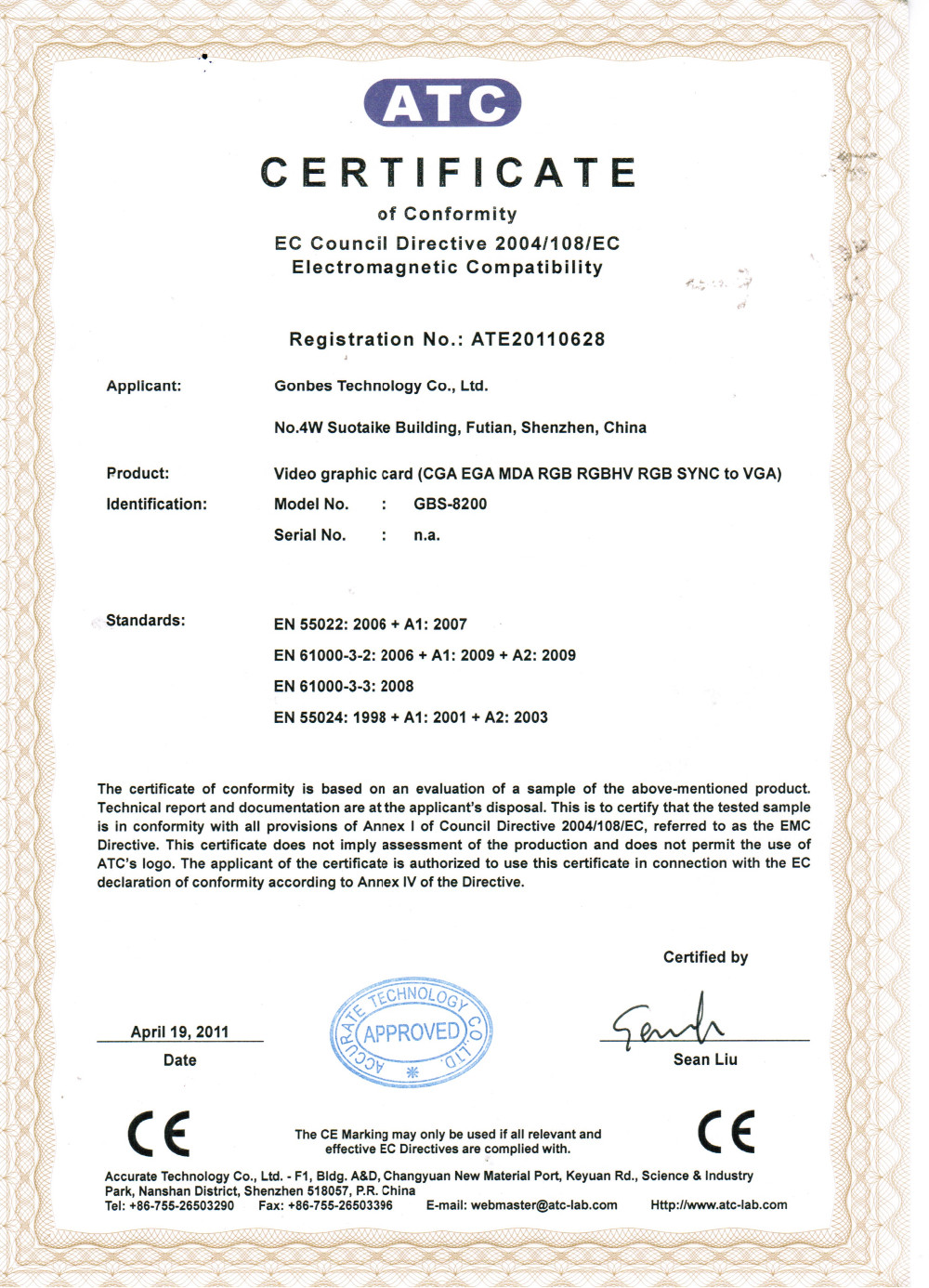

Our Certifications
Packing & Delivery

Packing Details  :

Packing with standard export box, it also can package as your request.

Delivery Details :

3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register.

Our Customer Product

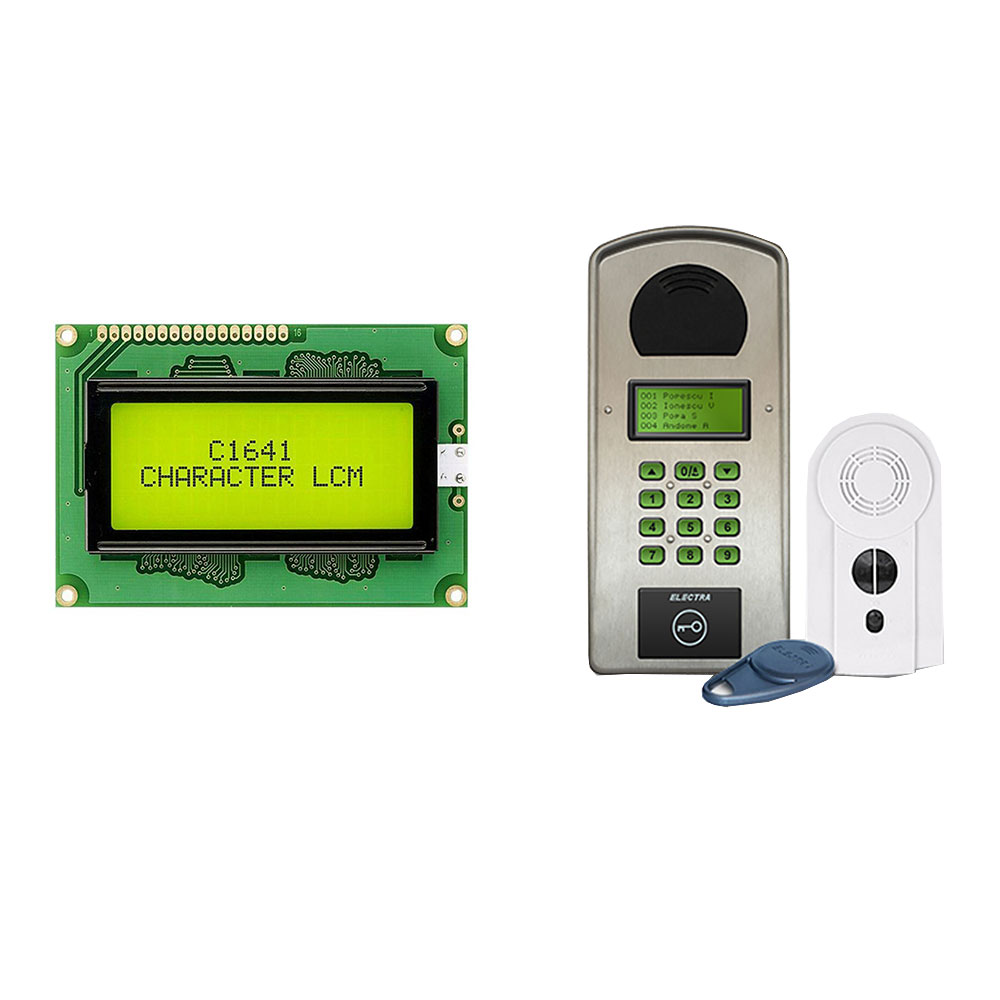

Video Door Phone

16 x 4 LCD Module use for Video Door Phone

From Romania Customer

Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)

LCD Type : STN, POSITIVE

Driver IC : SPLC780D1

Backlight : YG LED

Supply Voltage : 5V

Favorable Comment

10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy

From Europe customer

LCD Size : 10.4"

Resolution : 800RGB)×600

Outline Size : 236 × 174.3×4.9 (H×V×D)mm

Brightness : 500 cd/m² (Typ.)

Signal Interface : LVDS (1 ch, 6-bit) , 20pins, Connector

Input Voltage : 3.3V (Typ.)




Application:
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory for more than 10years in this field.

Q: How long is your delivery time?

A: Generally it is 1-3 days for sample if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for charge, shipping cost depend on the QTY.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Q: After Service for the product ?

A:  We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
