Model NO.
A000210 HT10X21-311
Quantity:

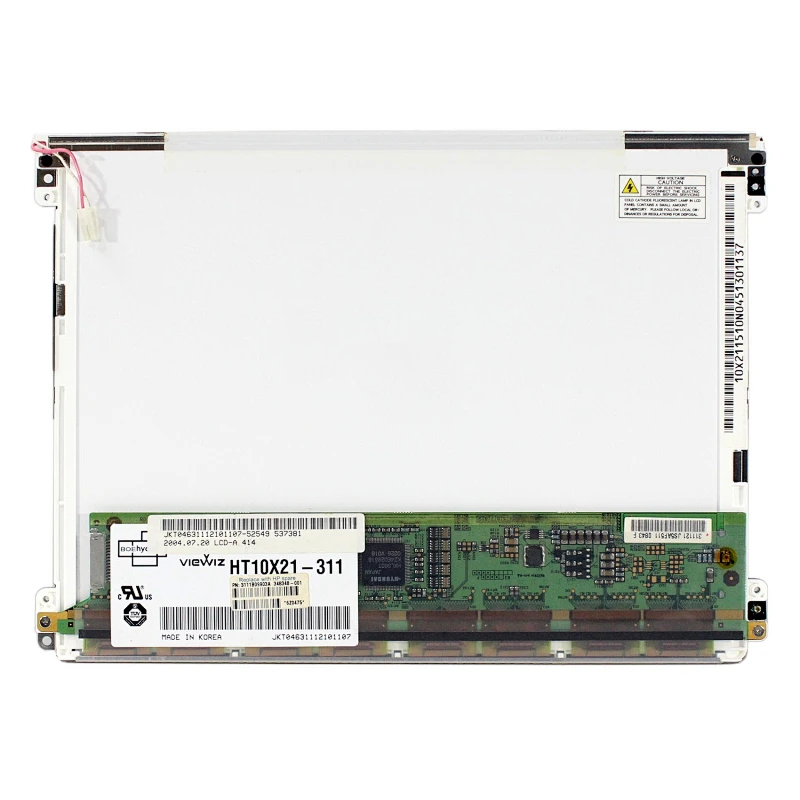

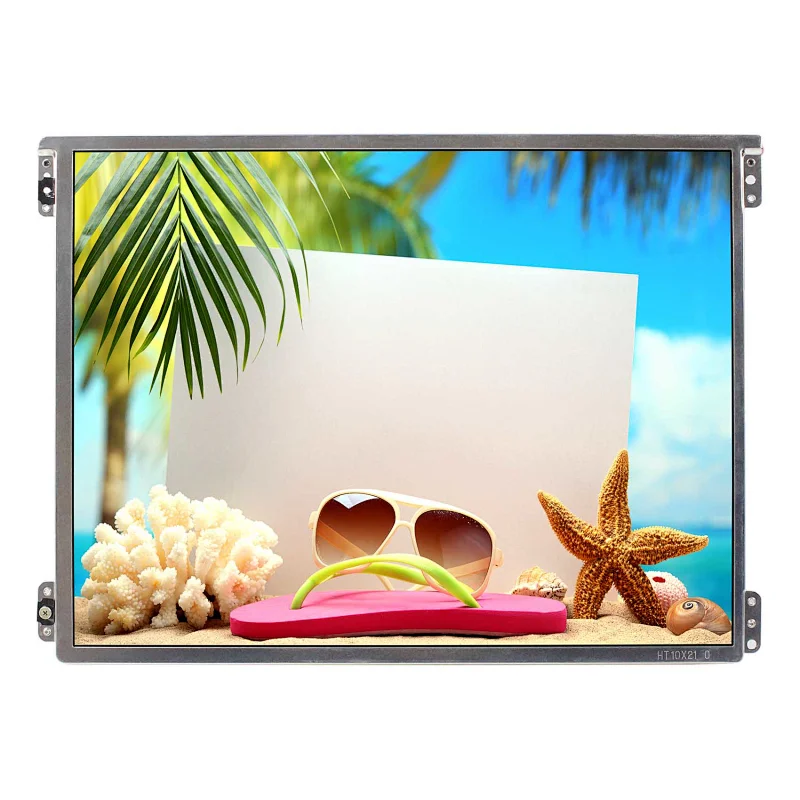

  • 10.4"HT10X21-311 1024X768 LCD Screen:
    Display Mode  FFS, Normally Black, Transmissive
    Resolution 1024RGB)×768

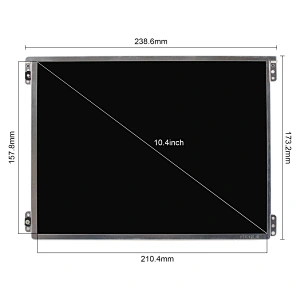

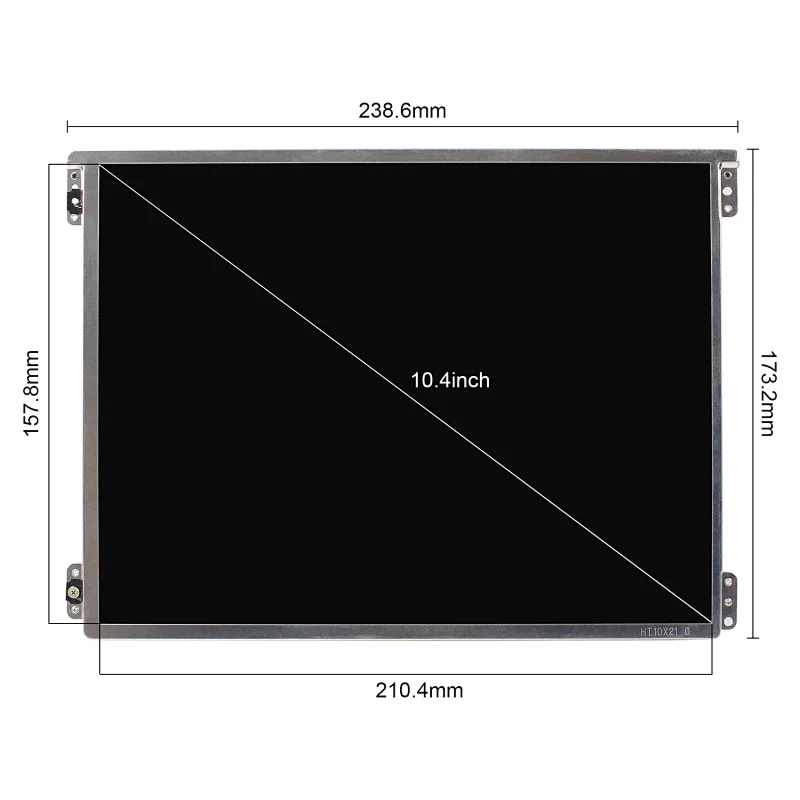

    Outline Size 238.6 × 173.2×2 (H×V×D)
    Display Area 210.4 × 157.8 (H×V)
    Brightness  250 cd/m² (Typ.
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , 14 pins , Connector
    Backlight  CCFL
    Input Voltage  3.3V (Typ.)
  • Packing list :
    1× 10.4inch HT10X21-311 1024X768 IPS LCD Screen
