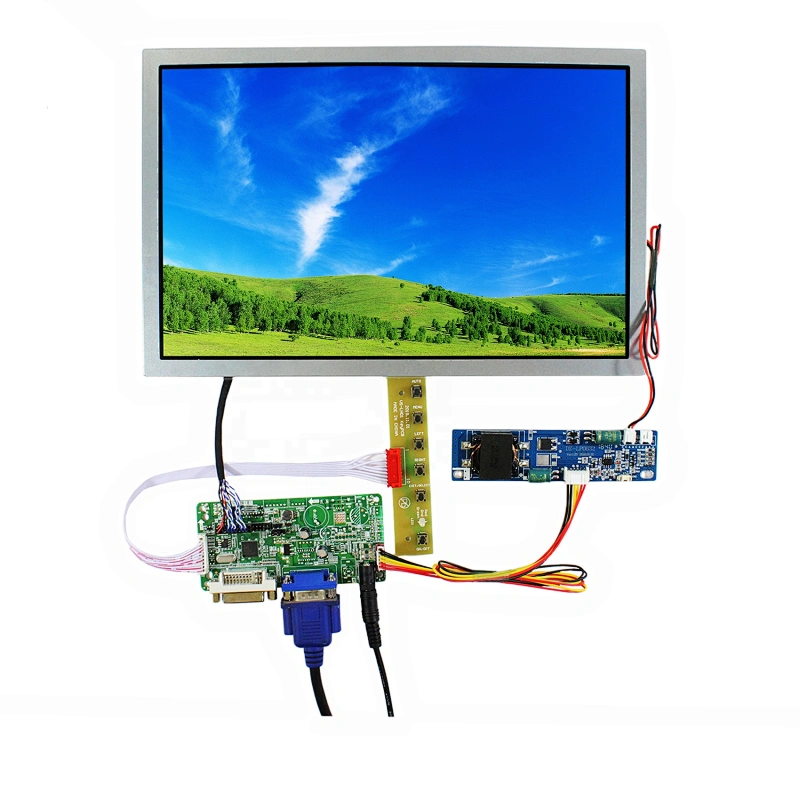

12.1" AA121TD02 1280X800 high brightness LCD Screen with VGA+DVI LCD Controller Board RT2281

Model NO.
K002668 RT2281+AA121TD02
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Size:12.1inch
  • Part No:AA121TD02
  • Resolution:1280x800
  • Outline Size:283x 185.1x10(HxVxD)
  • Brightness:1000 cd
  • Contrast Ratio:700:1
  • Signal Interface:LVDS (1 ch, 6-bit) , 20 pins , Connector
  • Input Voltage:3.3V
  • Board Part no:RT2281
  • Board Singal:DVI VGA
  • Place of Origin:CN;GUA
  • Type:TFT LCD with Board
  • Display Size:12.1inch
  • Supplier Type:Manufacture
  • Model Number:K002668 RT2281+AA121TD02
  • Brand Name:VS
Products Show
Product Description
Product name:

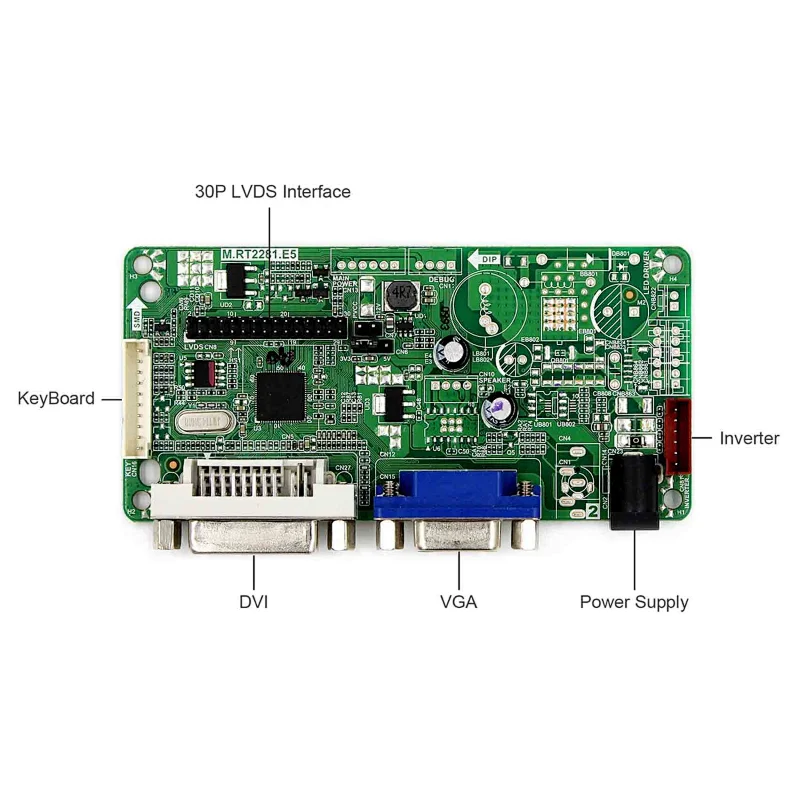

VGA+DVI LCD Controller Board RT2281
Details:
DVI VGA LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 5A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: DVI VGA

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

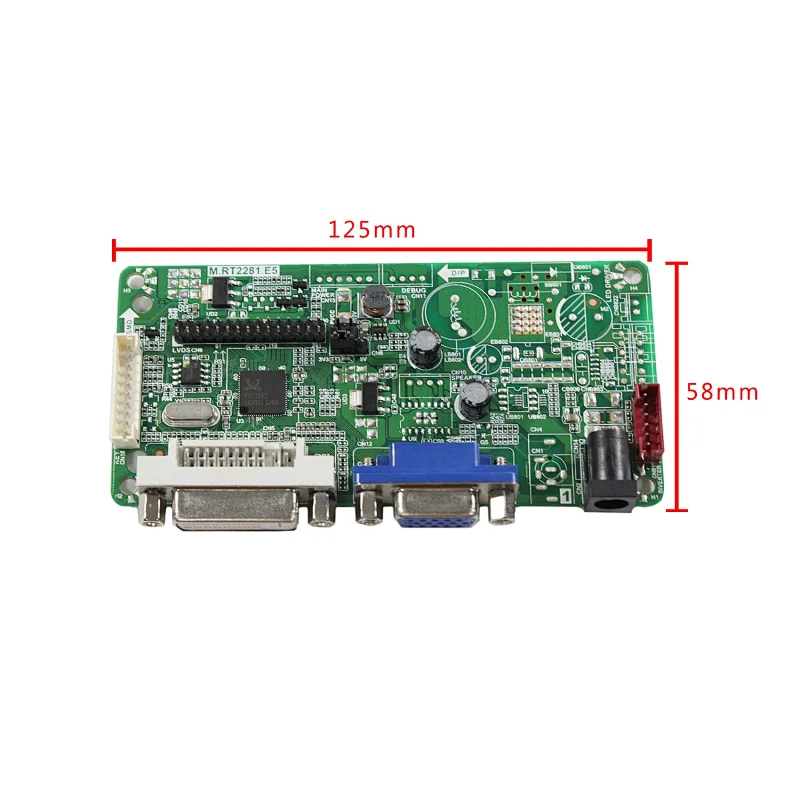

Board Size: 125mm x 58mm x 17mm
Product Name:
12.1"AA121TD02 1280X800 LCD Screen
Details:

Display Mode TN, Normally White, Transmissive

Resolution 1280RGB)×800

Outline Size 283× 185.1×10(H×V×D)

Display Area 216.12 × 163.2 (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 80/80/80/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

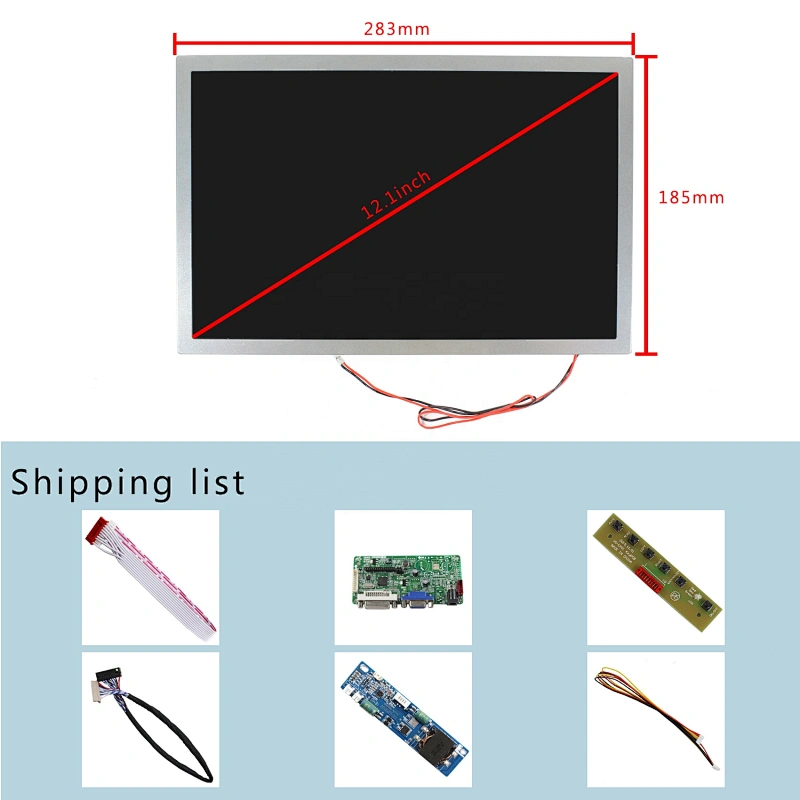

Packing list:
1× VGA+DVI LCD Controller Board RT2281
1× 12.1inch AA121TD02 1280x800 LCD Screen

1× LVDS Cable

1× Backlight Cable

1× Keyboard With Cable
