Model NO.
K000324 M.NT68676.2A+DF19-20P
Quantity:

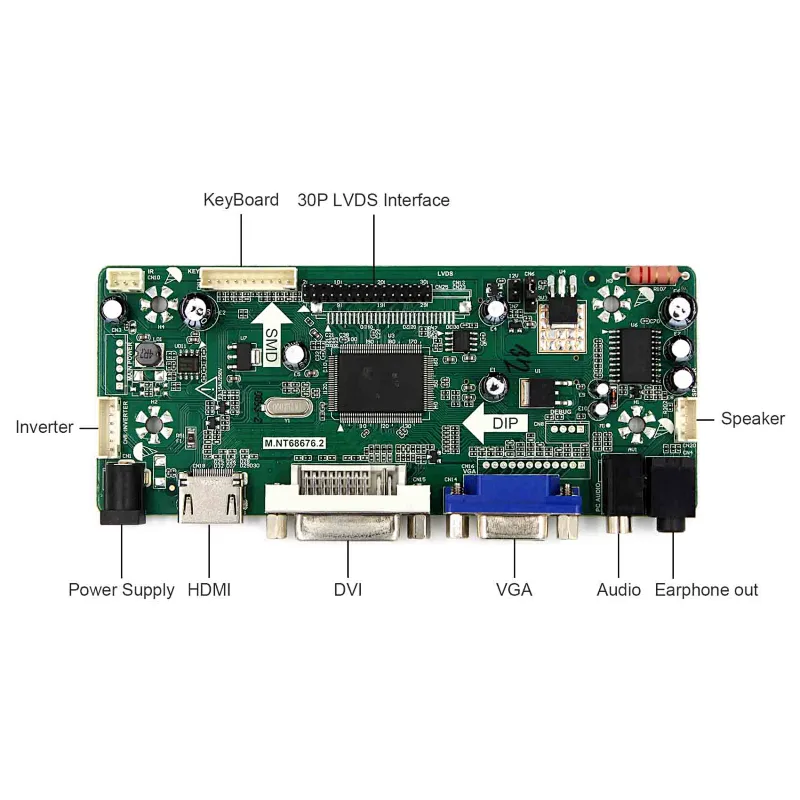

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm
  • 12.1"1024X768 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×768
    Outline Size 261× 198×5 (H×V×D)
    Display Area 246 × 184.5 (H×V)
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 400:1 (Typ.) (TM)
    Viewing Angle 45/45/15/45 (Typ.)(CR≥10) [Left / Right / Up / Down]

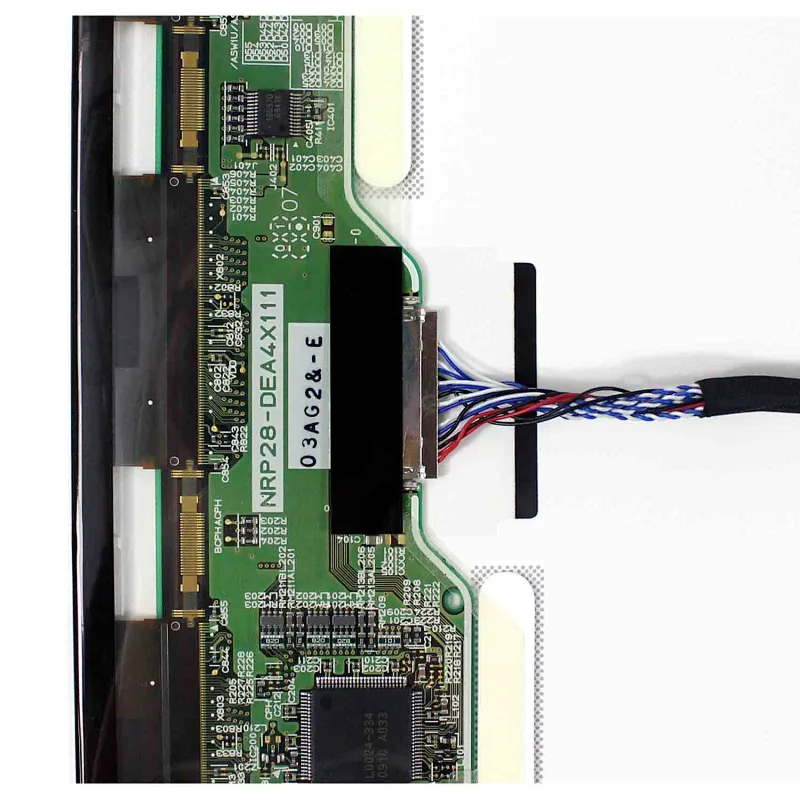

    Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
    Backlight 1 CCFL
    Input Voltage 3.3V (Typ.)

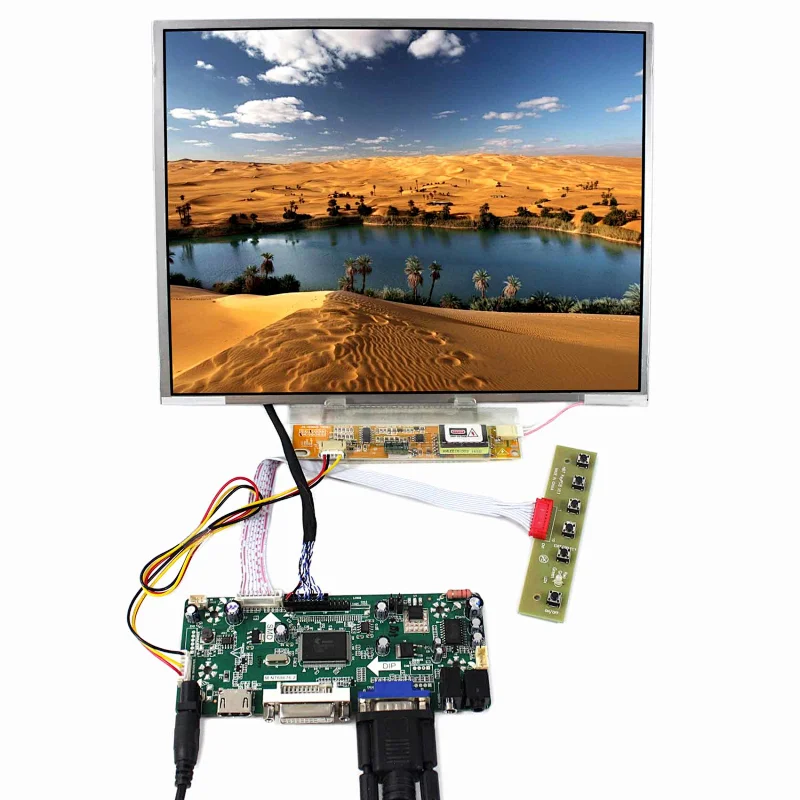

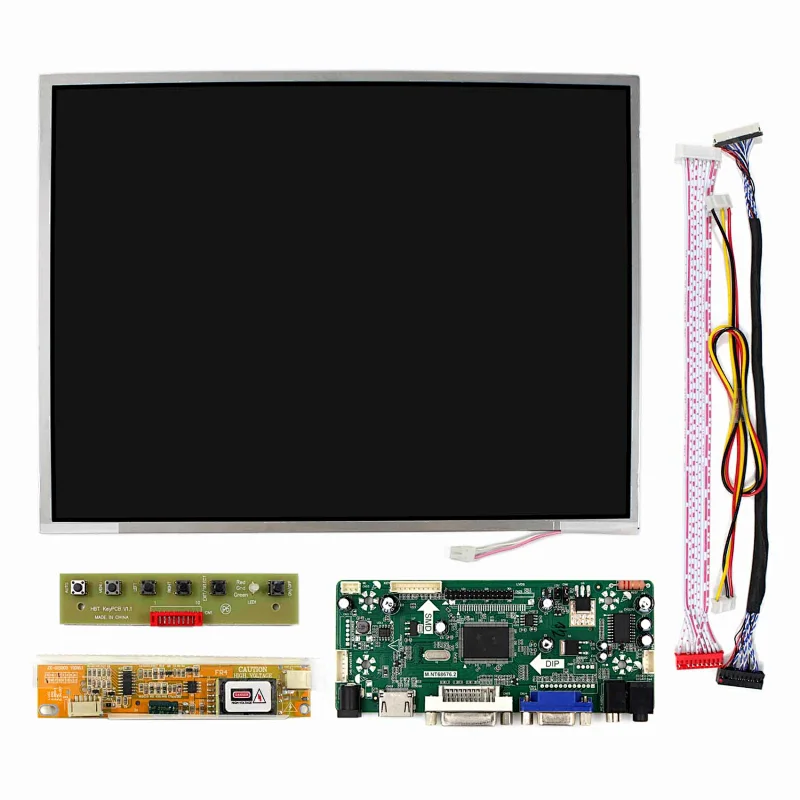

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 12.1inch 1024x768 LCD Screen
    1× LVDS Cable
    1× Inverter Board
    1× Keyboard With Cable
