Model NO.
K002666 VS-TY2660H-V661+AA121TD02 1280X800
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

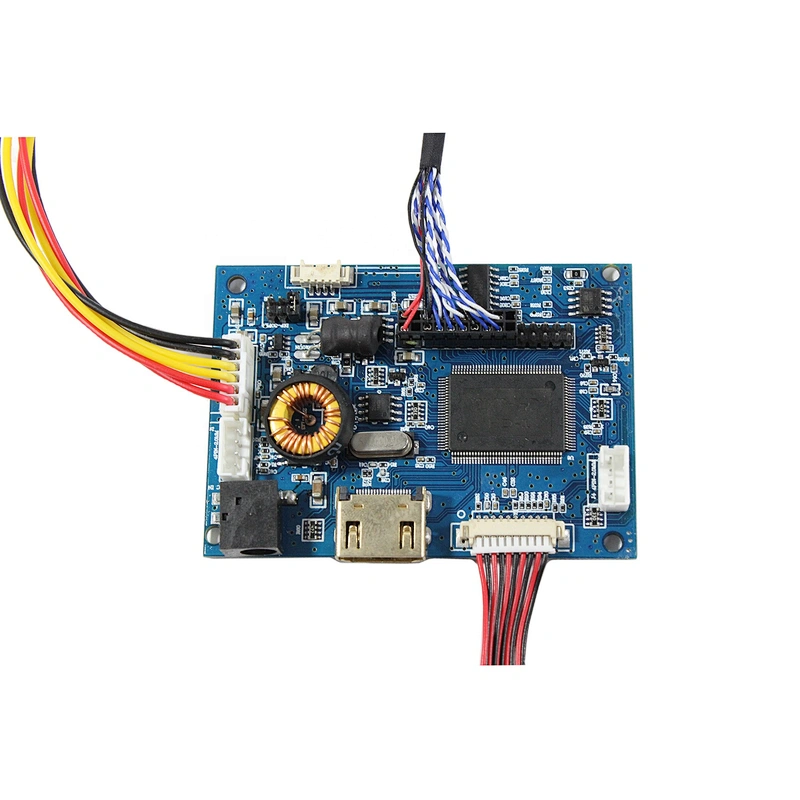

  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 5A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    Audio Input: HDMI
    Audio Output: Speaker (4Pin PH1.0 connector)
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On

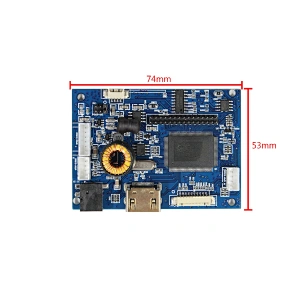

    Board Size: 74mm x 53mm x 12mm
  • 12.1"AA121TD02 1000nit 1280X800 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1280RGB)×800
    Outline Size 283×185.1×10(H×V×D)
    Display Area 216.12 × 163.2 (H×V)
    Brightness 1000 cd/m²(Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 80/80/80/60 (Typ.)(CR10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)

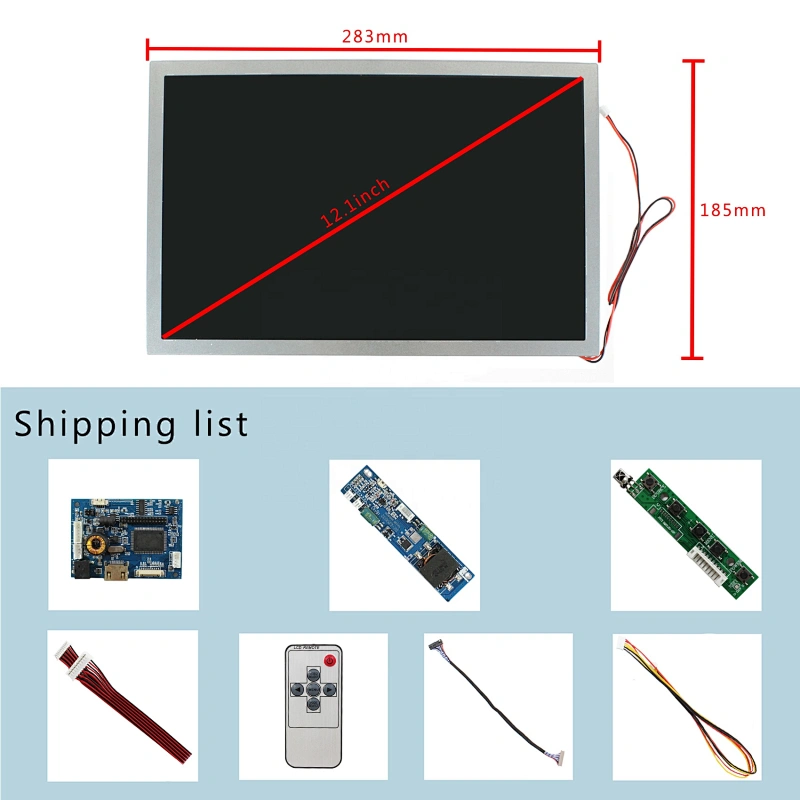

  • Packing list:
    1× HDMI Audio LCD Controller Board VS-TY2660H-V661
    1× 12.1inch AA121TD02 1000nit 1280x800 LCD Screen
    1× LVDS Cable
    1× Backlight Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
