12.1inch AA121TD02 1280x800 high brightness LCD Screen with HD MI+USB+VGA LCD Controller Board

12.1inch AA121TD02 1280x800 high brightness LCD Screen with HD MI+USB+VGA LCD Controller Board

Model NO.:: K002669 VS-TY2660-V899+AA121TD02
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1
Country of Origin:: CHINA
Stock Time:: 3-7days Days

Quantity:

Product Description
Application Description

Size:12.1inch
Part No:AA121TD02
Resolution:1280x800
Outline Size:283x 185.1x10(HxVxD)
Brightness:1000 cd
Contrast Ratio:700:1
Signal Interface:LVDS (1 ch, 6-bit) , 20 pins , Connector
Input Voltage:3.3V
Board Part no:VS-TY2660H-V899
Board Singal:HD MI USB VGA LCD Controller Board
Place of Origin:CN;GUA
Type:TFT LCD with Board
Display Size:12.1inch
Supplier Type:Manufacture
Model Number:K002669 VS-TY2660-V899+AA121TD02
Brand Name:VS

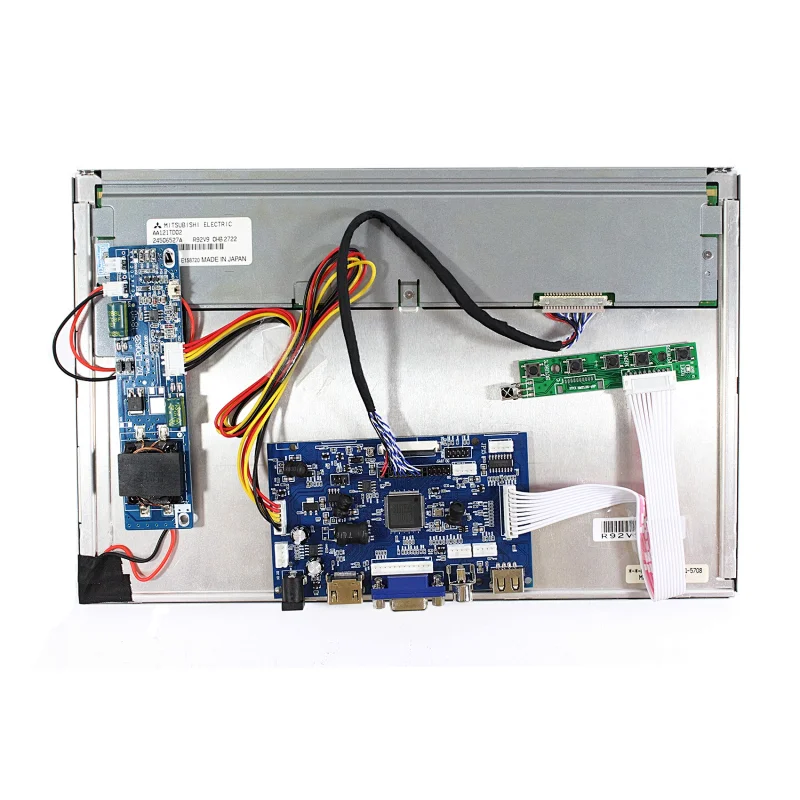

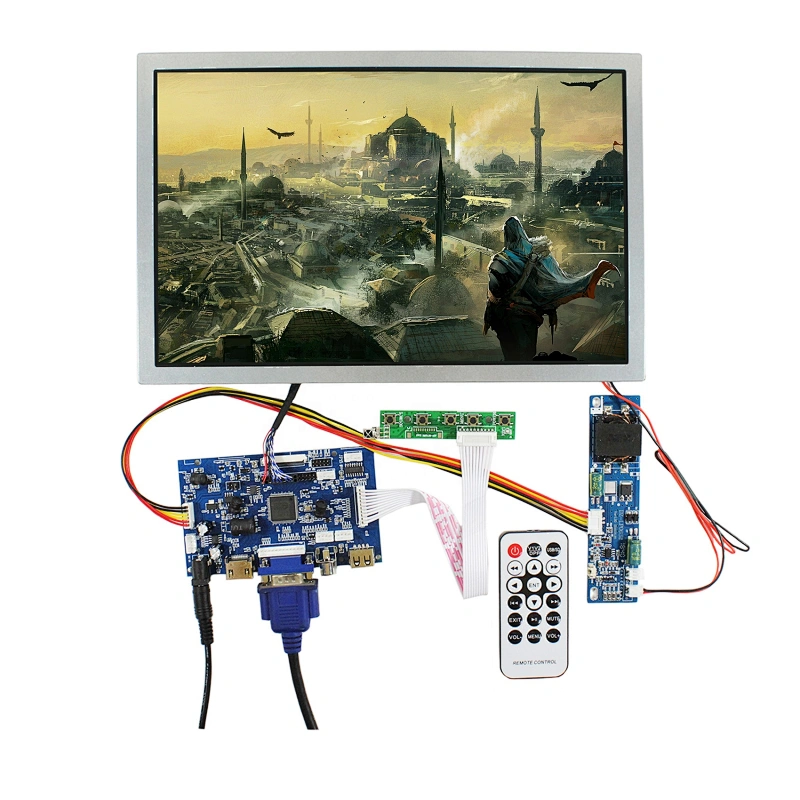

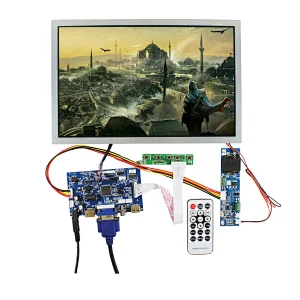

Products Show

Product Description

Product name:	HD MI+USB+VGA LCD Controller Board VS-TY2660H-V899

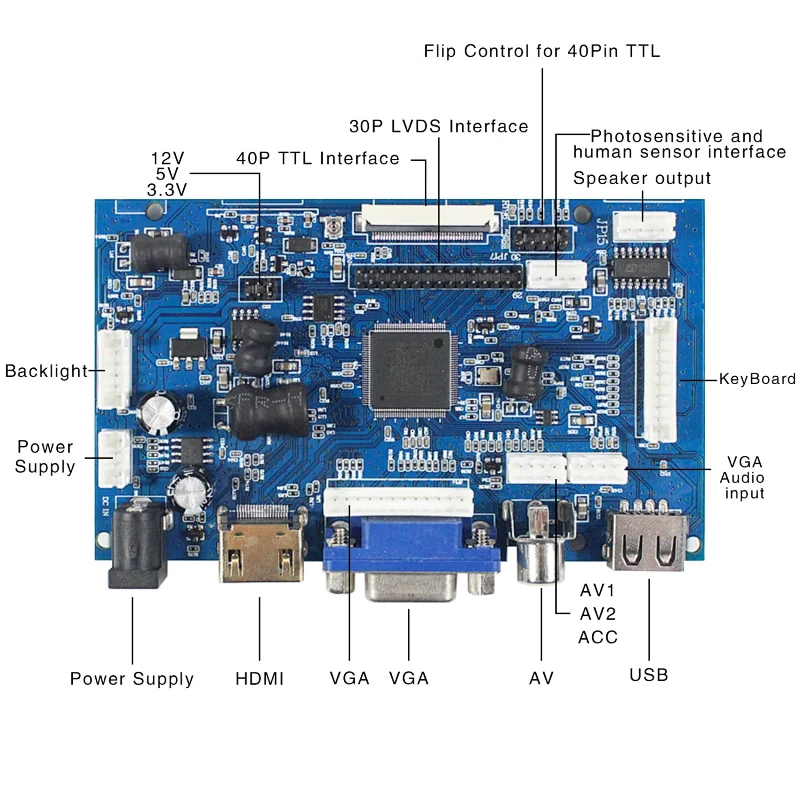

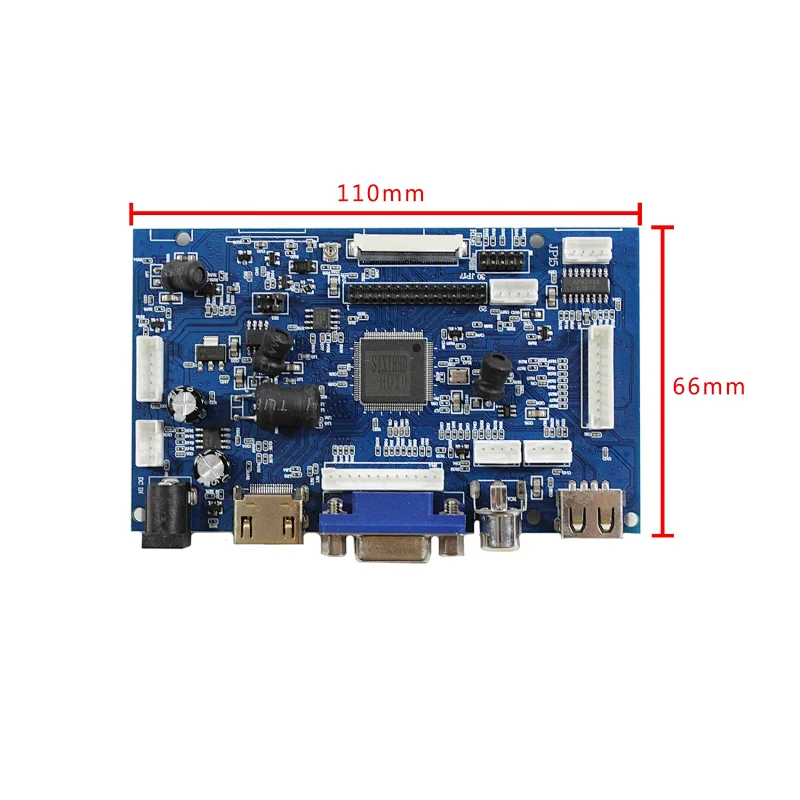

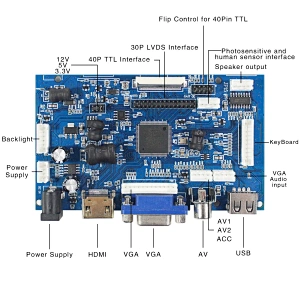

Details:	HD MI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional) Photoresistors Input Support Automatic brightness adjustment External human body induction signal template, automatic startup and shutdown of human body induction Video Input: HD MI VGA AV1 AV2 USB HD MI: Support HD MI 1.4 VGA: Support Audio Input CVBS：2 Channel AV-CVBS Reversing Function: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2 USB: Support Video Playback, Picture Playback, Text Playback Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and plugged into the USB of the driver board, the power can be upgraded, and it will automatically restart after completed) Audio: Speaker Support 8ohm 2W/ 4ohm 2W OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 110mm x 66mm x 12mm

Product Name:	12.1"AA121TD02 1280X800 LCD Screen
Details:	Display Mode TN, Normally White, Transmissive Resolution 1280RGB)×800 Outline Size 283× 185.1×10(H×V×D) Display Area 216.12 × 163.2 (H×V) Brightness 1000 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 80/80/80/60 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector Backlight WLED Input Voltage 3.3V (Typ.)

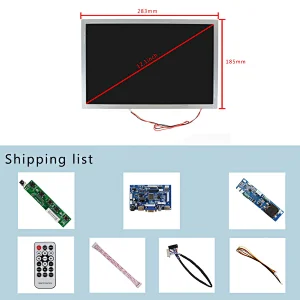

Packing list:	1×HDMI+USB+VGA LCD Controller Board VS-TY2660H-V899 1× 12.1inch AA121TD02 1280x800 LCD Screen 1× LVDS Cable 1× Backlight Cable 1× Keyboard With Cable 1× Remote Control (Battery Not included)
