12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers
12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers

12.1Inch Lcd monitor N121X5 LTN121XT HT121X01 1024x768 With Controllers

Model NO.
K000324 M.NT686762A+12.1inch 1024x768 lcd
Quantity:

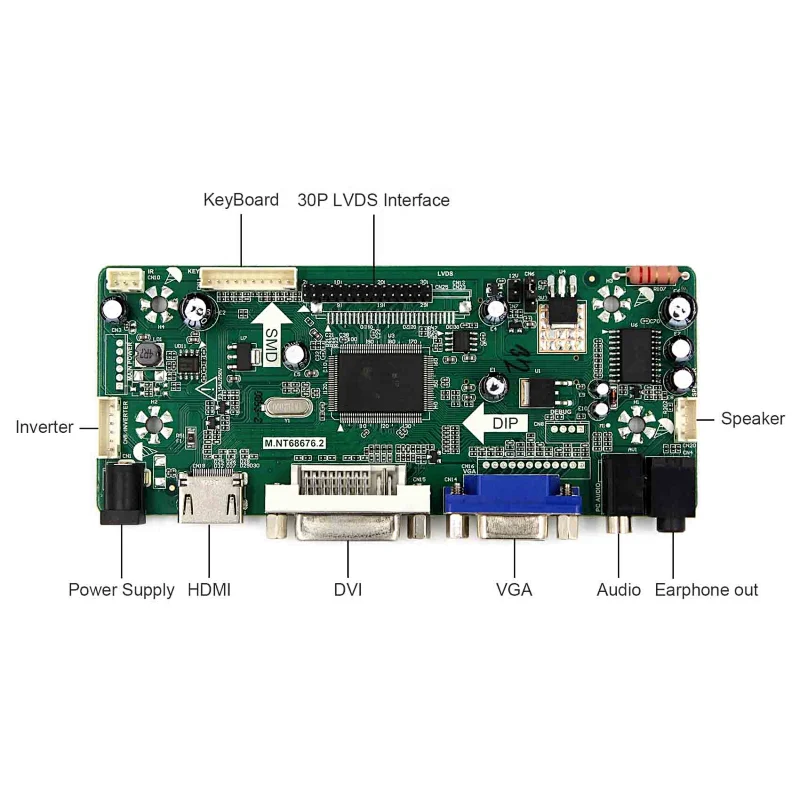

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm
  • 12.1"1024X768 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024（RGB)×768
    Outline Size 261× 198×5 (H×V×D)
    Display Area 246 × 184.5 (H×V)
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 400:1 (Typ.) (TM)
    Viewing Angle 45/45/15/45 (Typ.)(CR≥10) [Left / Right / Up / Down]

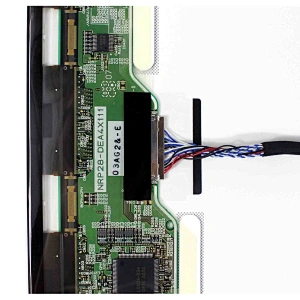

    Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
    Backlight 1 CCFL
    Input Voltage 3.3V (Typ.)

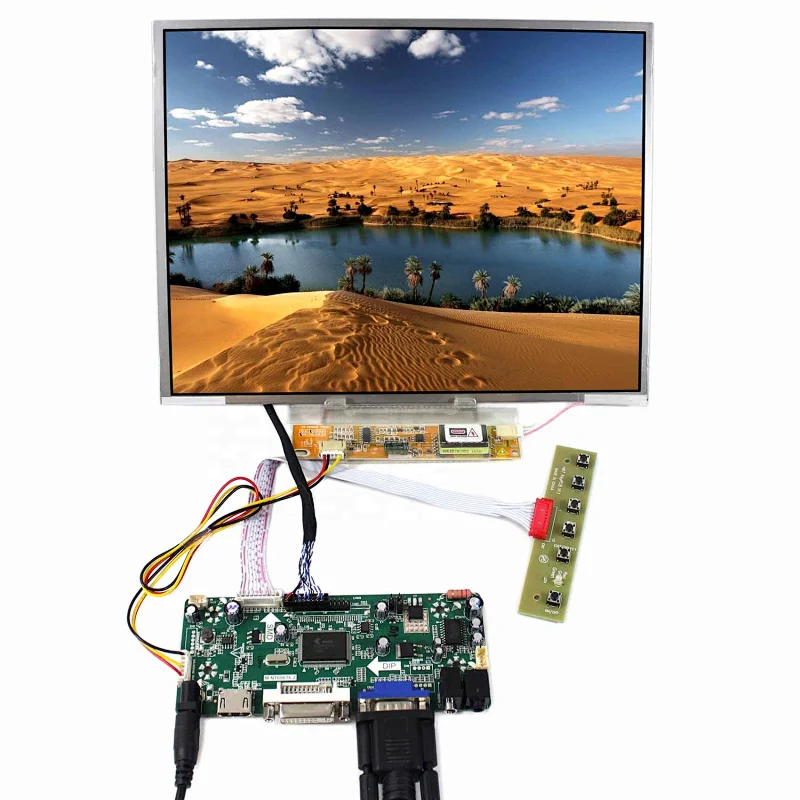

  • Packing list :

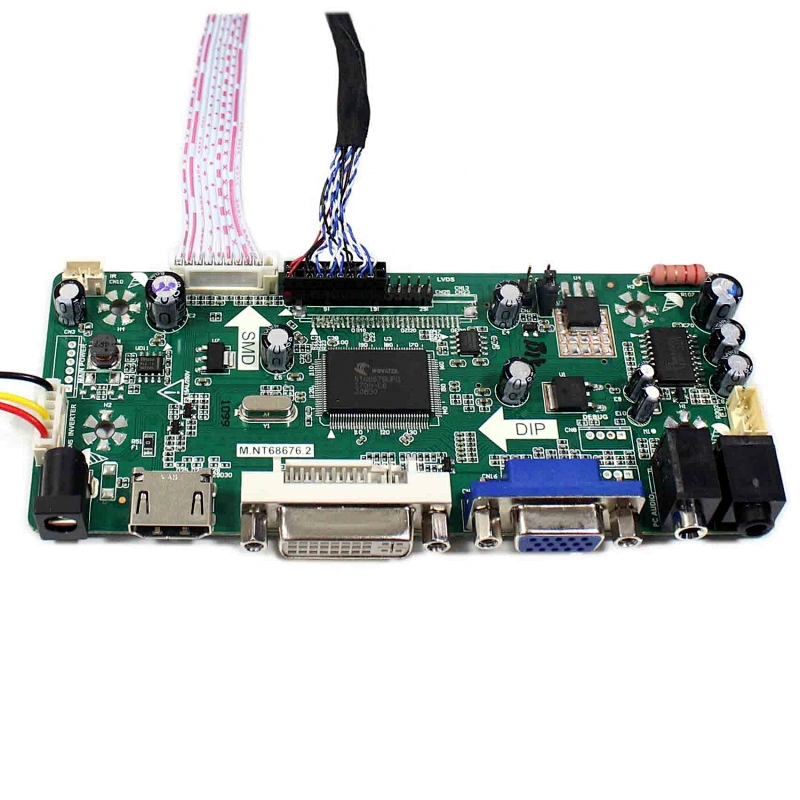

    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 12.1inch 1024x768 LCD Screen
    1× LVDS Cable
    1× Inverter Board
    1× Keyboard With Cable
