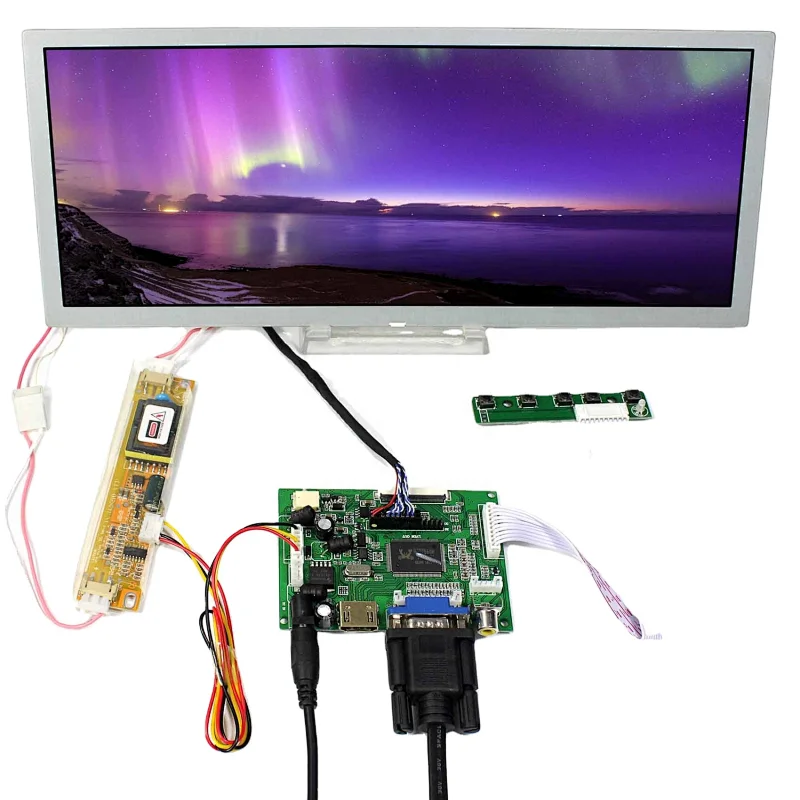

12.3" LQ123K1LG03 1280X480 LCD Screen with LVDS Board H DMI VGA 2AV for Industrial Application

Model NO.
K001048 VS-TY2662-V1+LQ123K1LG03
Delivery:
EXW or FOB
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

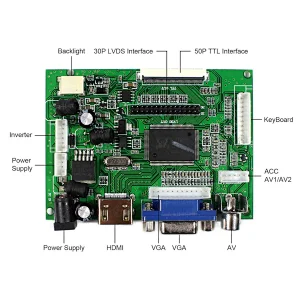

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:91mm x 66mm x 12mm
  • 12.3"LQ123K1LG03 1280X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1280RGB)×480
    Outline Size 312.4 ×130.4×8 (H×V×D)
    Display Area 291.84 × 109.44 (H×V)
    Brightness 330 cd/m² (Typ.)
    Contrast Ratio 400:1 (Typ.) (TM)
    Viewing Angle 65/65/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface  20 pins LVDS (1 ch, 8-bit) , Connector
    Backlight CCFL
    Input Voltage 3.3V (Typ.)

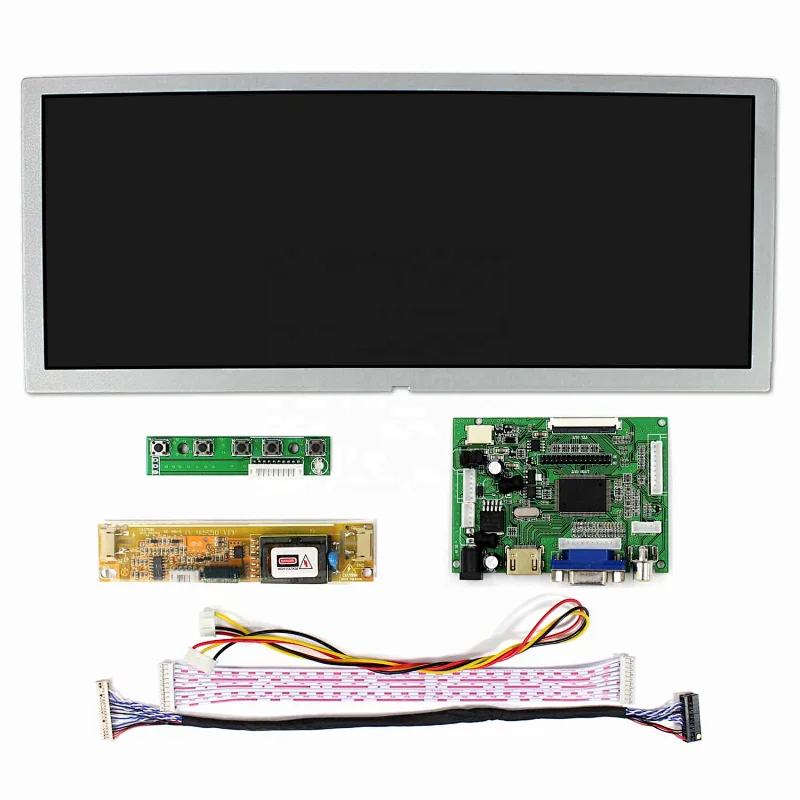

  • Packing list :
    1×HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 12.3inch LQ123K1LG03 1280X480 LCD Screen
    1× Converter Board
    1× LVDS Cable
    1× Keyboard With Cable
