13.3" 1920x1080 IPS LCD Screen with LCD Controller Board Kit

Model NO.
VS-RTD2665H-V1+ N133HSE-EB2(K001651)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:Lcm
  • MODEL NO:N133HSE-EB2
  • Dots Format:1920x1080
  • lcd backlight:CCFL
  • LVDS Interface:edp, 30pins
  • Input Voltage:3.3V (Typ.)
  • Item:lcd controller board
  • Input power:12v 2a
  • Place of Origin:CN;GUA
  • Display Size:13.3inch
  • Model Number:VS-RTD2665H-V1+ N133HSE-EB2(K001651)
  • Brand Name:VS

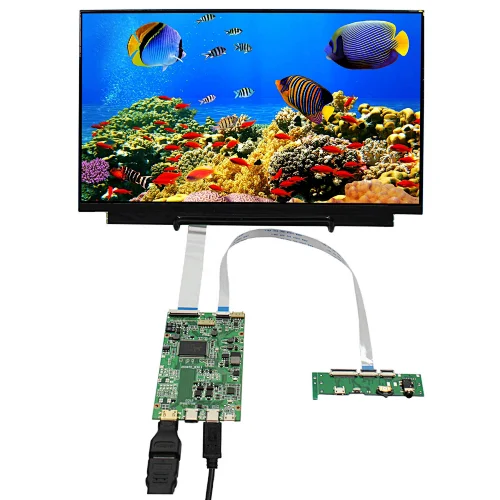

LCD Controller Board Kit VS-RTD2665H-V1with 13.3"1920x1080 IPS LCD Screen N133HSE-EB2

Product Description

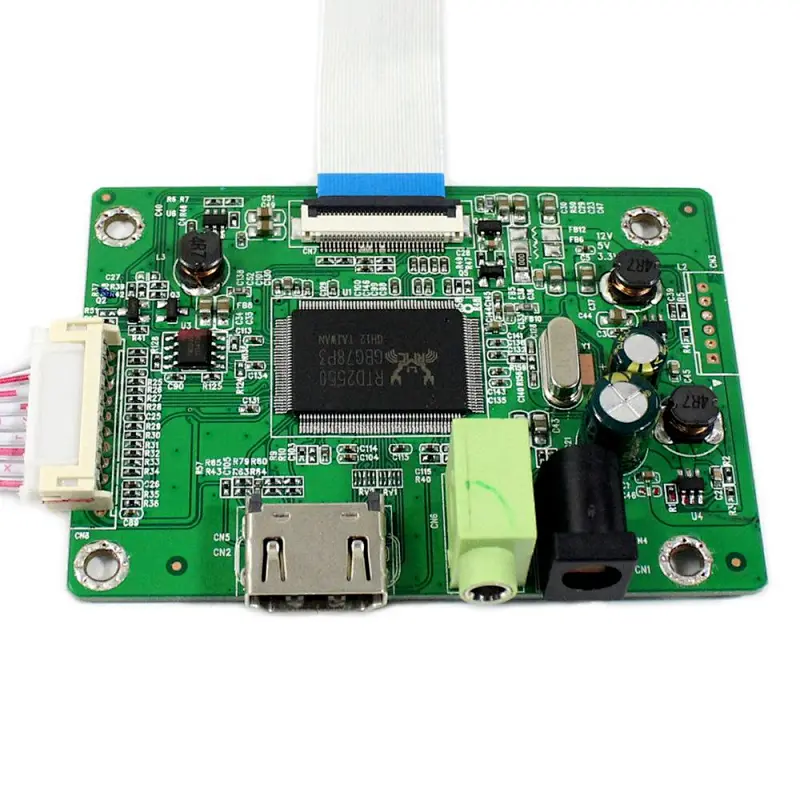

LCD Controller Board VS-RTD2556H-V1:

600

Driver Board supports dynamic contrast control, headphone input and Digital volume control simultaneously.

Board Size:77mm x 55mm x 16mm


Power Supply: 12V more than 2A

OSD Language: English, French, German, Italian, Spanish, Japanese, Korean and so on

Video Input: Interface HDMI(T.M.D.S)


Operation temperature::0~50℃

Panel Interface:0.5mm 30P FFC Connector

Key Function: Auto, Menu, UP, Down, Left, Right, Power

Input Output Connector: 30FFC connector EDP Output Port

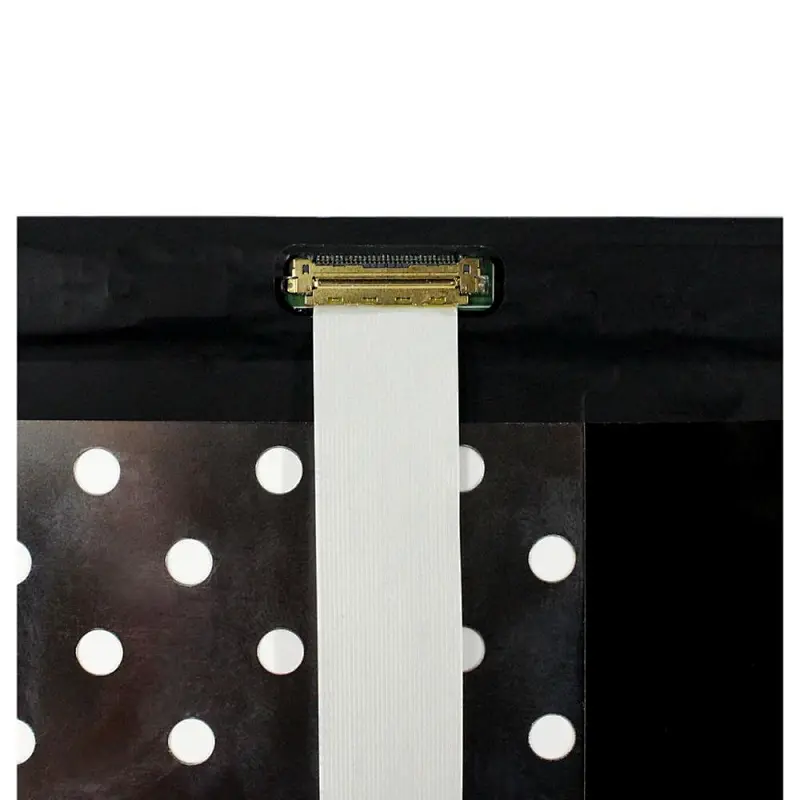

13.3"LCD Screen N133HSE-EB2:

Display Mode AAS, Normally Black, Transmissive

Resolution 1920RGB)×1080

Outline Size 303.35(W)×187.55(H) ×5.2(D) mm

Display Area 293.76(W)×165.24(H) mm

Brightness 250 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

Packaging & Shipping

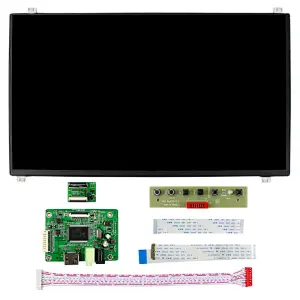

1× LCD Controller Board VS-RTD2556H-V1

1× 13.3inch N133HSE-EB2 1920X1080 IPS LCD Screen

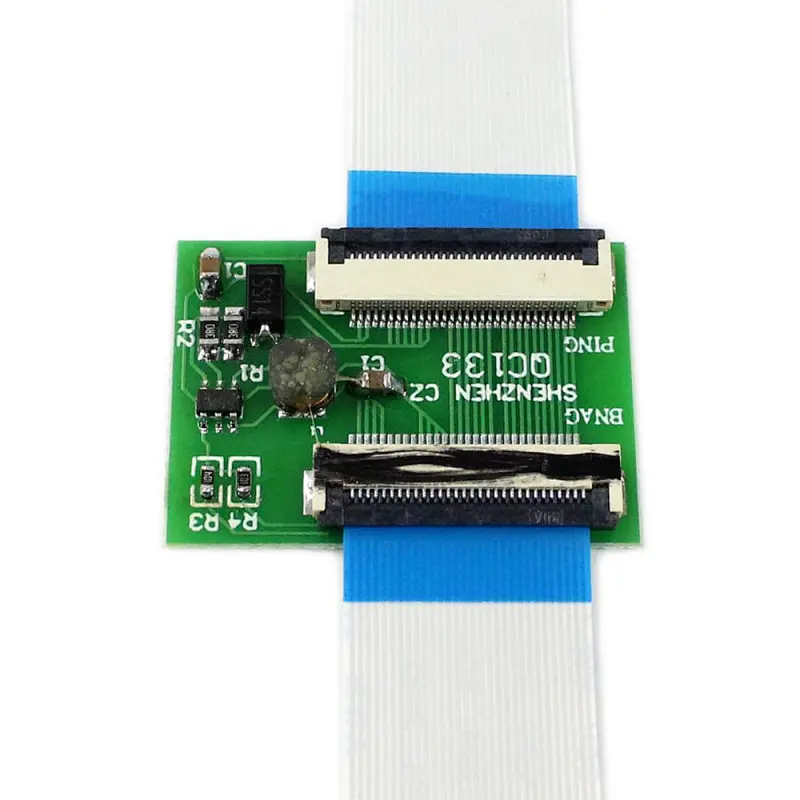

1× Converter Board

1× Signal Cable

1× Keyboard with Wire

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

Company Information

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
