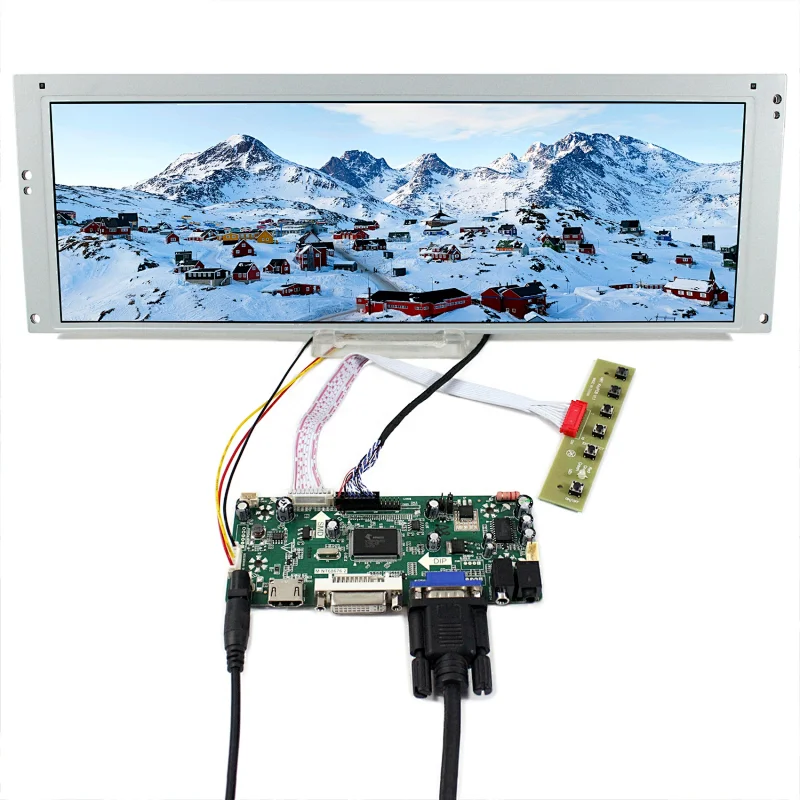

14.9" LTA149B780F 1280X390 LCD Screen wtih Game Board for Game Monitor

Model NO.
K001669 M.NT68676+14.9inch LTA149B780F 1280x390
Delivery:
EXW or FOB
Minimum order quantity:
1 set
Supply Ability:
1000 set / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 53mm x 17mm
  • 14.9"LTA149B780F1280X390 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1280RGB)×390
    Outline Size 407.5 × 136×20.5(H×V×D)
    Display Area 360.94 × 109.98 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 80/80/45/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)

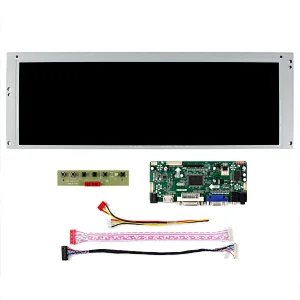

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 14.9inch LTA149B780F 1280X390 LCD Screen
    1× LVDS Cable
    1× Converter Board
    1× Keyboard With Cable
