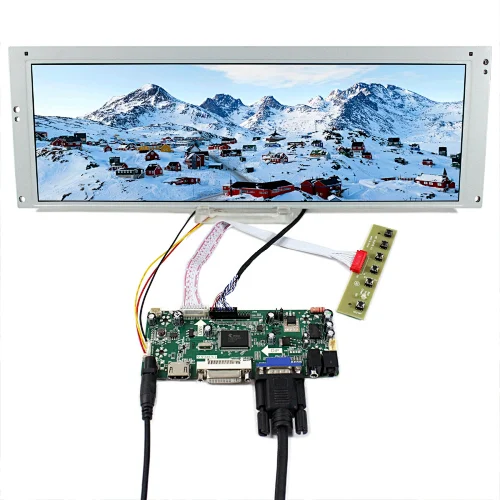

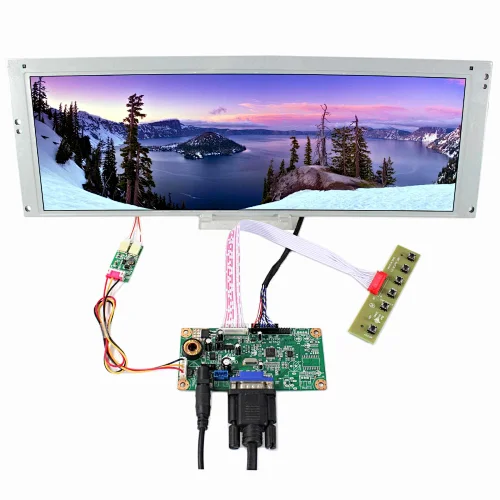

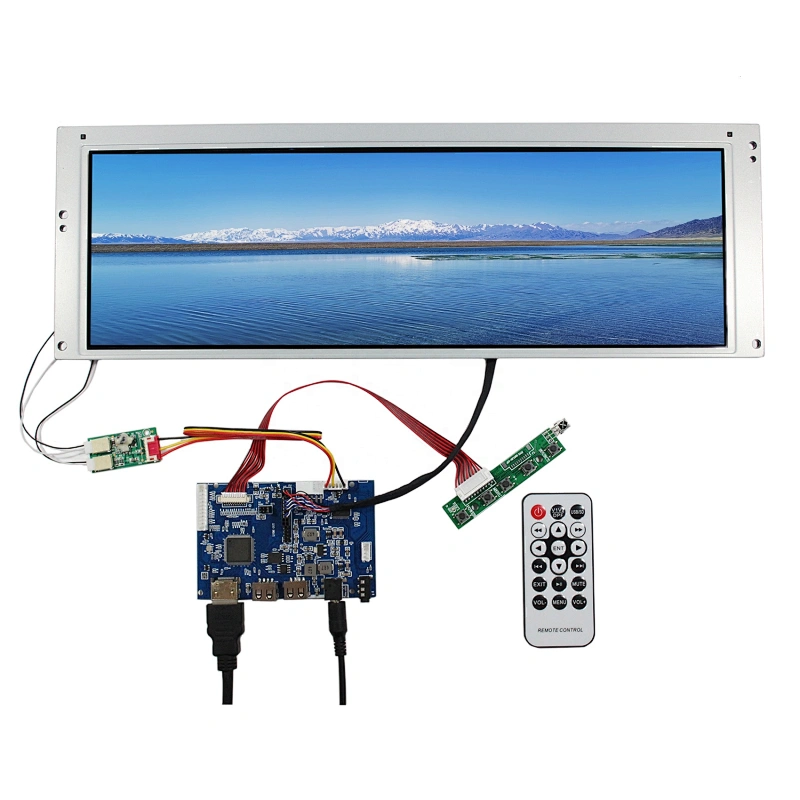

14.9" tft 1280x390 lcd LTA149B780F with H DMI VGA USB LCD Controller Board

Model NO.
VS-TY2660H-V818+ LTA149B780F K002517
EXW or FOB ShenZhen
Minimum order quantity:
Country of Origin:
Stock Time:
3-7days Days
  • Type:TFT
  • MODEL NO:LTA149B780F
  • Dots Format:1280x390
  • Backlight Type:CCFL
  • Operation temperature:-10 to 60 Degree
  • Size:14.9inch
  • Input:H DMI VGA, USB
  • Interface:LVDS
  • Place of Origin:CN;GUA
  • Display Size:14.9inch
  • Model Number:K002517 VS-TY2660H-V818+ LTA149B780F
  • Brand Name:VS
Products Show
Product Description
Product name:

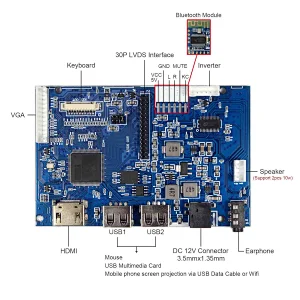

 HDMI+2USB+VGA LCD Controller Board VS-TY2660H-V818
HDMI USB Android LCD Controller Board Work for LVDS 40Pin TTL LCD Screen

Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI1.4 USB

USB Port:

Support Video Play

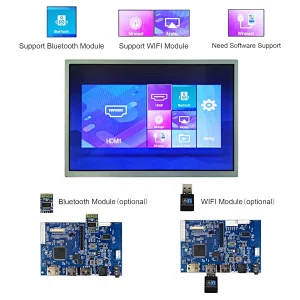

Support WIFI Module

Support Connect Keyboard and mouse

Support 5Vdc 500mA output

Support OS Android Screen projection via USB Cable or wifi Module

Audio Input: HDMI

Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)

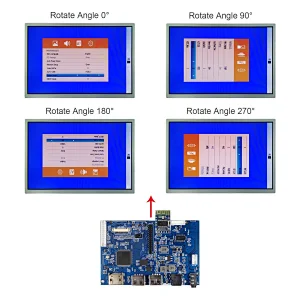

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 74mm x 53mm x 12mm
Product Name:
14.9"LTA149B780F 1280X390 LCD Screen
Display Mode TN, Normally White, Transmissive

Resolution 1280RGB)×390

Outline Size 407.5 × 136×20.5(H×V×D)

Display Area 360.94 × 109.98 (H×V)

Brightness 400 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 80/80/45/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

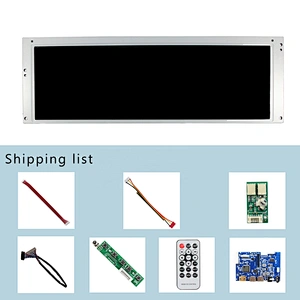

Packing list:

1×HDMI+2USB+VGA LCD Controller Board VS-TY2660H-V818

1× 14.9inch LTA149B780F 1280X3900 LCD Screen

1× Converter Board

1× LVDS Cable

1× Keyboard With Cable
