15.0" G150XGE-L04 1024X768 high brightness LCD Screen with HD MI LCD Controller Board

Model NO.
K002671 VS-TY2660H-V661+G150XGE-L04
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

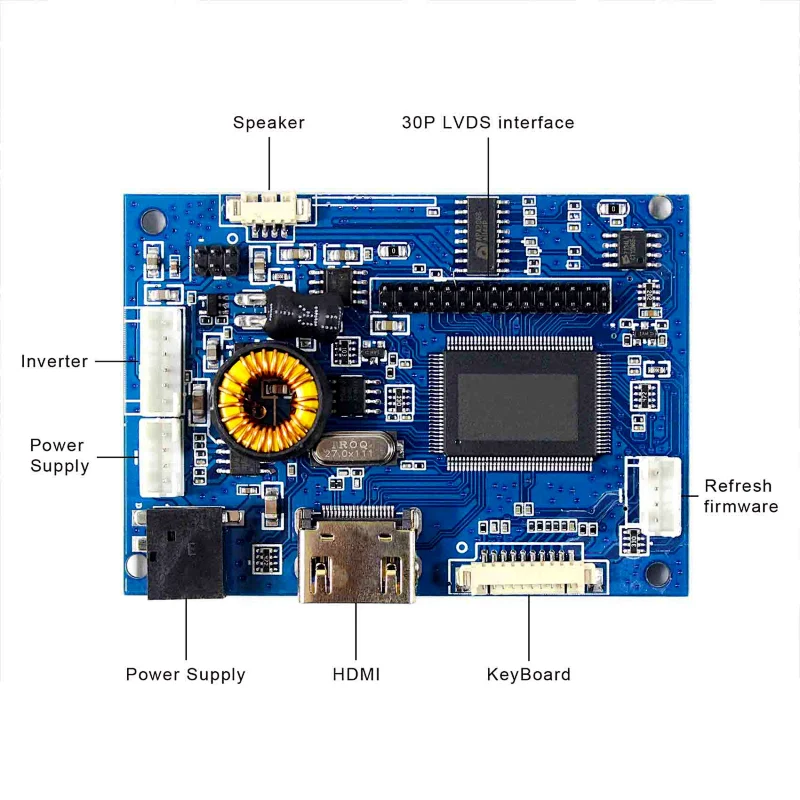

  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On

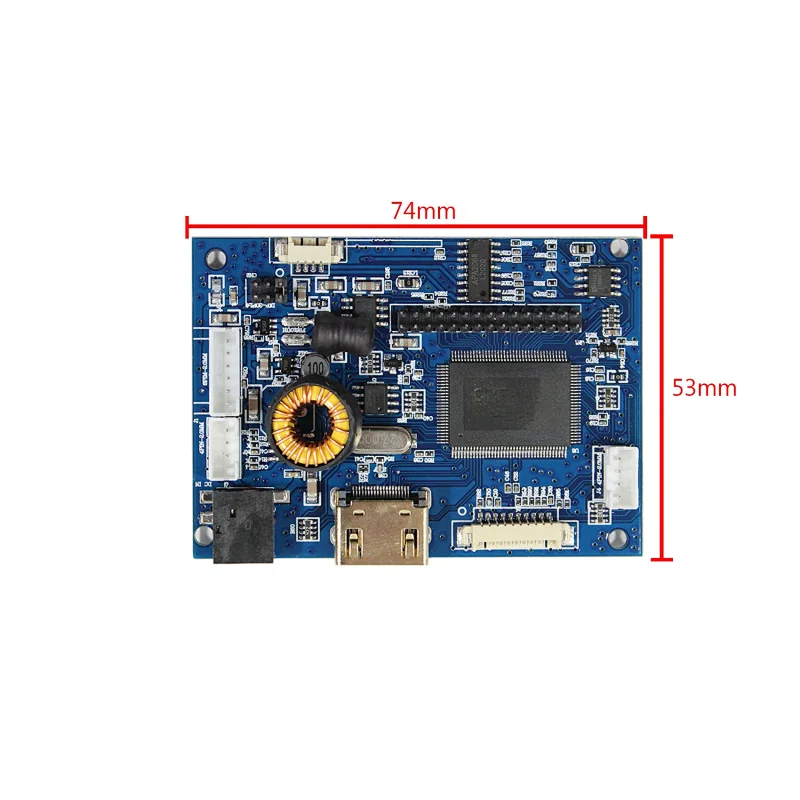

    Board Size: 74mm x 53mm x 12mm
  • 15.0"G150XGE-L04 1024X768 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×768
    Outline Size 326.5×253.5×12(W×H×D)
    Display Area 304.128 ×228.096(W×H)
    Brightness 1000 cd/m²(Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 80/80/70/70 (Typ.)(CR10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)

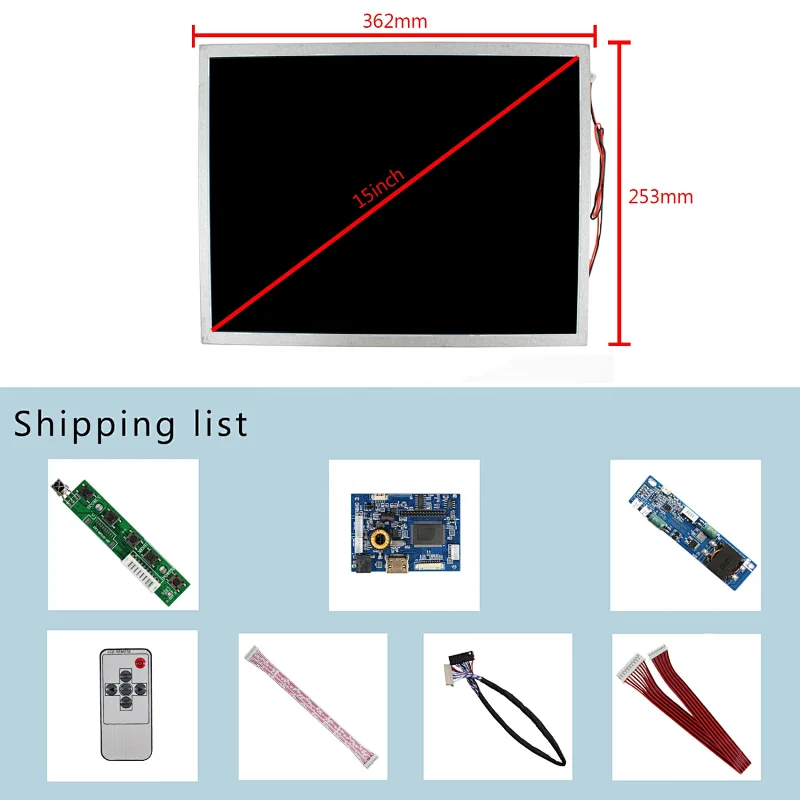

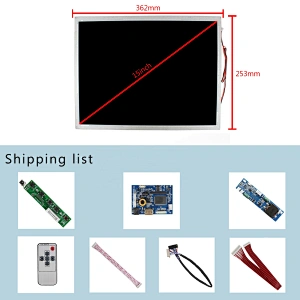

  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V1
    1×15.0"G150XGE-L04 1024X768 LCD Screen
    1× LVDS Cable
    1× Backlight Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
