15.0" G150XGE-L04 LCD Screen High brightness 1000nits 1024*768 15inch TFT LCD

Model NO.
K002670 M.NT68676+G150XGE-L04 1024X768
Delivery:
EXW or FOB
Minimum order quantity:
1 set
Supply Ability:
1000 set / Day
Country of Origin:
CHINA
Stock Time:
3 Days
Quantity:
  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On

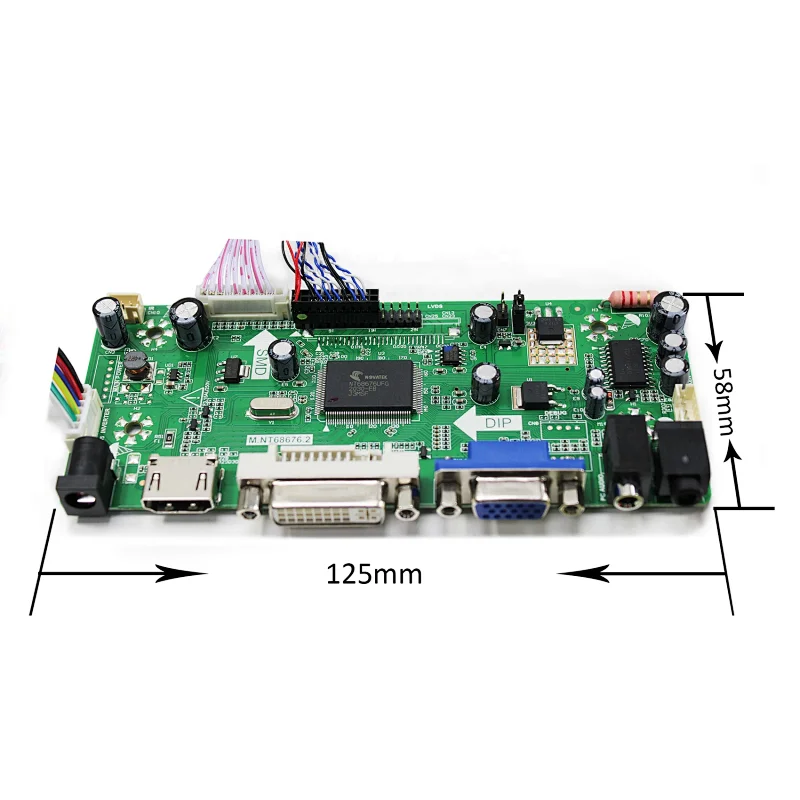

    Board Size: 125mm x 58mm x 17mm
  • 15.0"G150XGE-L04 1024X768 1000nit LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×768

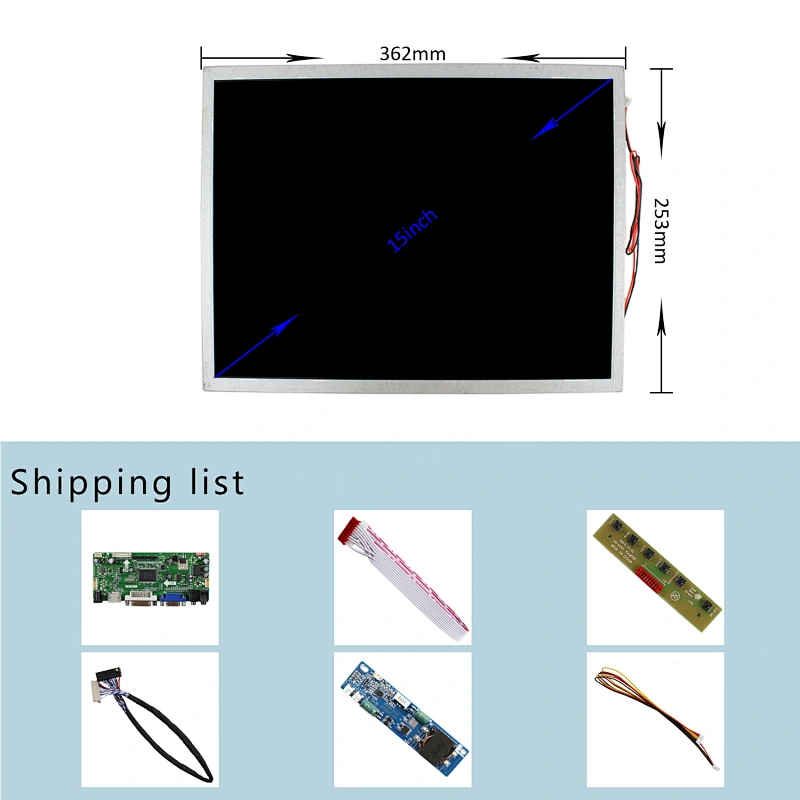

    Outline Size 326.5×253.5×12(W×H×D)
    Display Area 304.128 ×228.096(W×H)
    Brightness 1000 cd/m²(Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 80/80/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

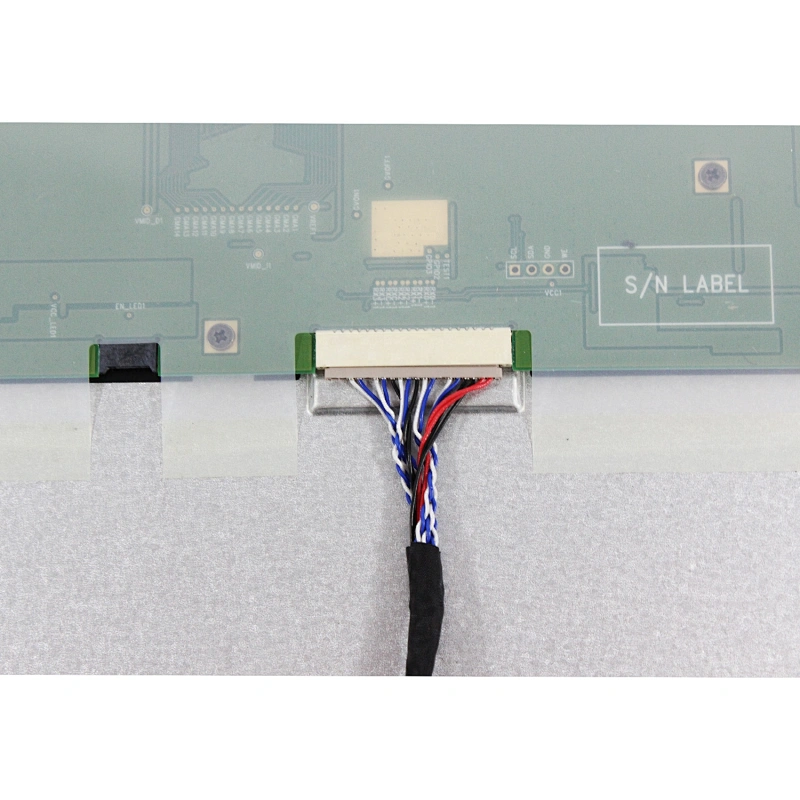

    Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)

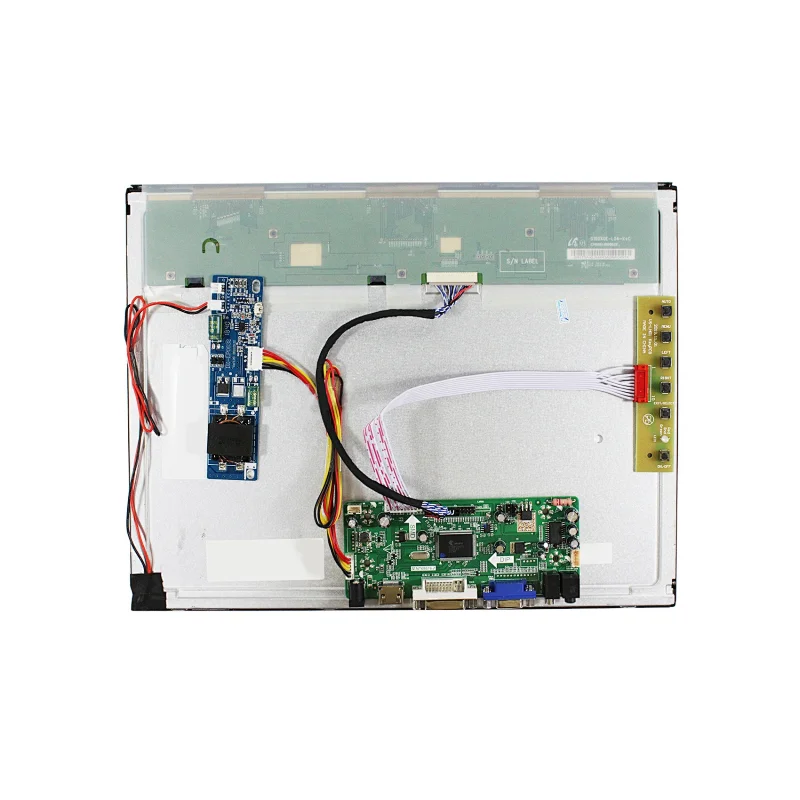

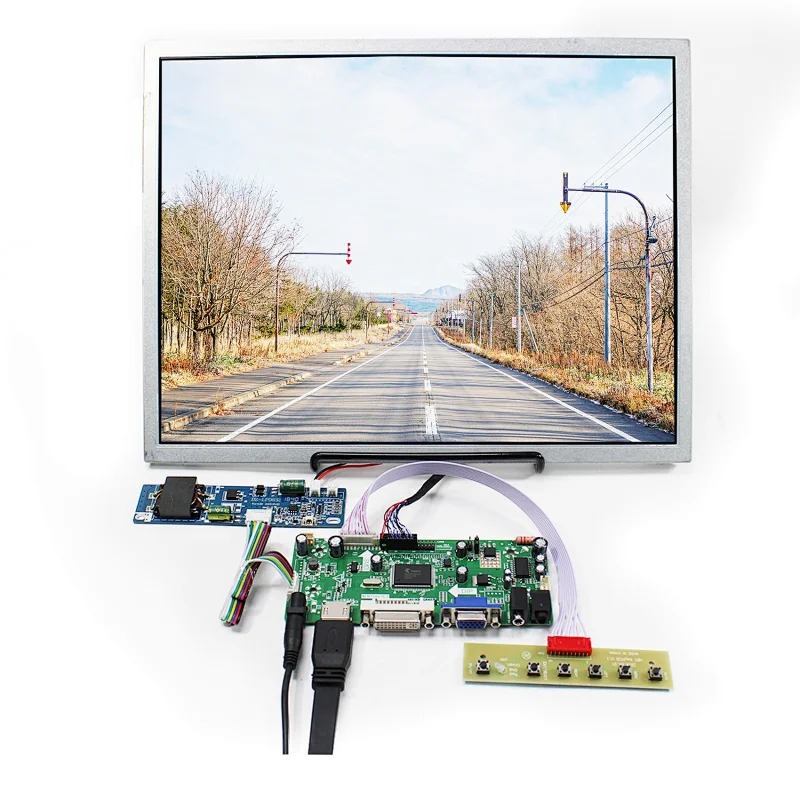

  • Packing list:
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1×15.0"G150XGE-L04 1024X768 1000nit LCD Screen
    1× Inverter Board
    1×Backlight Cable
    1× Keyboard With Cable
