15.4inch 1280X800 LVDS 30 pins LCD Screen with HD-MI LCD Controller Board

Model NO.
K002785 VS-N5V3.1H+30p+15.4inch lcd
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

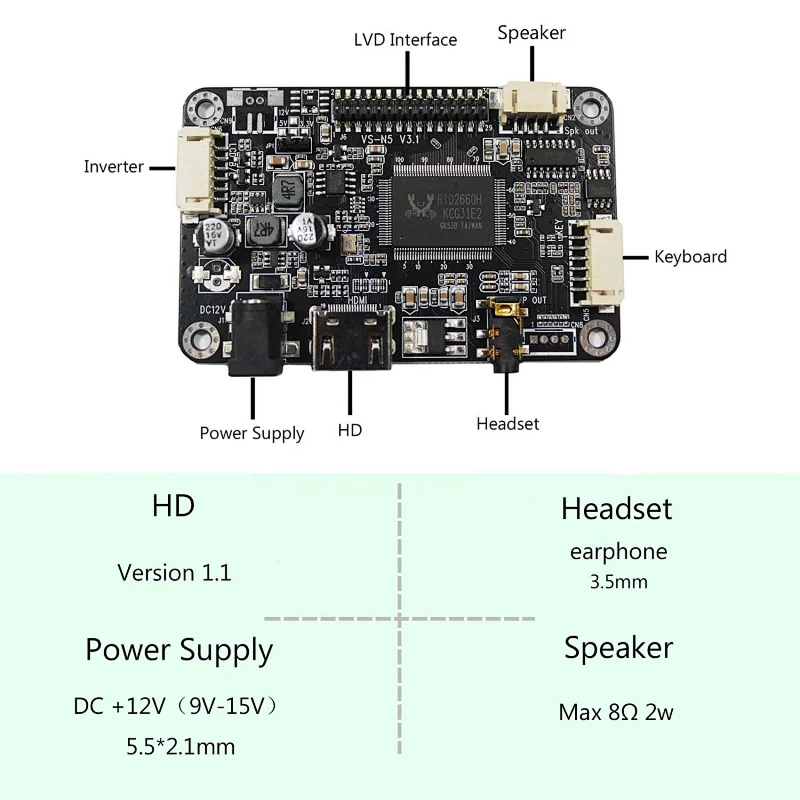

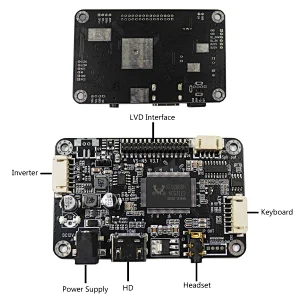

  • LCD Controller Board:
    HD-MI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HD-MI
    Audio Input: HD-MI
    Audio Output: Speaker earphone
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On

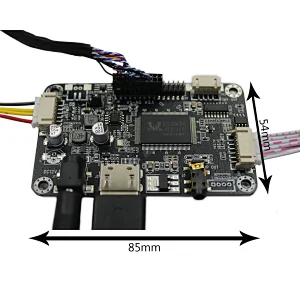

    Board Size: 85mm x 54mm x 14mm
  • 15.4"1280X800 LCD Screen:
    Display Mode  TN, Normally White, Transmissive
    Resolution 1280RGB)×800
    Outline Size 344 × 242.5× 6(H×V×D)
    Display Area 331.56× 207.225 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 400:1 (Typ.) (TM)
    Viewing Angle 60/60/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (2 ch, 6-bit) , Connector , 30 pins
    Backlight  WLED
    Input Voltage  3.3V (Typ.

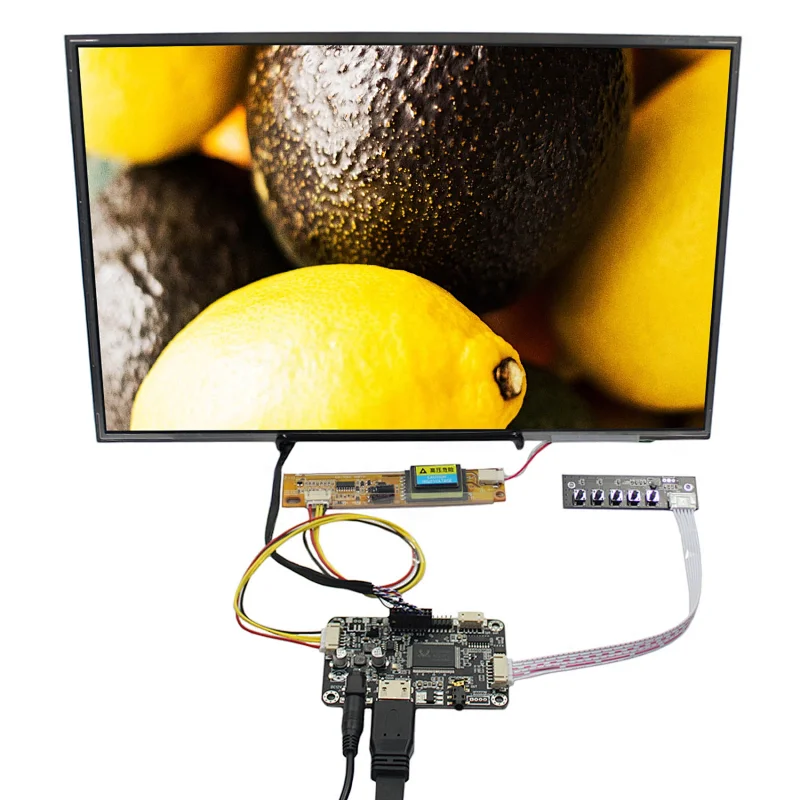

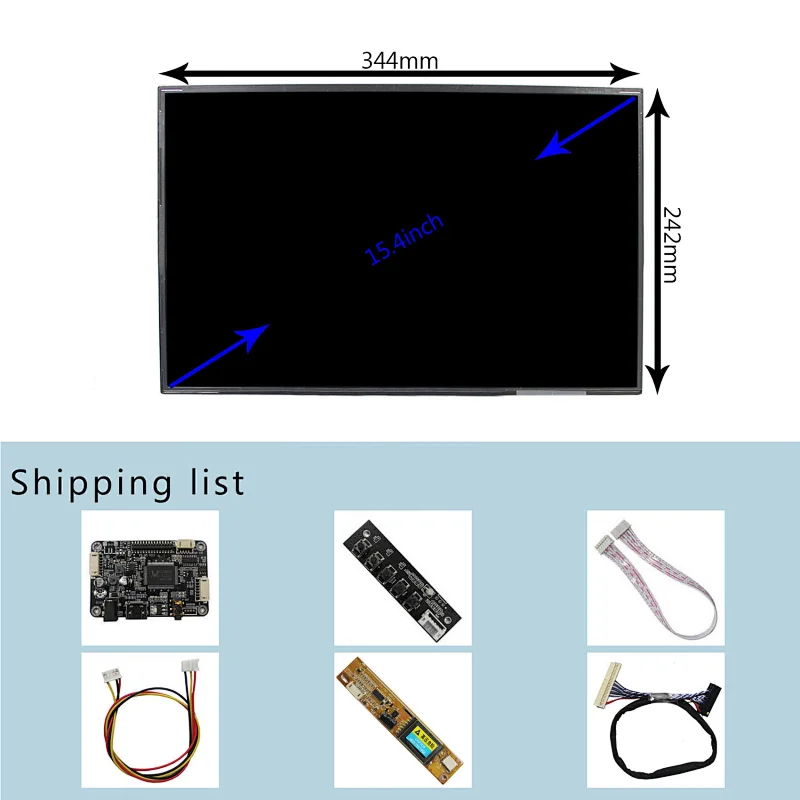

  • Packing list :
    1× HDMI Audio LCD Controller Board
    1×15.4inch 1280x800 (One of B154EW01/02/03/04/06/08 LTN154AT01/07/10 LTN154W1-L01 LTN154X3-L01 N154I3-L02  LP154W01 LP154WX3 LP154WX4 LP154W01 N154I2)
    1× Inverter Board
    1× LVDS Cable
    1× Keyboard With Cable
