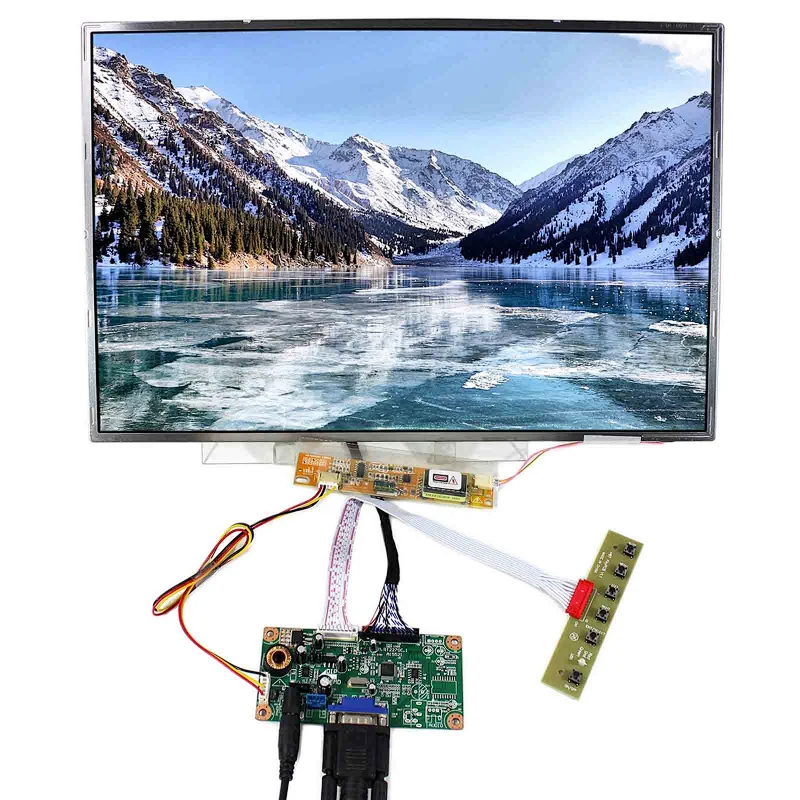

17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board
17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board
17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board
17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board
17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board
17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board
17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board
17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board
17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board

17 Inch LCD Panel 1920x1200 CCFL Backlight With VGA Board

Model NO.:
K001639 M.RT2270C.1+17.1inch 1920x1200 LCD
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
1000.0 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • Size:17 Inch
  • Resolution:1920*1200
  • Interface:LVDS
  • Backlight:1 CCFL
  • Connector:30pins
  • Product Name:TFT lcd with vga board
  • Display mode:Normal White
  • Brightness:250cd/m2
  • LCD Controller Board:RT2270
  • Place of Origin:CN;GUA
  • Display Size:for 17inch
  • Model Number:M.RT2270C.1+17.1inch 1920x1200 LCD(K001639)
  • Brand Name:VS

VGA LCD Controller Board M.RT2270C.1 with 17.1inch 1920x1200 LCD panel

LCD Panel such as:

LP171WU1 LP171WU2 LP171WU3 LTN170WU LTN170U1 LTN170U2 LTN170CT01 B170UW01 LTN170CT07

Product Description

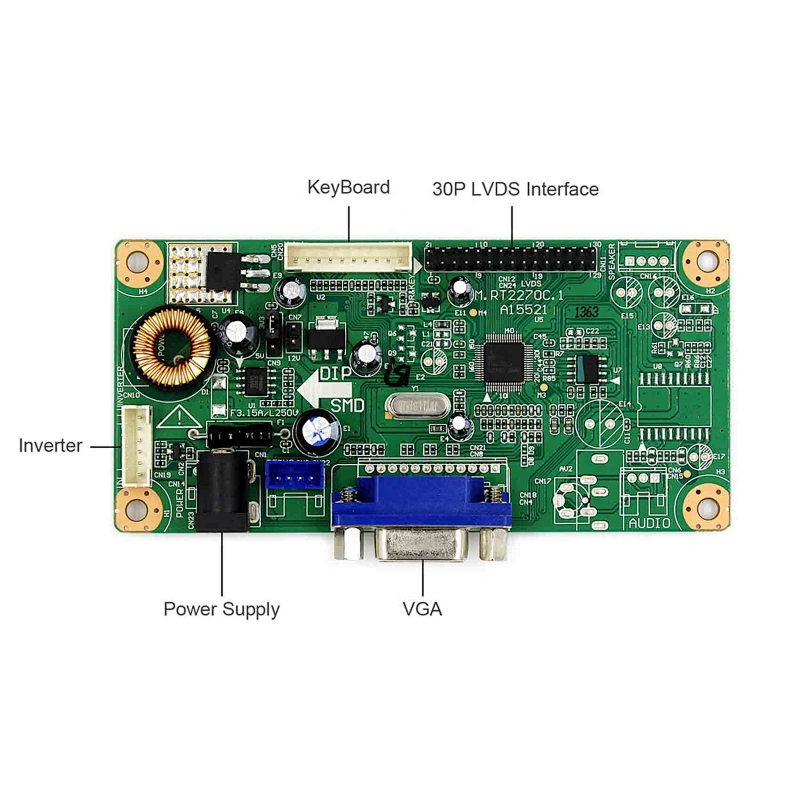

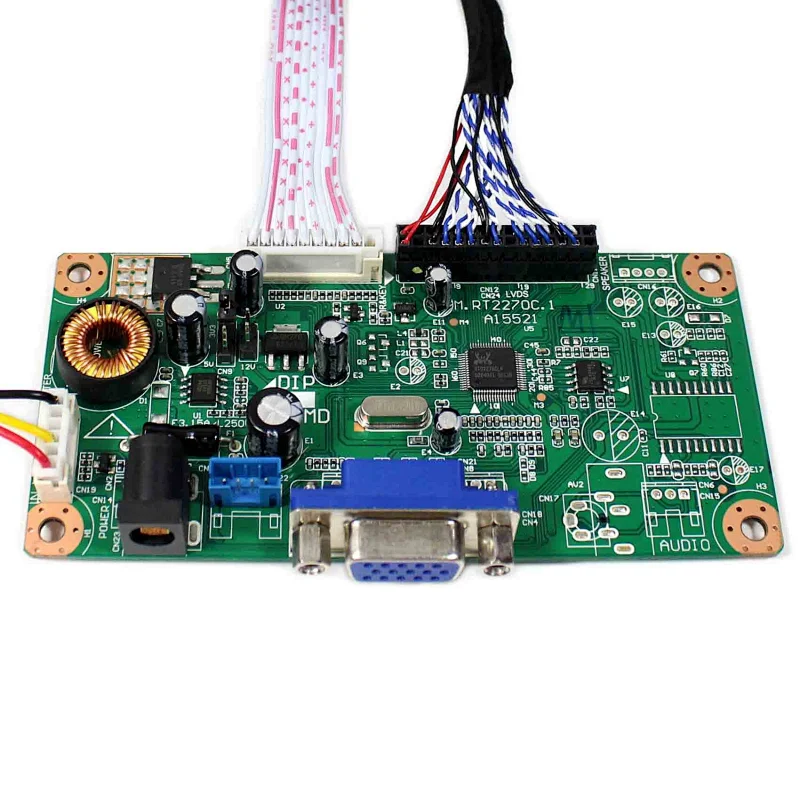

VGA LCD Controller Board M.RT2270C.1:

It can support LED/LCD panels which resolution is up to 1920X1080.

it supports Dynamic Contrast Control, headphone input and Digital volume control Simultaneously.

Video Input: VGA DVI

Size: 107mm(L)*51.5mm(W)*18mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, (optional) And So On

KEY FUNCTION: POWER,MENU,VOL+,VOL-,AUTO/EXIT

Operation temperature: 0~40°C.

Standby Power Consumption < 0.2W(Board Only)

Panel Interface: Single/Dual LVDS (8bit)

17"1920X1200 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1920RGB)×1200

Outline Size 382.2 ×243.3×6.6(H×V×D)

Display Area 367.2 × 233.5 (H×V)

Brightness 250 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface
LVDS (2 ch, 6-bit) , Connector , 30 pins

Backlight 1 CCFL

Input Voltage 3.3V (Typ.)

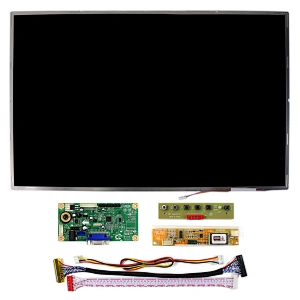

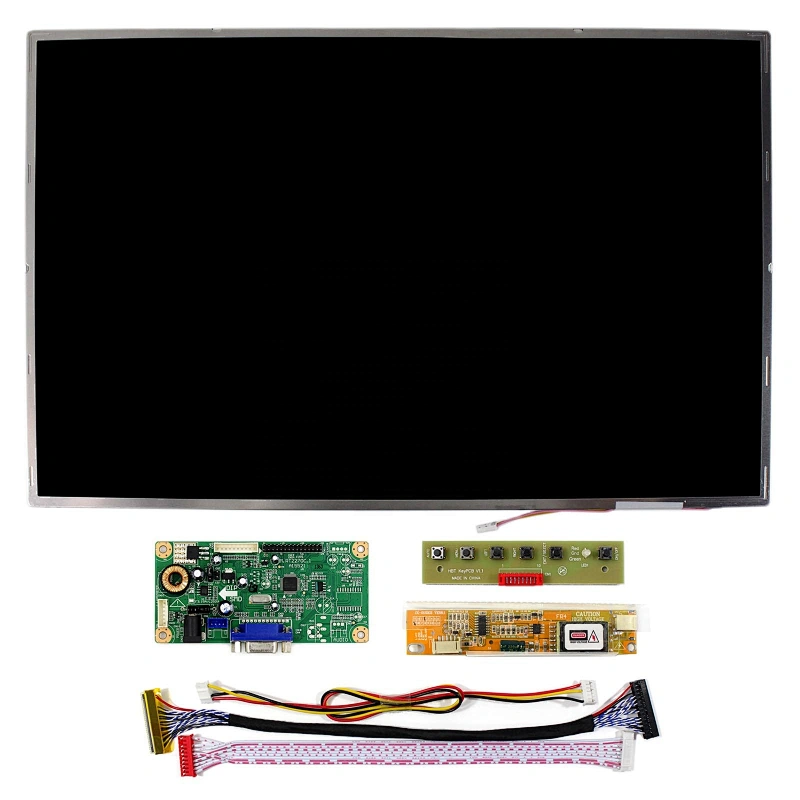

Packaging & Shipping

1× VGA input LCD Controller Board M.RT2270C.1

1× 17inch 1920X1200 LCD Screen

(One of LP171WU1 LP171WU2 LP171WU3 LTN170WU LTN170U1 LTN170U2 LTN170CT01 B170UW01 LTN170CT07)

1× 1 lamp CCFL Backlight Inverter Board

1× LVDS Cable

1× Keyboard with Wire

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

Company Information

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
