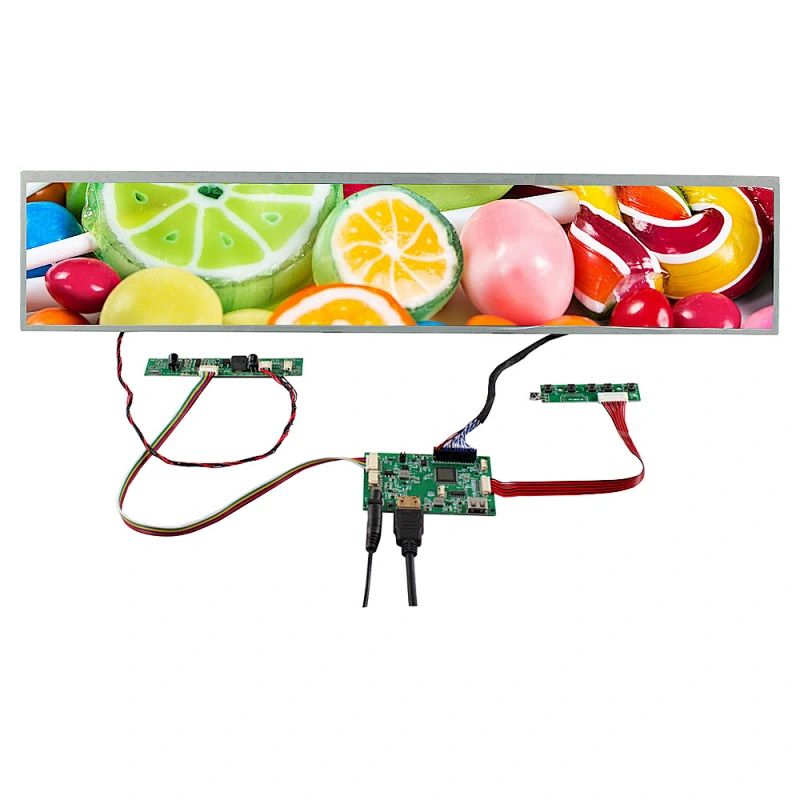

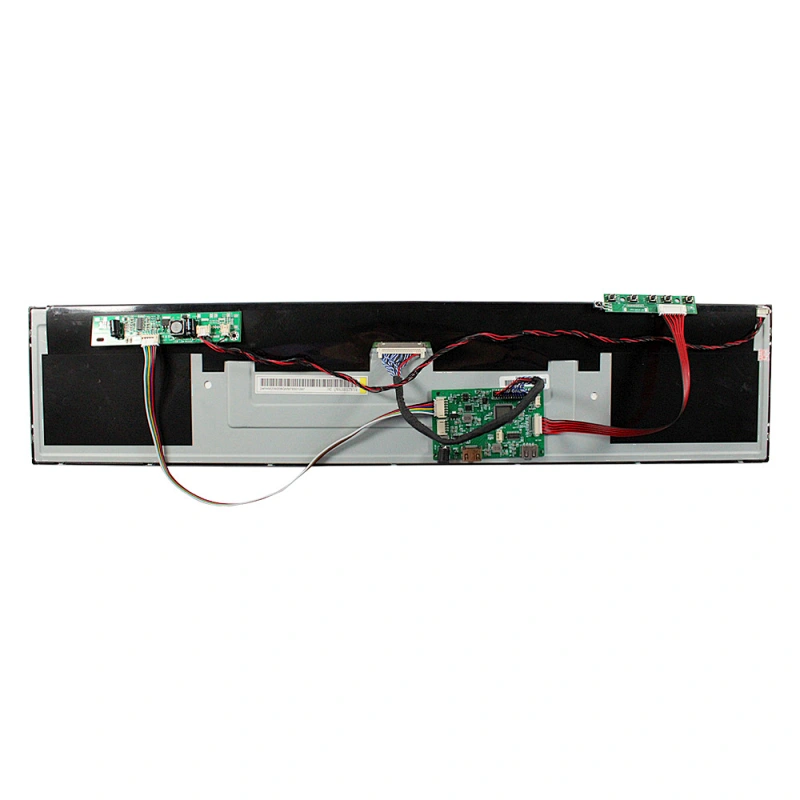

24inch DV240FBM 1920x360 LCD Screen HDMI USB LCD Controller Board

LCD Controller Board:

HD-MI.USB LCD Board Support Rotate Image 180degree for 30Pin LVDS

Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel： 3.3V 5V 12V (Jumper optional)

Photoresistors Input Support Automatic brightness adjustment

External human body induction signal template, automatic startup and shutdown of human body induction

Video Input: HD-MI USB

HD-MI: Support HD-MI 1.4

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and

plugged into the USB of the driver board, the power can be upgraded, and it will automatically

restart after completed)

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 90mm x 51mm x 14mm

24"DV240FBM-NB0 1920x360 LCD Screen:

Display Mode IPS, Normally Black, Transmissive

Resolution 1920（RGB)×360

Outline Size 612.7× 132.1×10.2 (H×V×D)

Display Area 579.888×112.104 (H×V)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 1200:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

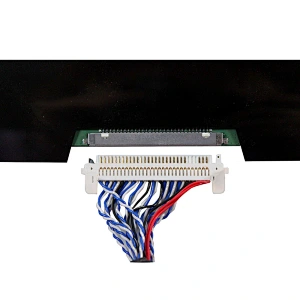

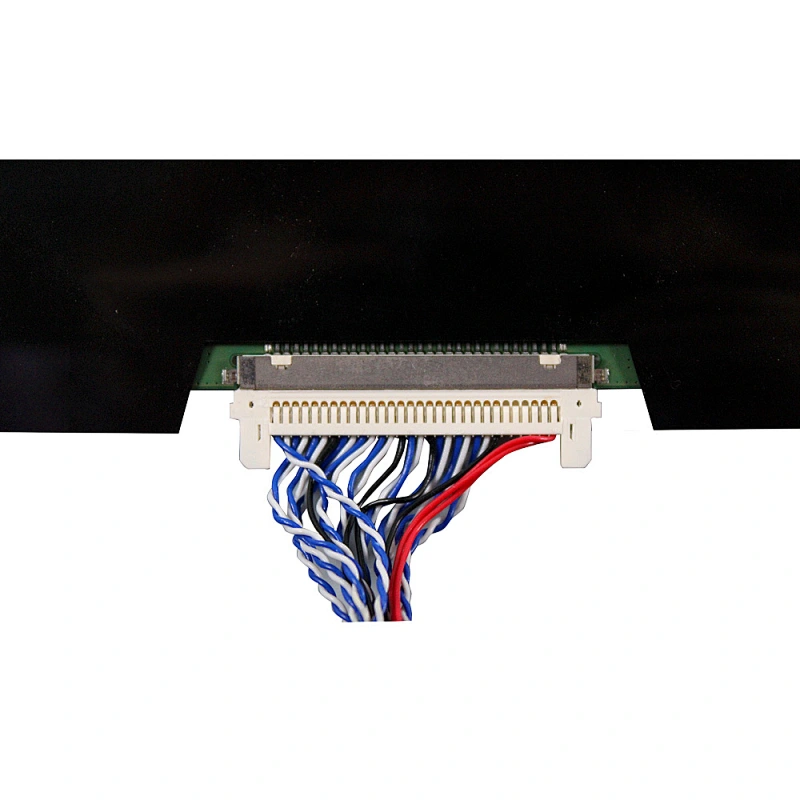

Signal Interface LVDS(1ch 6bit) Connector 40Pin

Backlight WLED

Input Voltage 3.3V (Typ.)

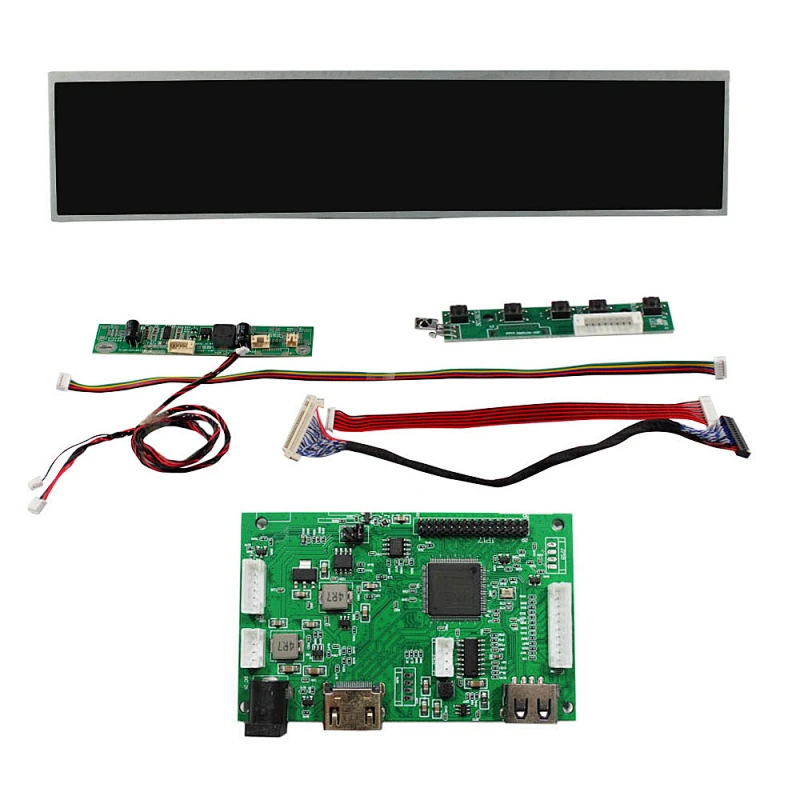

Packing list:

1× HDMI USB LCD Controller Board VS-TY2660H-V823

1× 24"DV240FBM-NB0 1920x360 LCD Screen

1× Inverter Board With Backlight Cable

1× LVDS Cable

1× Keyboard With Cable
