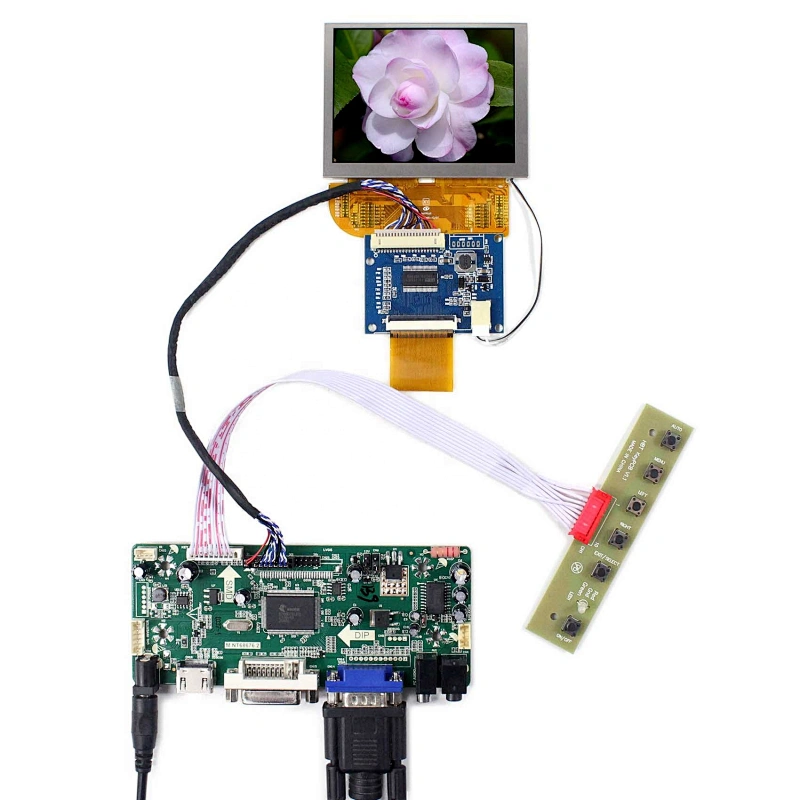

3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board
3.5 inch display 800x600 lcd 400nits screen with hdmi board

3.5 inch display 800x600 lcd 400nits screen with hdmi board

Model NO.
K001848 M.NT68676+VS035SD1
Quantity:

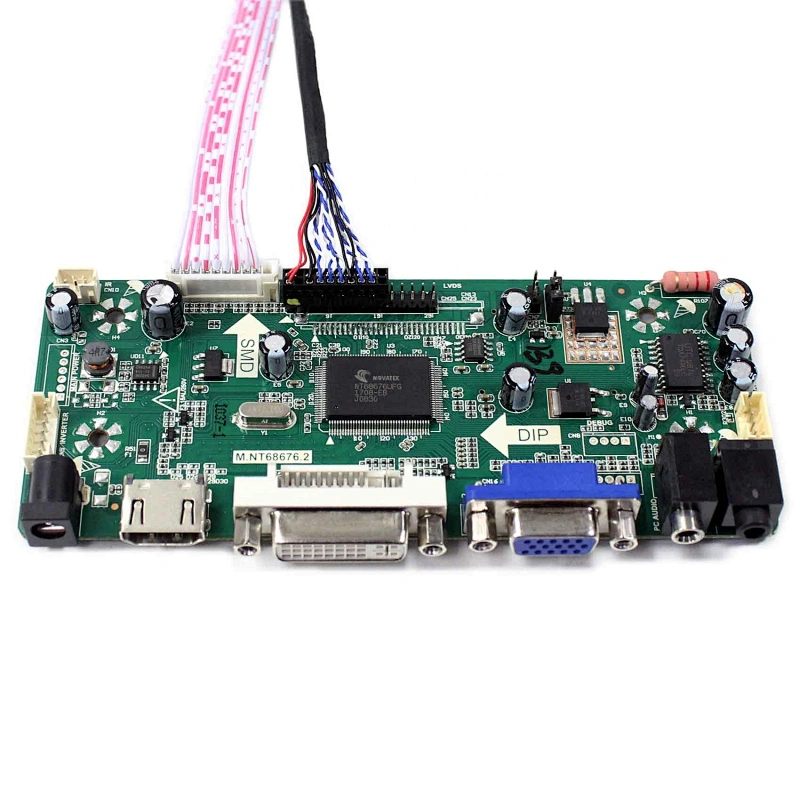

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm
  • 3.5"VS035SD1 800X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×600
    Outline Size 84.03 × 65.24×3 (H×V×D)
    Display Area 71.28 × 53.46 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 50/65/65/65 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface TTL (1 ch, 6-bit) , FPC , 50 pins
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

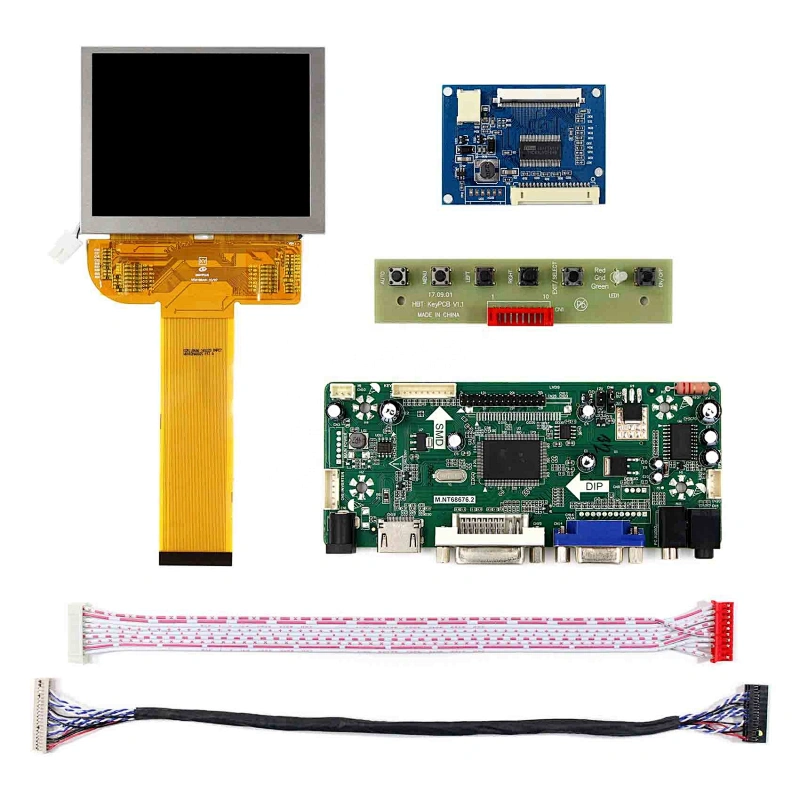

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 3.5inch VS035SD1 800X600 LCD Screen

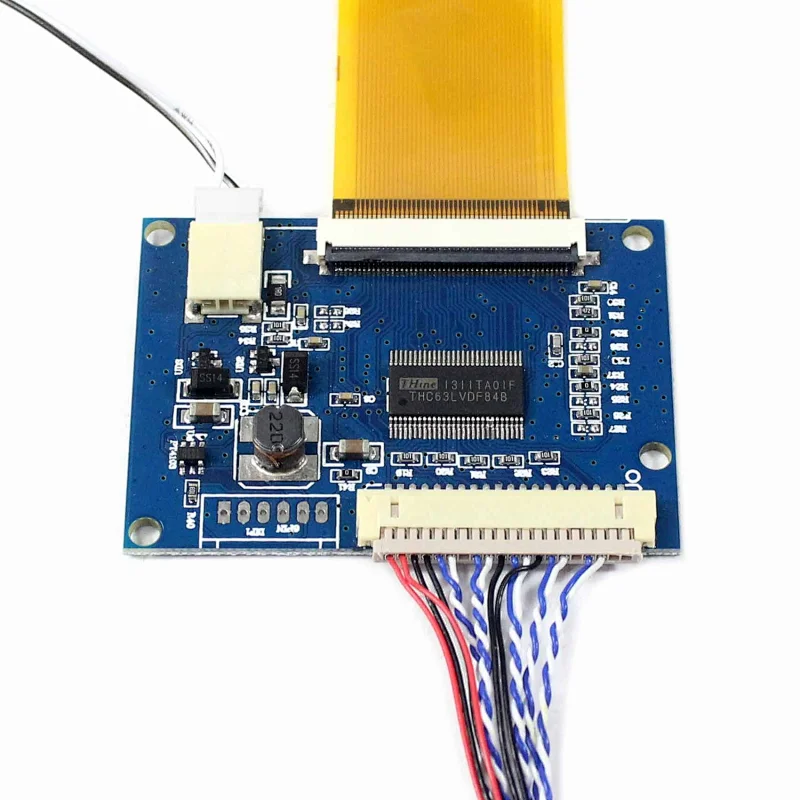

    1× Converter Board VS-TCON50-V1
    1× LVDS Cable
    1× Keyboard With Cable
