3.5" VS035SD1 800X600 LCD Screen with H DMI LCD Controller board

Model NO.
K001852 VS-TY50-V2+VS035SD1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Supply Ability:
1000 set / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

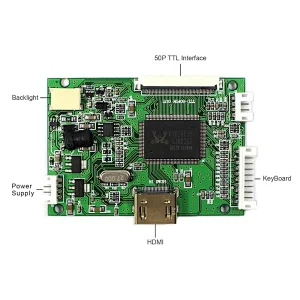

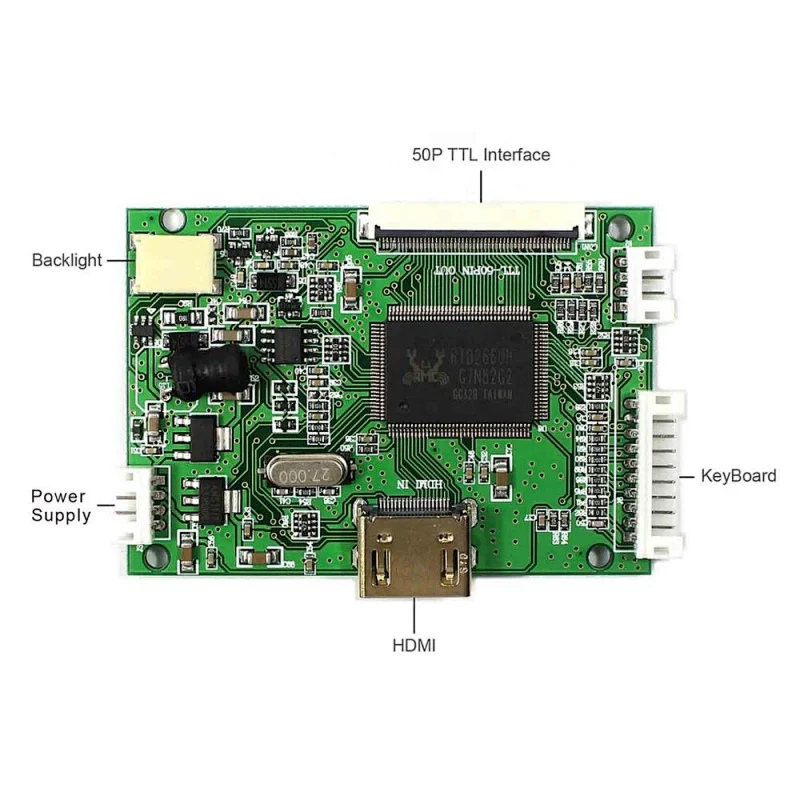

  • LCD Controller Board:
    HDMI LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter: 5Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 70mm x 50mm x 8mm
  • 3.5"VS035SD1 800X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800(RGB)×600
    Outline Size 84.03 × 65.24×3 (H×V×D)
    Display Area 71.28 × 53.46 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 50/65/65/65 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface TTL (1 ch, 6-bit) , FPC , 50 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

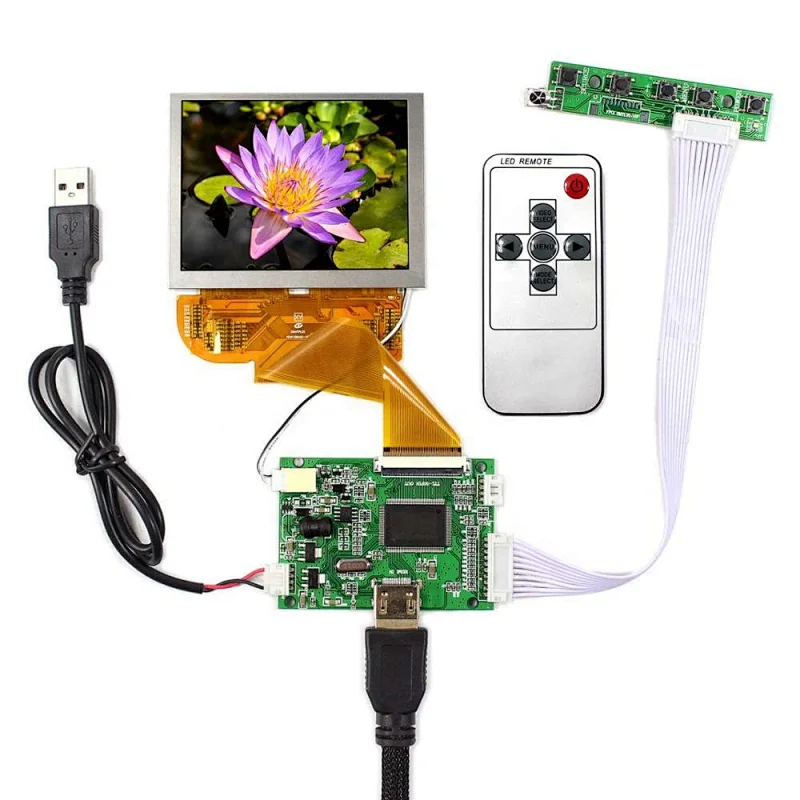

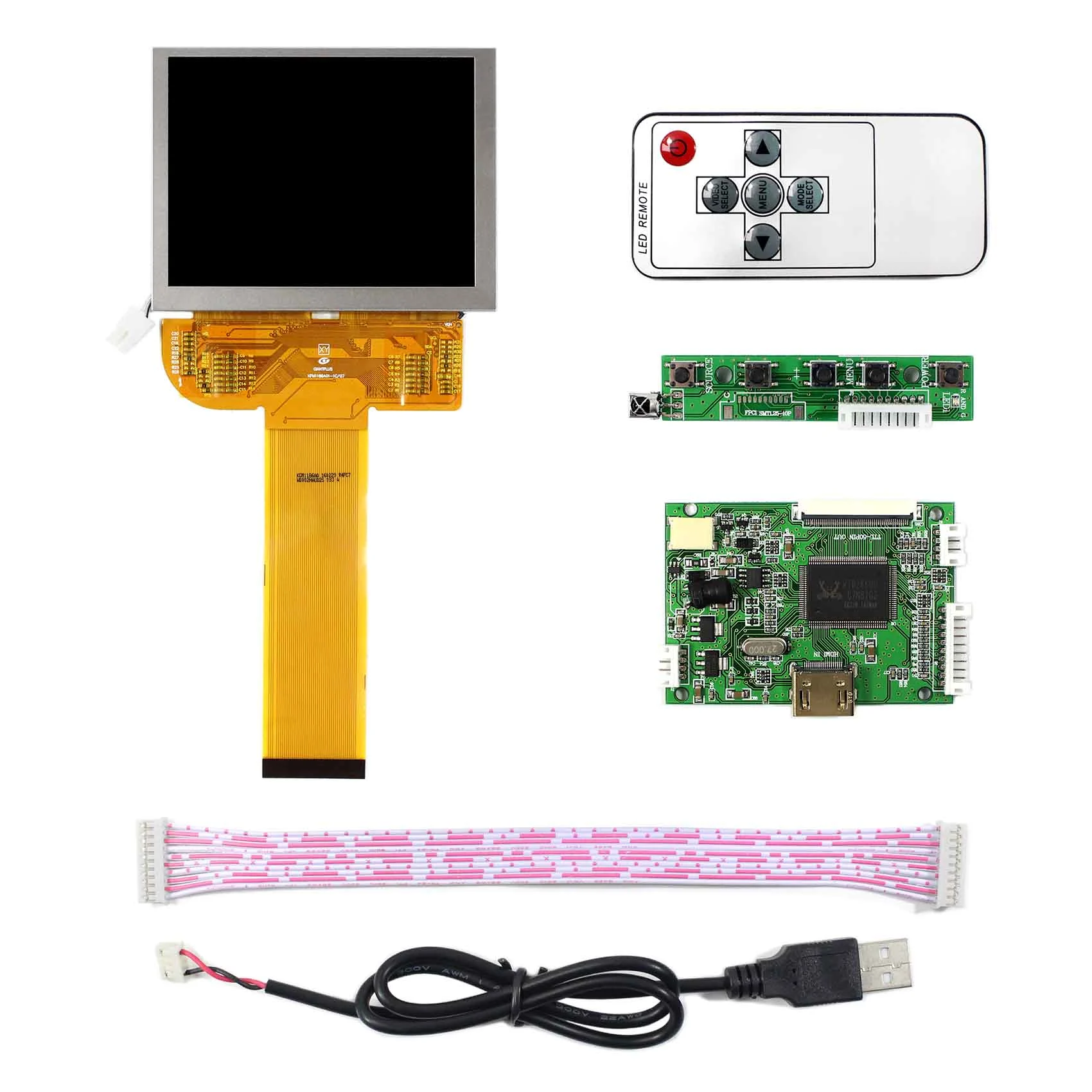

  • Packing list :
    1× HDMI LCD Controller Board VS-TY50-V2
    1× 3.5inch VS035SD1 800X600 LCD Screen
    1× Power Supply Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
