16 x 4 LCD Module use for Video Door Phone
From Romania Customer
Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)
LCD Type : STN, POSITIVE
Driver IC : SPLC780D1
Backlight : YG LED
Supply Voltage : 5V
- Place of Origin:CN
- Display Size:3.5inch
- Model Number:K000098 VS-D1612-N3+LQ035NC111
- Brand Name:VS
- Type:TFT
- Video Input:AV1 AV2
- Standby Model:<0.3W
- Board Size:77mm x 61mm x 10mm
- Input Power Adapter:12Vdc More than 1A
- Display Mode:TN, Normally White, Transmissive
- Resolution:320RGB)X240
- Brightness:300 cd/m2 (Typ.)
- Contrast Ratio:400:1 (Typ.) (TM)
- Signal Interface:Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC
Products Show
Product Description

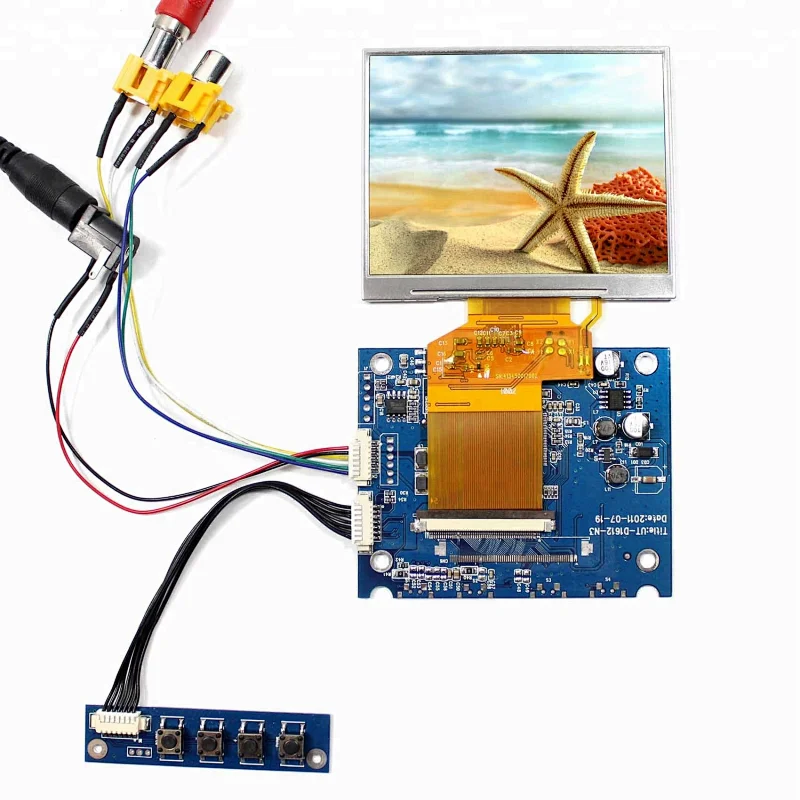

2AV LCD Controller Board VS-D1612-N3
3.5inch LQ035NC111 320X240 LCD Screen
3.5inch LQ035NC111 320X240 LCD Screen

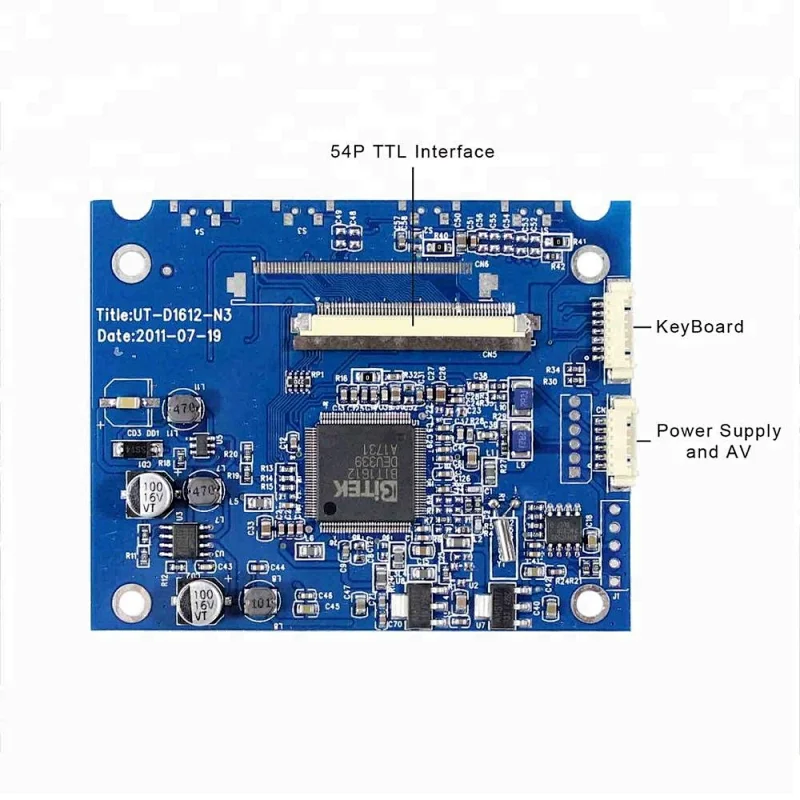

Product name: | 2AV LCD Controller Board VS-D1612-N3 | ||||||
Details: | 2AV LCD Board Work for 54Pin TTL LQ035NC111 LCD Screen Input Power Adapter:12Vdc More than 1A. Come In Standby Model When Not Input Signal Standby Model <0.3W Video Input: AV2 AV2 OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:77mm x 61mm x 10mm | ||||||
Product Name: | 3.5inch LQ035NC111 320X240 LCD Screen | ||||||
Details: | Display Mode TN, Normally White, Transmissive Resolution 320RGB)×240 Outline Size 76.9 × 63.9×3.46 (H×V×D) Display Area 70.08 × 52.56 (H×V) Brightness 300 cd/m² (Typ.) Contrast Ratio 400:1 (Typ.) (TM) Viewing Angle 60/60/50/55 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC Backlight WLED Input Voltage 3.3V (Typ.) | ||||||
Packing list: | 1× 2AV LCD Controller Board VS-D1612-N3 1× 3.5inch LQ035NC111 320X240 LCD Screen 1× 2AV Signal Cable 1× Power Cable 1× Keyboard With Cable | ||||||
