Model NO.
K001777 VS-RT2795T4K-V1+NV156QUM-N44
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

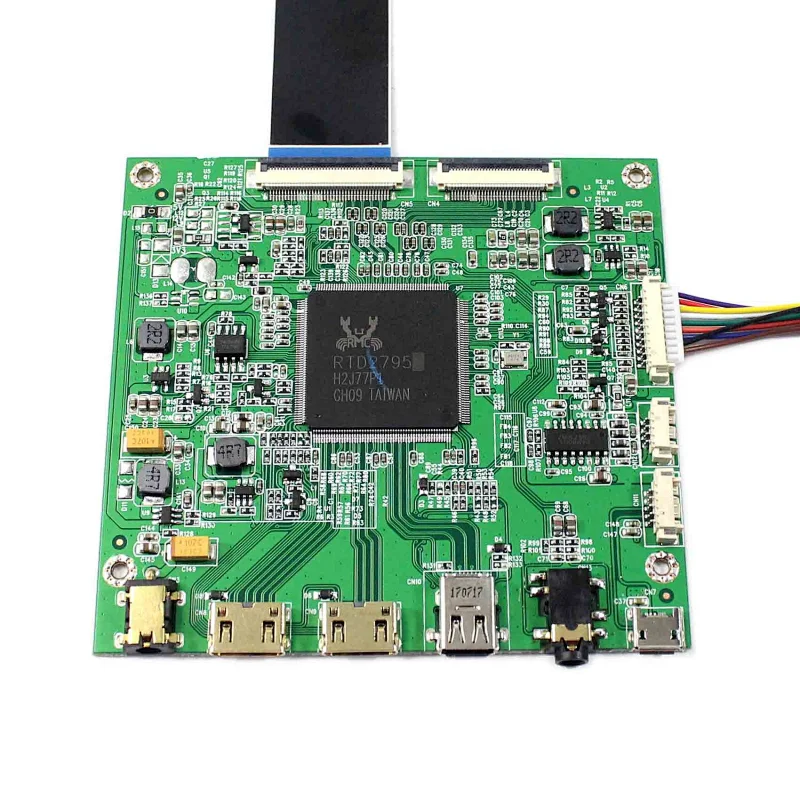

  • LCD Controller Board:
    HDMI Board Work for 30Pin EDP LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: 2HDMI Mini DP Support HDMI 2.0
    Audio Output: Earphone
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 89mm x 84mm x 5mm

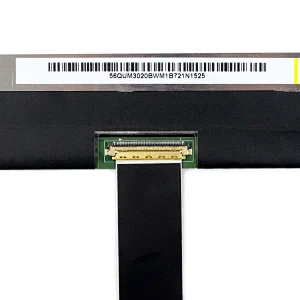

  • 15.6"LCD Screen NV156QUM-N44:
    Display Mode AAS, Normally Black, Transmissive
    Resolution 3840 (RGB)×2160 (UHD)
    Outline Size 351.9(W)×224.42 (H) ×3.2(D) mm
    Display Area 345.6(W)×194.4(H) mm
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 1000:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface eDP (4 Lanes) , Connector ,40 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

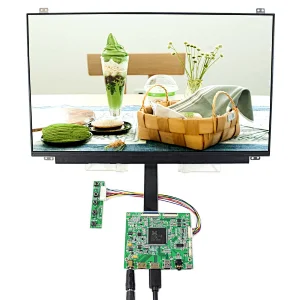

  • Packing list :
    1× 2 HDMI Mini+DP LCD Controller VS-RT2795T4K-V1
    1× 15.6inch NV156QUM-N44 3840X2160 IPS LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
