5.6 " tft lcd with tv board

Model NO.
K001287 T.V56.03+LTD056ET3A
Quantity:

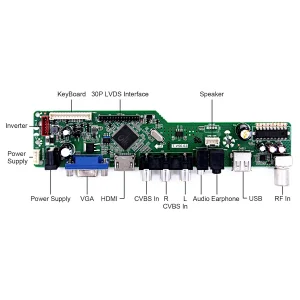

  • LCD Controller Board:
    HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
    USB Support Video
    AV Compatible With PAL And NTSC
    Video Input: HDMI VGA AV USB RF
    Audio Input: HDMI PC-Audio
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:188mm x 43mm x 17mm
  • 5.6"LTD056ET3A 1024X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×600
    Outline Size 136.8 × 85.9×4.9 (H×V×D)
    Display Area 122.88 × 72 (H×V)
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 400:1 (Typ.) (TM)
    Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , 25 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× HDMI VGA AV USB RF LCD Controller Board T.V56.03
    1× 5.6inch LTD056ET3A 1024X600 LCD Screen
    1× Converter Board
    1× LVDS Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
