- Driver Board:VGA+AV lcd
- LCD Size:5.6 inch tft lcd
- LCD Resolution:800 (H) X 480 (V)
- LCD Type:TFT Transmissive Normal White
- Model:AT056TN53
- Connector:40pin 0.5pitch
- Outline Dimension:126.5 X 100 X 5.7
- Place of Origin:CN;GUA
- Display Size:5.6inch
- Model Number:K000114 KYV-N2V1 + AT056TN53
- Brand Name:VS

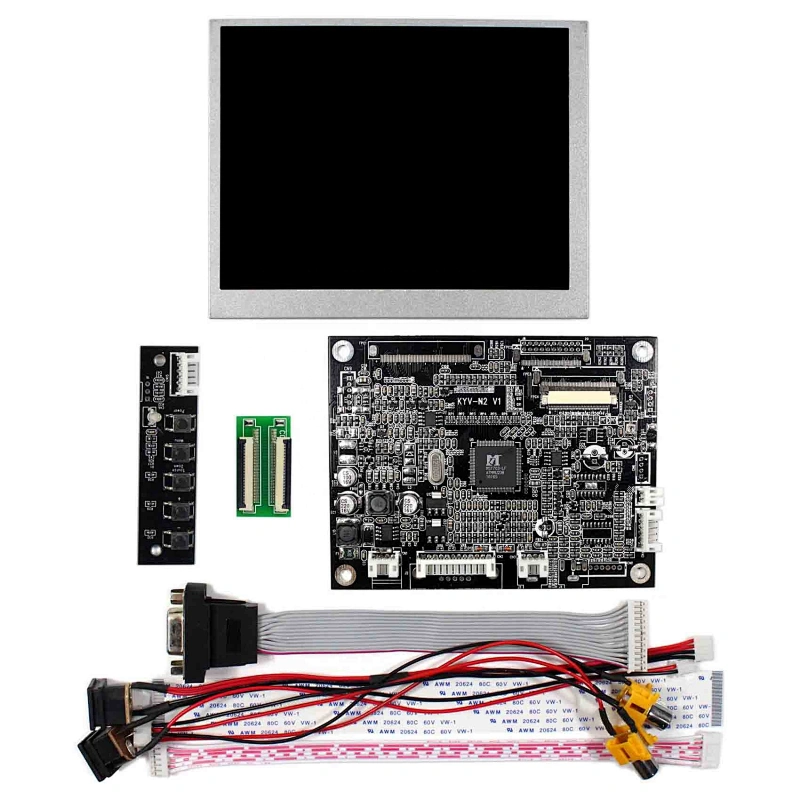

5.6"TFT LCD Module AT056TN53
| ITEM | DESCRIPTION | UNIT |
| Product Name | 5.6"TFT LCD Module | |
| Model No | AT056TN53 | |
| Pixel | 640 RGB (H) X 480 (V) | pixels |
| Outline Dimension | 126.5 X 100 X 5.7 | mm |
| Display Area | 112.896(H) X 84.672(v) | mm |
| Pixel Pitch | 0.0588(H) X 0.1764(V) | mm |
| Backlight | White LED | |

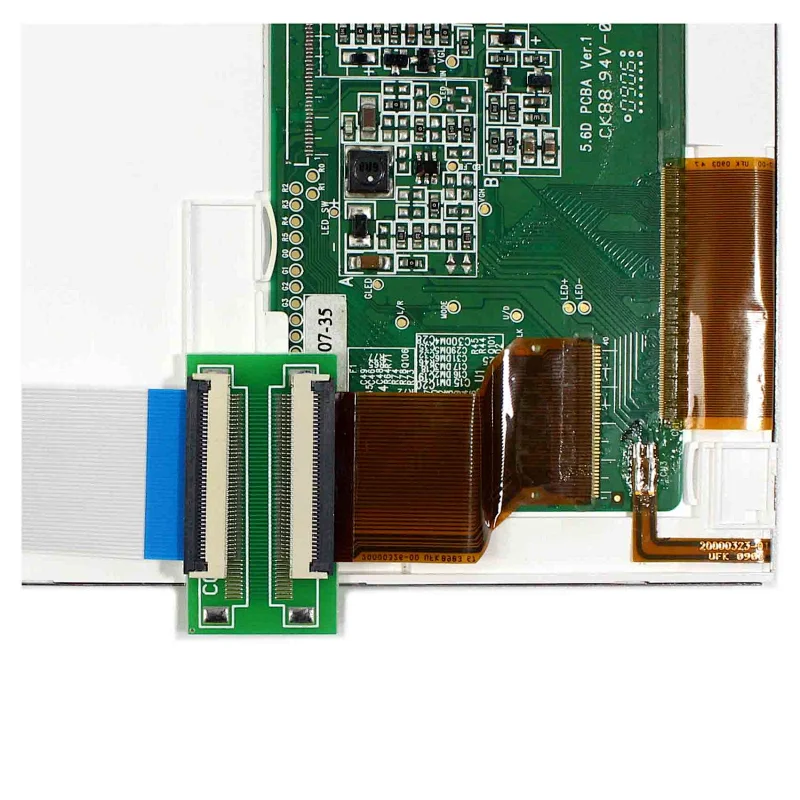

| Connector | 40pin 0.5pitch | mm |
| Power Consumption | 4.8 to 5.2 (B/L System) | V |
| Power Consumption | 380 (LCD Panel) | Ma |
| Operating Temp | -20 to 70 | ℃ |
| Storage Temp | -30 to 80 | ℃ |

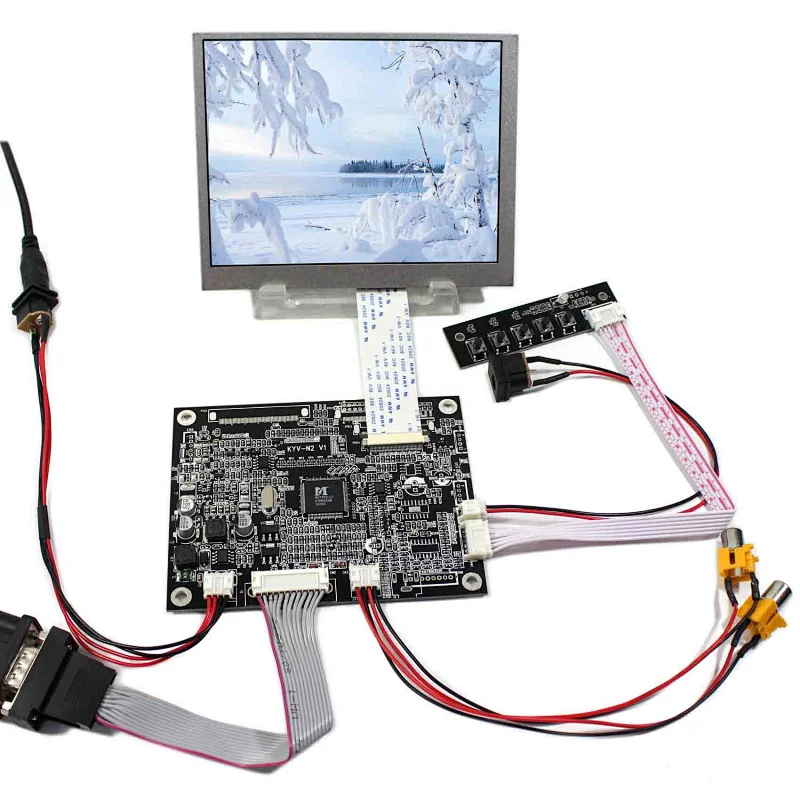

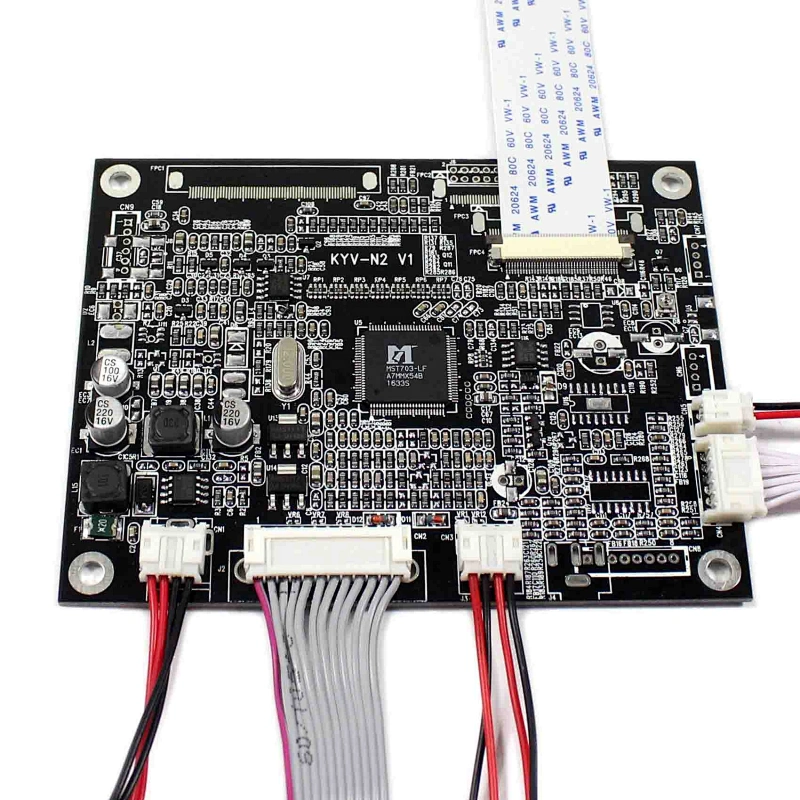

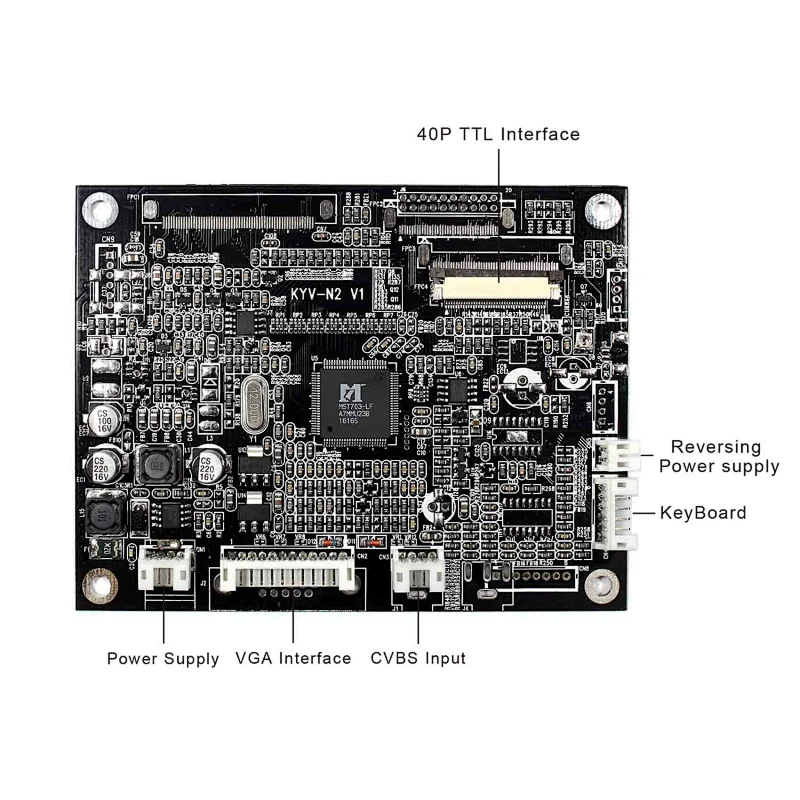

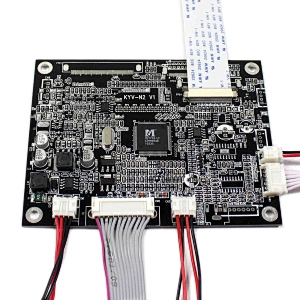

VGA/AV/Car Reverse driver board
| ITEM | DESCRIPTION |
| Product Name | Driver Board for AT056TN53 |
| Model No | KYV-N2V1 |
| Input signal | CVBS,VGA (640x480, 800x480,800x600),Car Reverse |
| Input Voltage | DC+12V |
| Board Outline Size | 110x85x10(mm) |
| LCD FPC Connector | 40pin 0.5pitch |
| Operating Temp | -0 to 60 |
| Storage Temp | -20 to 70 |
| Application: | |
| It is widely use for Industrial Control,Video intercom, Instruments and meters, Medical Equipment, Security and protection Control, On-vehicle Display, Bank System, POS Machine etc. | |
