6.5inch 4wire Resistive Touch Screen USB Controller Card for 6.5" 800x480 16:9 LCD Panel

Model NO.
K000541 VS065TP-A1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Description:
    USB Type Controller
    Dimension Size: 71mm x 20mm x 10mm
    Power Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)
    Operating Temperature 0 to 50°C
    Storage Temperature -40 to 80°C
    Relative Humidity 95% at 60°C
    Interface USB 1.1 & 2.0
    Resolution 2048×2048 resolution
    Report rate USB Model: Max. 160 points/sec
    Response time Max. 20 ms
    Attached Cable 6' shielded cable with USB-A connector for USB port
    Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices
    EMI Unaffected by environmental EMI
    Panel resistance 4 wire resistive model: 200 ~ 900 ohm
    MTBF 200,000 hrs
    PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+

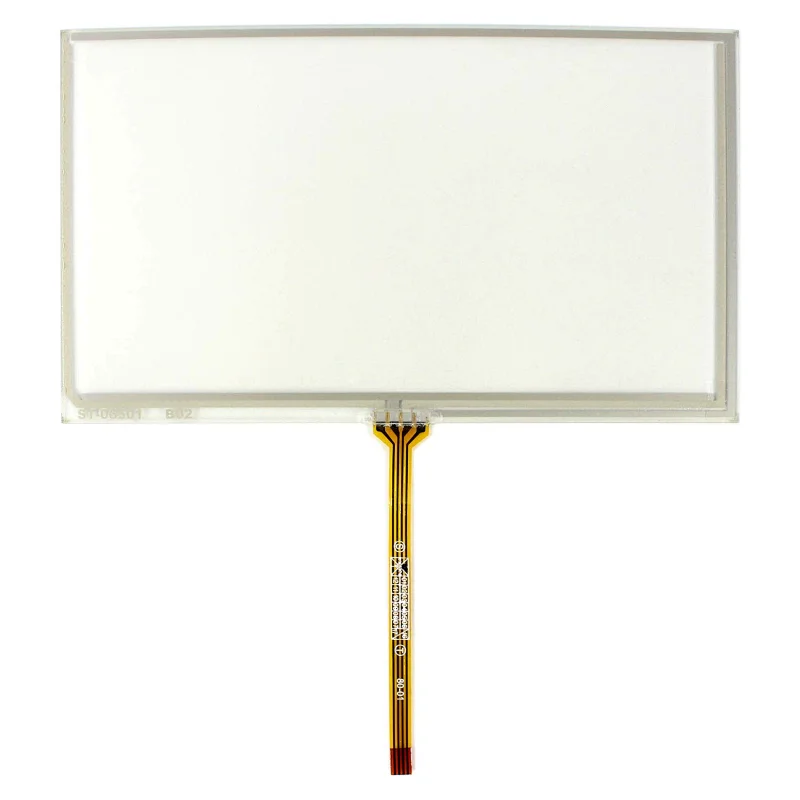

    Touch Panel
    Dimension Size: 155mm x 89mm
    Display Area: 143.4mm x 76.7 mm
    FPC connector: 4pin 0.5mm pitch bottom contact.
  • Packing list :
    1× 6.5inch 4-Wire Resistive Touch Panel For 16:9 LCD Screen VS065TP-A1
    1× 4-Wire USB Controller Card
    1× USB Cable
    1× Converter Cable
    1× CD (Driver for touch control card Support LINUX Windows CE XP and Win7
