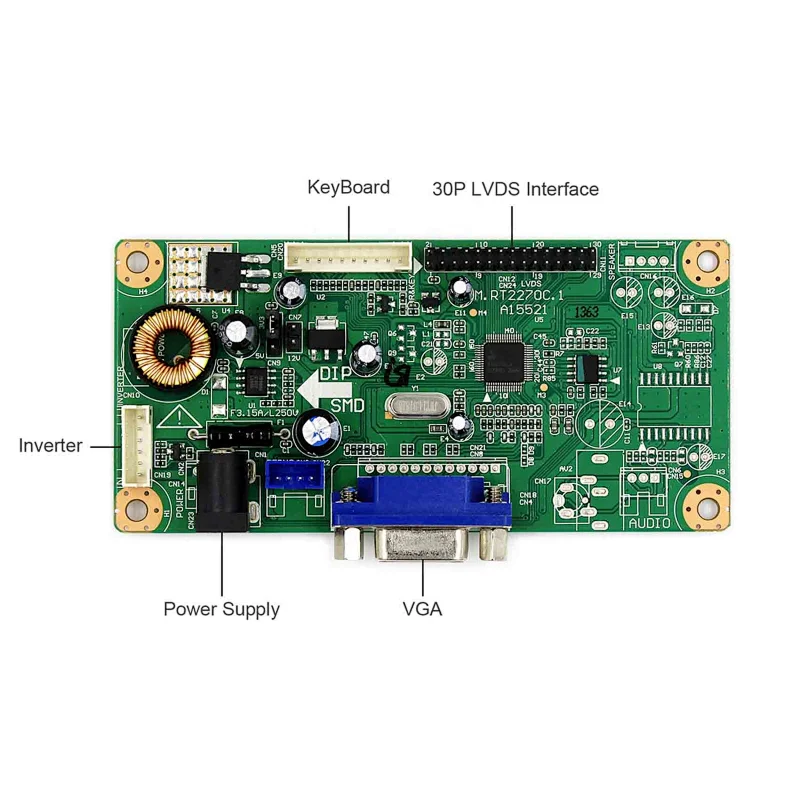

VGA input LCD Controller board M.RT2270C.1
M.RT2270C.1 is a monitor control board, It can support LED/LCD panels which resolution is up to 1920X1080.
it supports Dynamic Contrast Control, headphone input and Digital volume control Simultaneously.
Video Input: VGA
Size: 107mm(L)*51.5mm(W)*18mm(H)
Input Power Adapter: 12Vdc More than 2A
OSD LANGUAGE: English, French, German, Italian, Spanish, (optional) And So On
KEY FUNCTION: POWER,MENU,VOL+,VOL-,AUTO/EXIT
Operation temperature: 0~40°C.
Standby Power Consumption < 0.2W(Board Only)
Panel Interface: Single/Dual LVDS (8bit)
GENERAL PRECAUTIONS:
Don’t wire in the board to power supply before panel is correctly connected

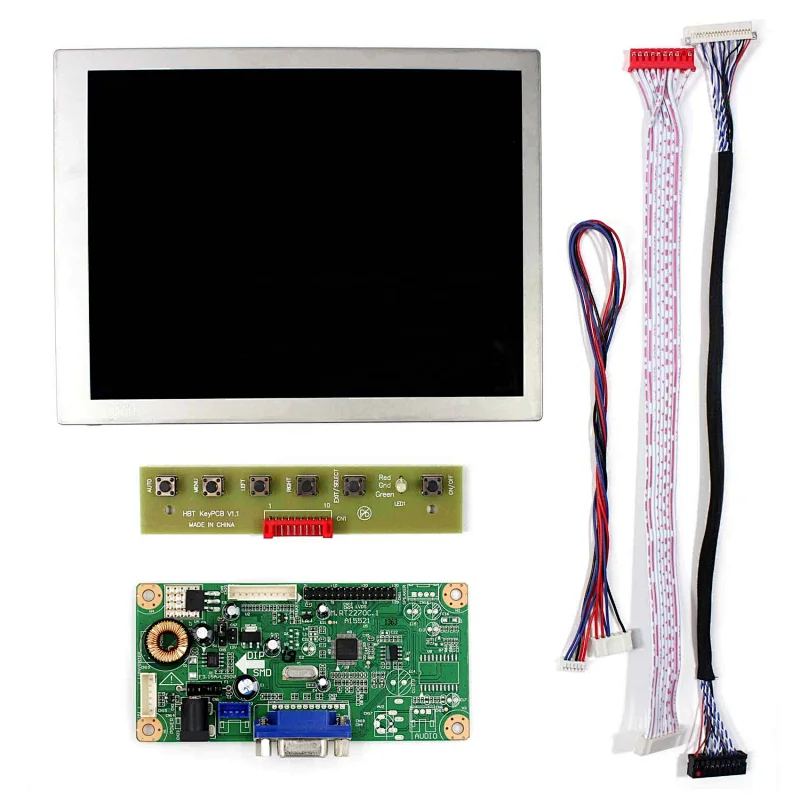

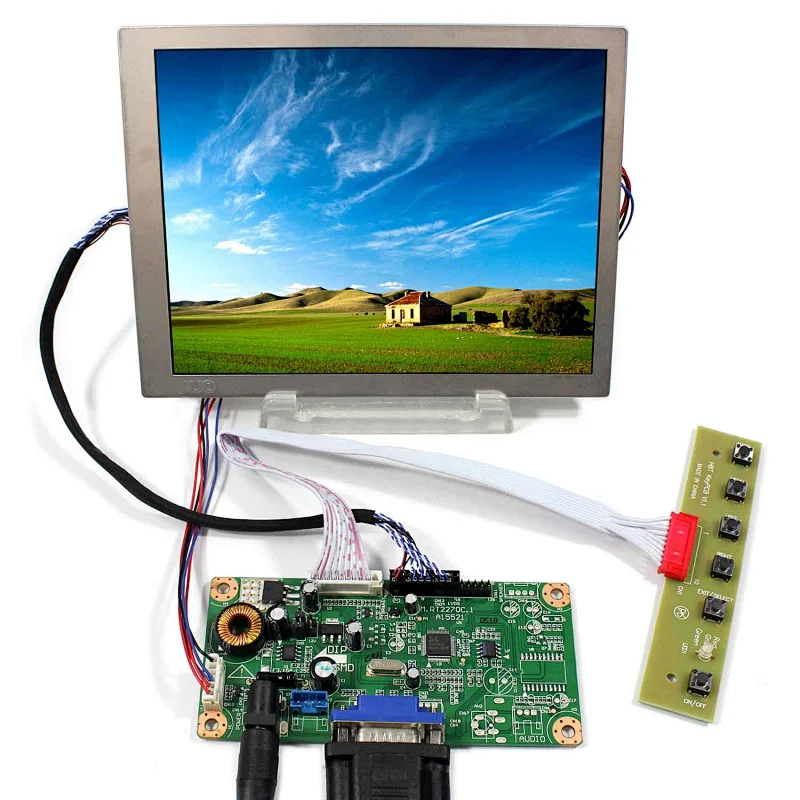

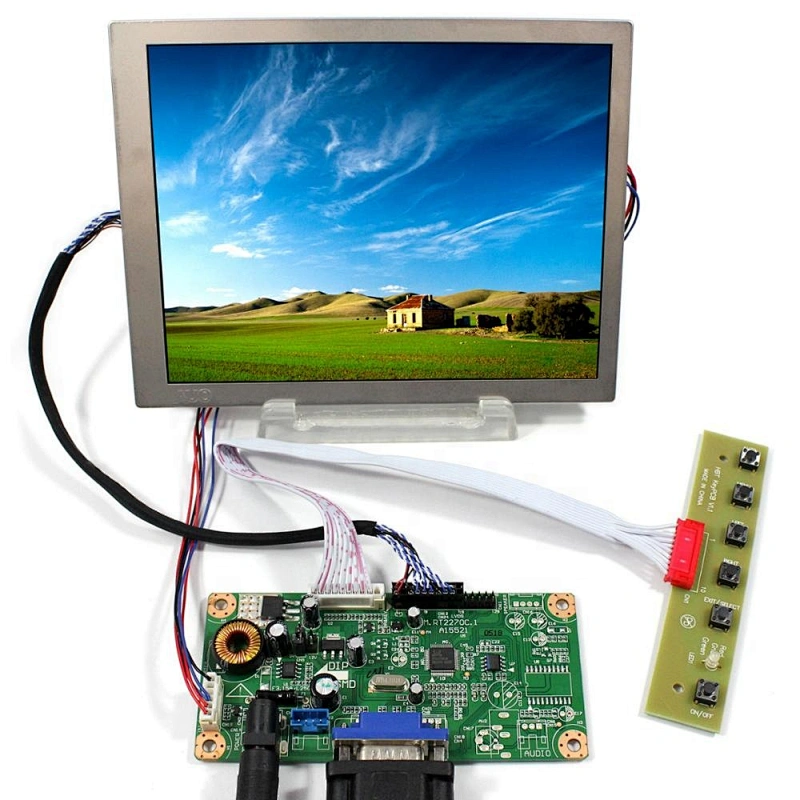

6.5inch 640x480 LCD Screen G065VN01 V2 :
Display Mode: TN, Normally White, Transmissive
Panel Type: a-Si TFT-LCD , LCM
Resolution: 640x480
Aspect Ratio: 4:3(H:V)
Outline Dimension: 153x118x10.9(HxVxD)
Display Area: 132.48 (H)×99.36(V)
Backlight type: WLED
Luminance: 800cd/m²
Contrast Ratio: 600 : 1 (Typ.) (Transmissive)
Viewing Angle: 80/80/70/70 (Typ.)(CR≥10)
Signal Interface: LVDS 20pins
Voltage Input: 3.3V
Operating Temperature: -30 ~80 °C
Weight: 170g
Application: Industrial application
