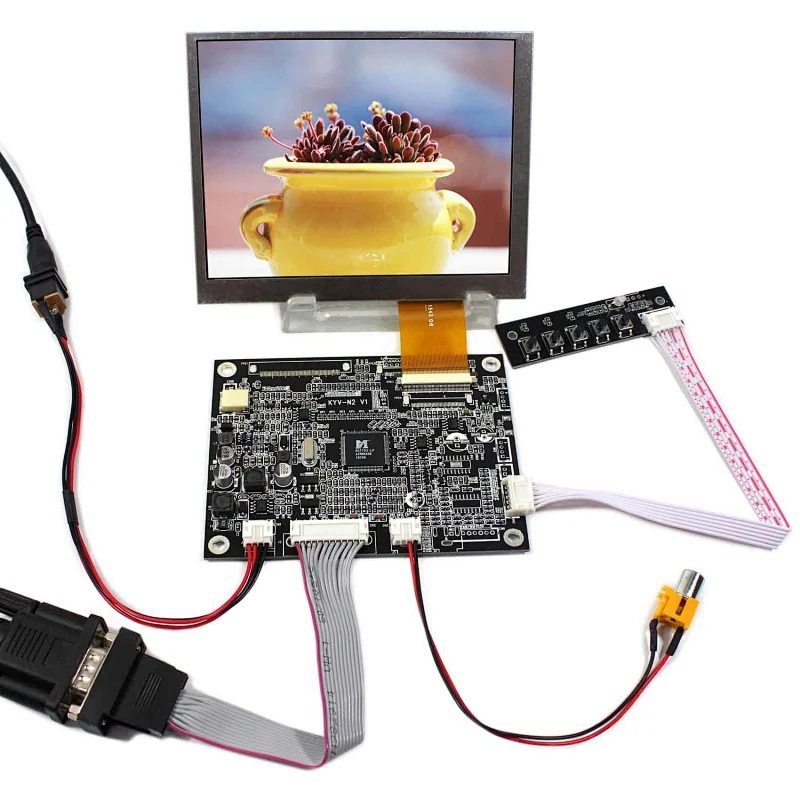

640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board
640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board

640x480 digital tft lcd module 5.6inch AT056TN52 with VGA,AV controller board

Model NO.
K000113 AT056TN52+KYV-N2V1
Quantity:

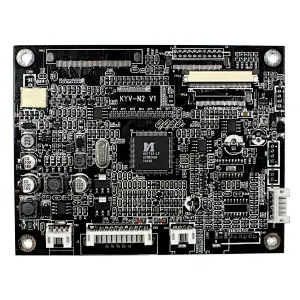

  • LCD Controller Board:
    VGA AV LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:110mm x 85mm x 10mm
  • 5.6"AT056TN52 V3 640X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 640RGB)×480
    Outline Size 126.5 ×100×6 (H×V×D)
    Display Area 112.9 × 84.7 (H×V)
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

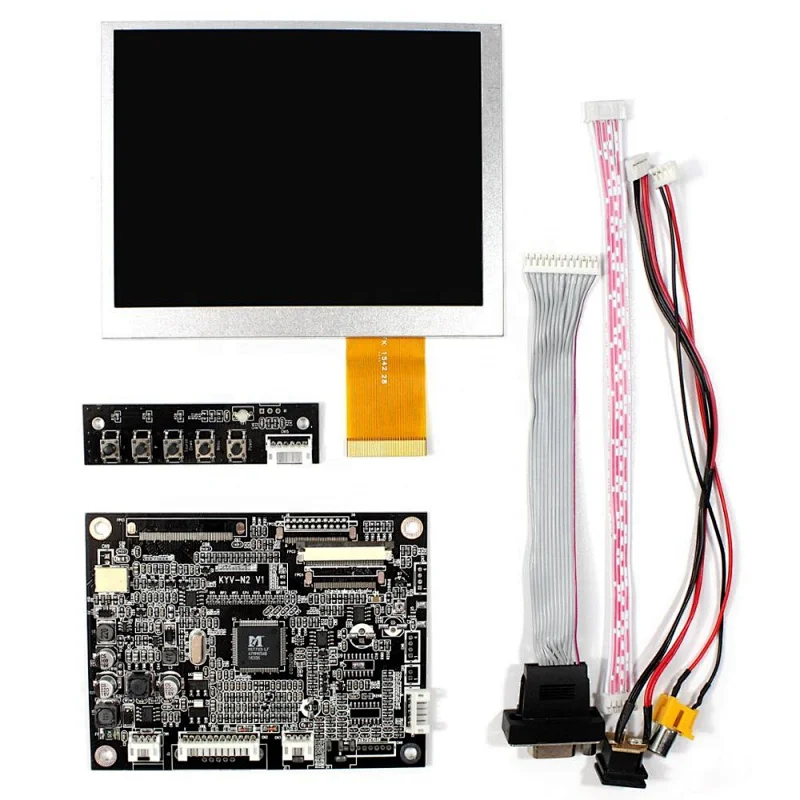

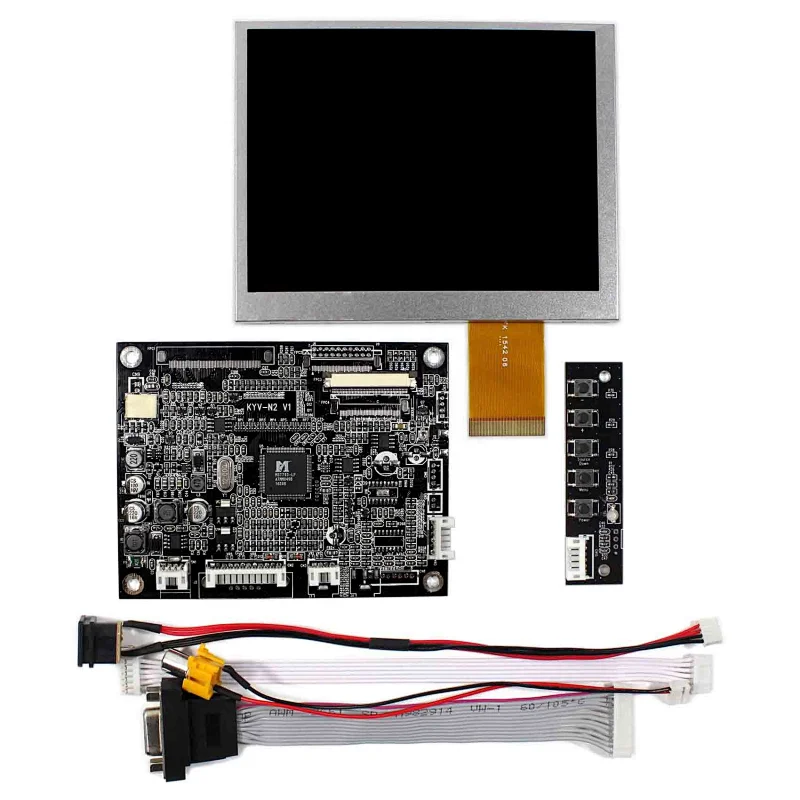

  • Packing list :
    1× VGA AV LCD Controller Board KYV-N2 V1
    1× 5.6inch AT056TN52 640X480 LCD Screen
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× Keyboard With Cable
