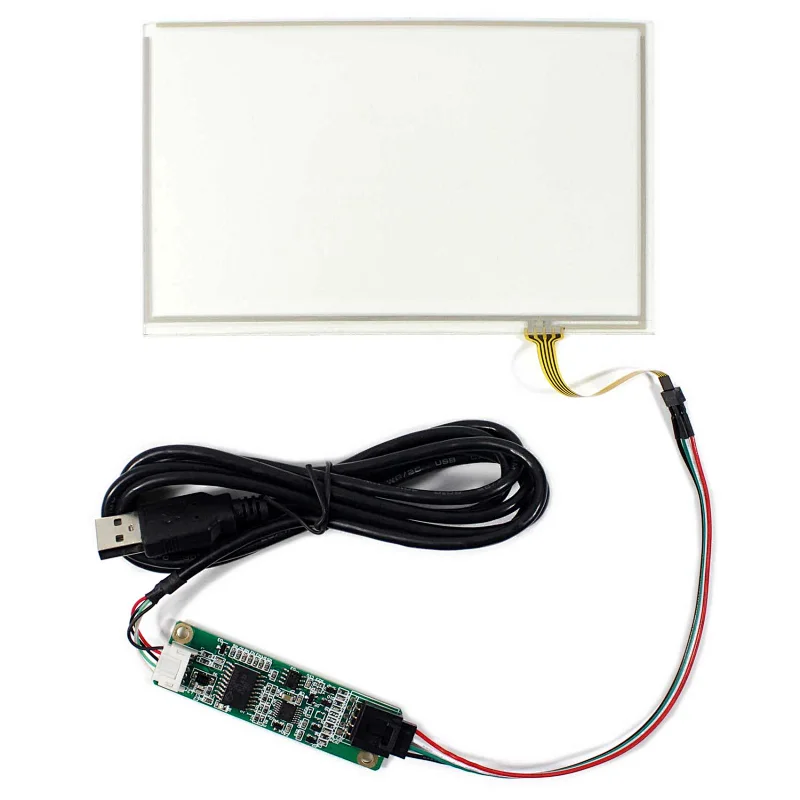

6inch 145mmx88mm Resistive Touch Screen With USB Controller Card
6inch 145mmx88mm Resistive Touch Screen With USB Controller Card
6inch 145mmx88mm Resistive Touch Screen With USB Controller Card
6inch 145mmx88mm Resistive Touch Screen With USB Controller Card
6inch 145mmx88mm Resistive Touch Screen With USB Controller Card
6inch 145mmx88mm Resistive Touch Screen With USB Controller Card
6inch 145mmx88mm Resistive Touch Screen With USB Controller Card
6inch 145mmx88mm Resistive Touch Screen With USB Controller Card
6inch 145mmx88mm Resistive Touch Screen With USB Controller Card

6inch 145mmx88mm Resistive Touch Screen With USB Controller Card

Model NO.
K000018 VS060TP-A1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

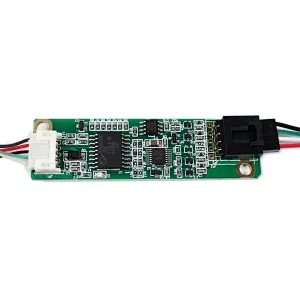

  • Description:
    USB Type Controller
    Dimension Size: 71mm x 20mm x 10mm
    Power Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)
    Operating Temperature 0 to 50°C
    Storage Temperature -40 to 80°C
    Relative Humidity 95% at 60°C
    Interface USB 1.1 & 2.0
    Resolution 2048×2048 resolution
    Report rate USB Model: Max. 160 points/sec
    Response time Max. 20 ms
    Attached Cable 6' shielded cable with USB-A connector for USB port
    Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices
    EMI Unaffected by environmental EMI
    Panel resistance 4 wire resistive model: 200 ~ 900 ohm
    MTBF 200,000 hrs
    PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+

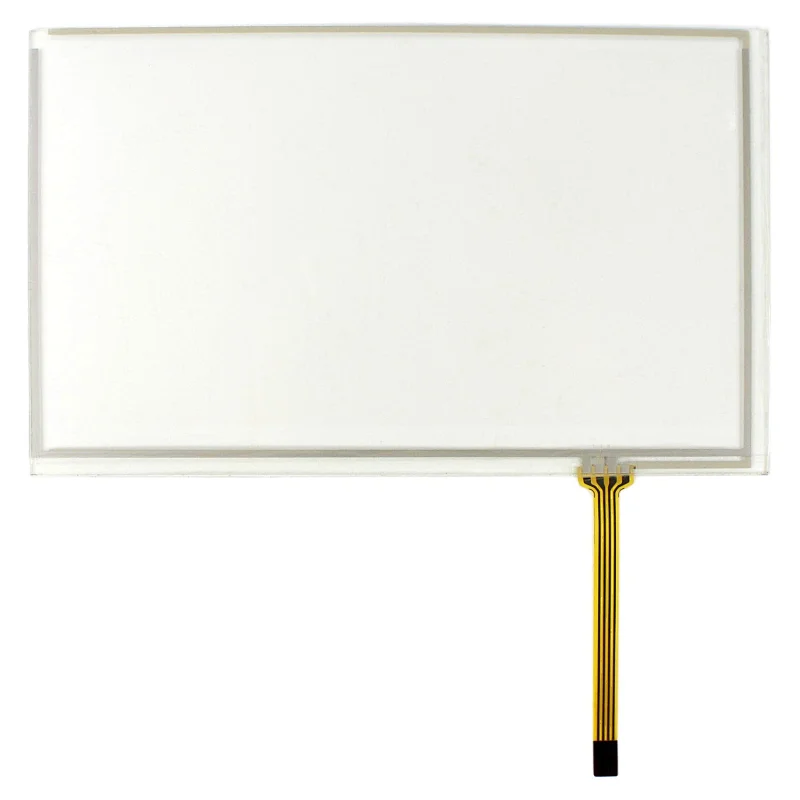

    Touch Panel
    Dimension Size: 145mm x 88mm
    Display Area: 135mm x 75 mm
    FPC connector: 4pin 0.5mm pitch bottom contact.

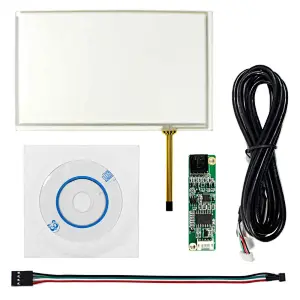

  • Packing list :
    1× 6inch 4-Wire Resistive Touch Panel For 16:9 LCD Screen VS060TP-A1
    1× 4-Wire USB Controller Card
    1× USB Cable
    1× Converter Cable
    1× CD (Driver for touch control card Support LINUX Windows CE XP and Win7)
