7" HSD070I651 480x234 CVBS input Controller Board 7inch LCD Screen

Model NO.
K001778 HSD070I651driver board+HSD070I651
Quantity:

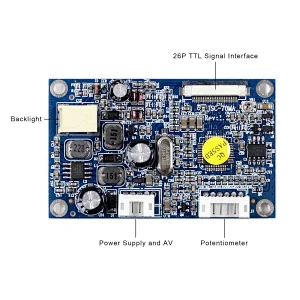

  • LCD Controller Board:
    CVBS input LCD Controller Board Work For 26Pin TTL interface LCD Screen
    Input Power Adapter: 12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: CVBS
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 65mm x 40mm x 8mm
  • 7"HSD070I651 480X234 LCD Screen:
    Display Mode  TN, Normally White, Transmissive
    Resolution 480(RGB)×234
    Outline Size 140.9 × 100×5 (H×V×D)
    Display Area 154.08 × 86.58(H×V)
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 60/60/40/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface 26 pins   TFT Specific Analog RGB , FPC
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

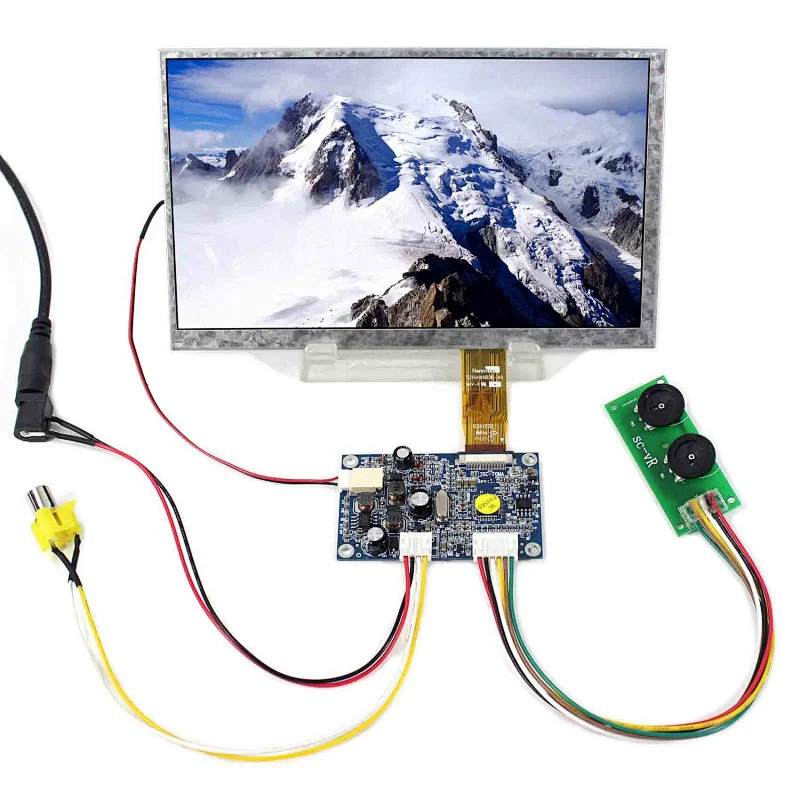

  • Packing list :
    1× CVBS LCD Controller Board
    1× 7inch HSD070I651 480X234 LCD Screen
    1× Power&CVBS Cable
    1× Keyboard With Cable
