7" HSD070PWW1-B00/B01 1280X800 IPS LCD Screen with LVDS Controller Board

Model NO.
K000864 M.NT68676+HSD070PWW1-B01+VS070TP-A9
Minimum order quantity:
1 piece
Supply Ability:
1000.0 piece / Day
Country of Origin:
SHENZHEN
Quantity:

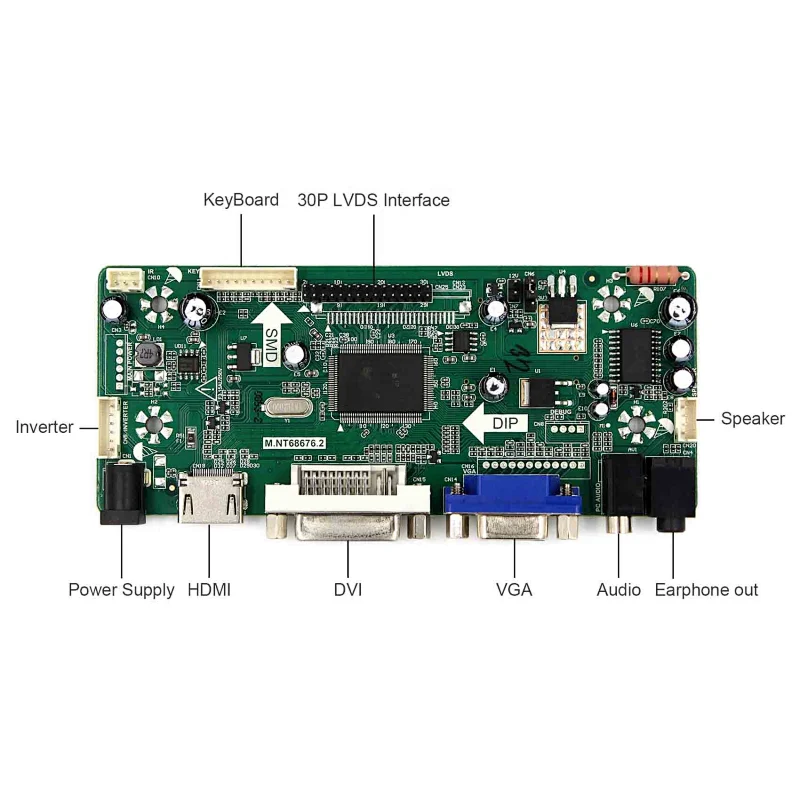

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm
  • 7"HSD070PWW1-B00/B01 1280X800 LCD Screen:
    Display Mode  HS-IPS, Normally Black, Transmissive
    Resolution 1280RGB)×800
    Outline Size 161.6 ×105.8×5 (H×V×D)
    Display Area 150.72 × 94.2 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface  LVDS (1 ch, 6-bit) , Connector , 30 pins
    Backlight LED
    Input Voltage  3.3V (Typ.)

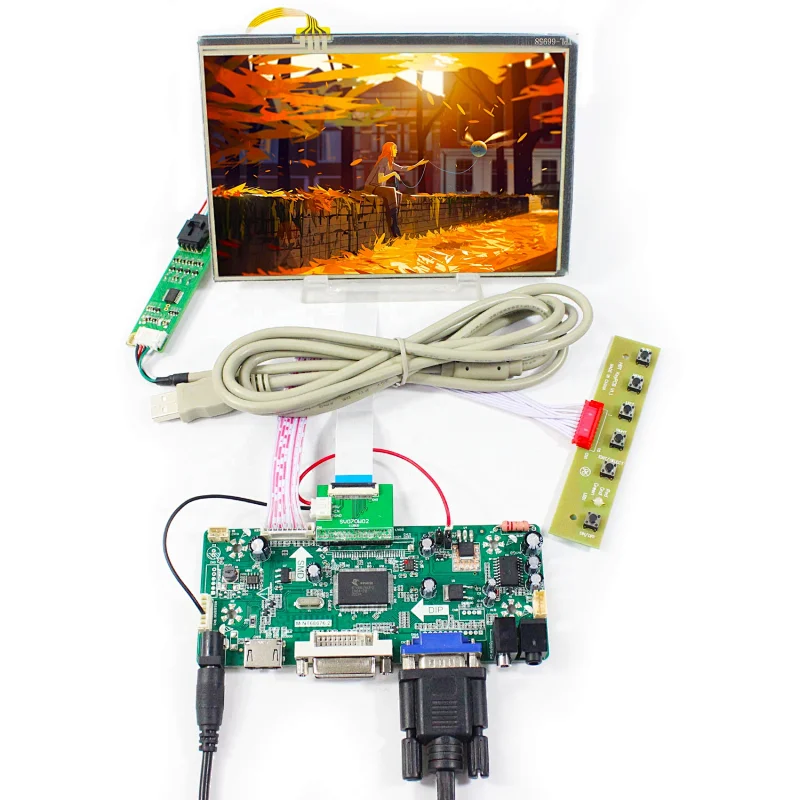

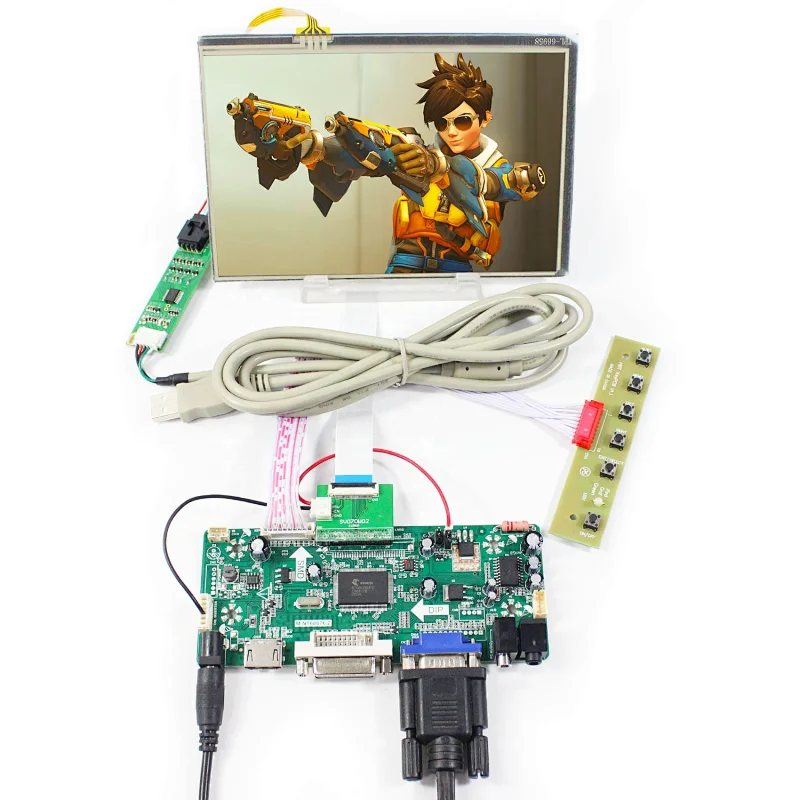

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 7inch HSD070PWW1-B00/B01 1280X800 LCD With Resistive Touch Panel
    1× LVDS Cable
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
