7 inch 1280x800 touch screen LCD with control Board

7 inch 1280x800 touch screen LCD with control Board

7 inch 1280x800 touch screen LCD with control Board

7 inch 1280x800 touch screen LCD with control Board

7 inch 1280x800 touch screen LCD with control Board

7 inch 1280x800 touch screen LCD with control Board

7 inch 1280x800 touch screen LCD with control Board

7 inch 1280x800 touch screen LCD with control Board

7 inch 1280x800 touch screen LCD with control Board

7 inch 1280x800 touch screen LCD with control Board

Model NO.: K001218 VS-TYV2662-V1+N070ICG-LD1+VS070TP-A8

Quantity:

Product Description

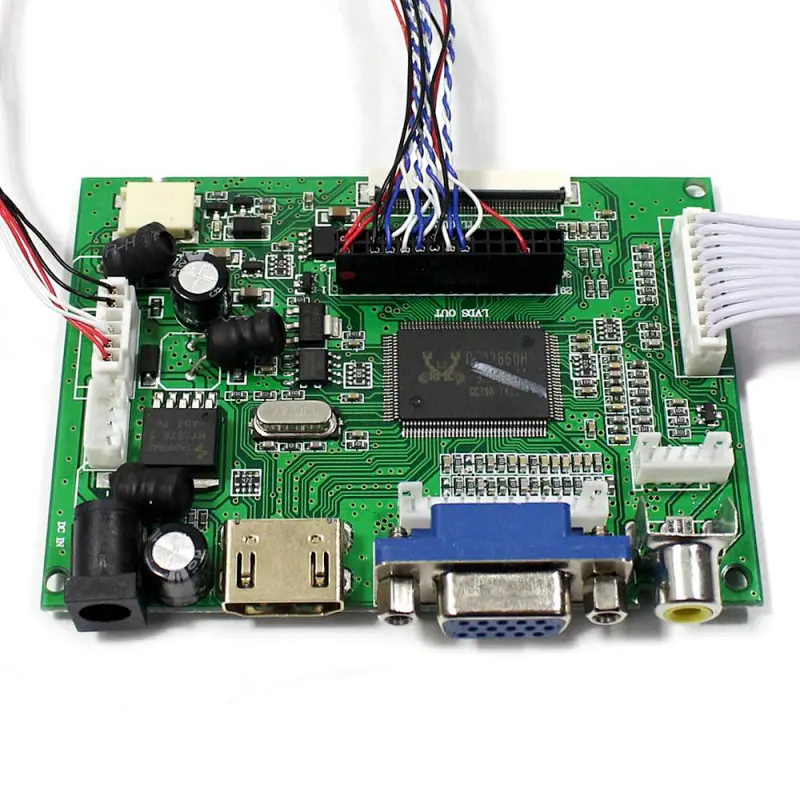

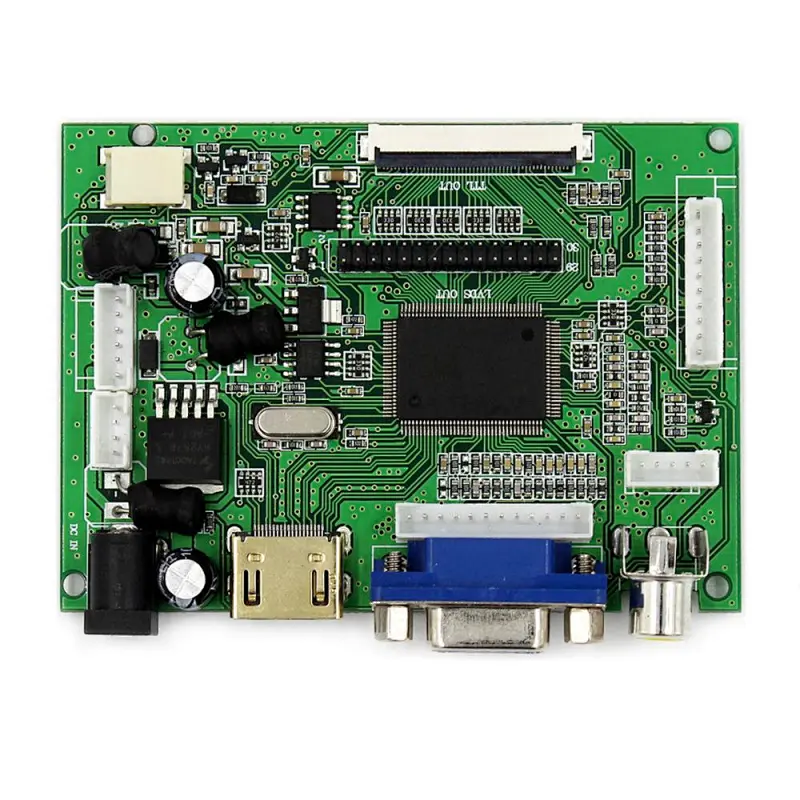

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
7"N070ICG-LD1 1280X800 LCD Screen:
Display Mode HS-IPS, Normally Black, Transmissive
Resolution 1280RGB)×800
Outline Size 161 ×107×4.5 (H×V×D)
Display Area 149.76 × 93.6 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 39 pins
Backlight LED
Input Voltage 3.3V (Typ.)

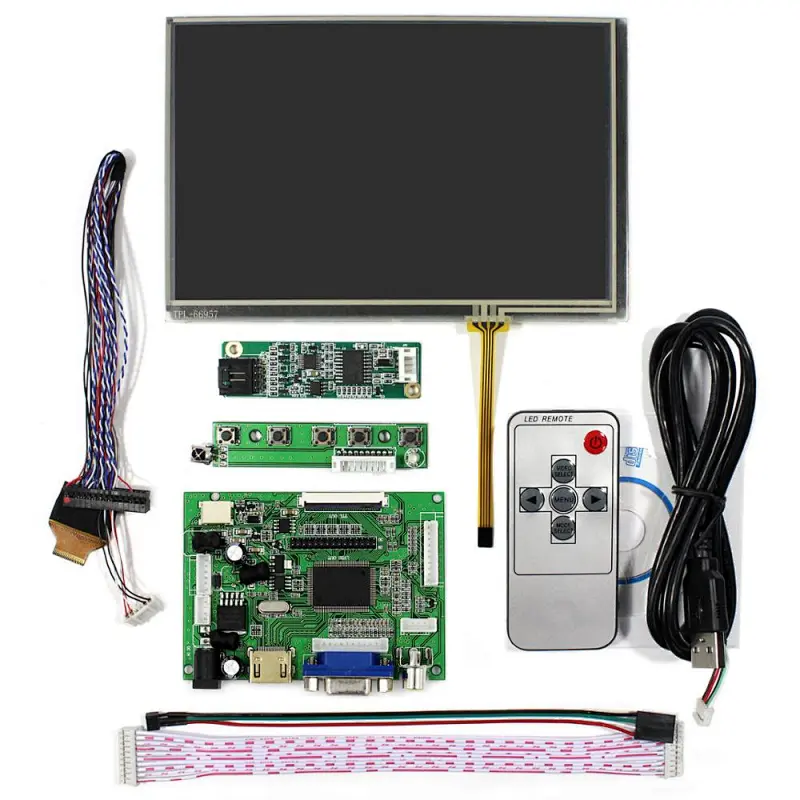

Packing list :
1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
1× 7inch N070ICG-LD1 1280X800 LCD With Touch Panel
1× LVDS Cable
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
