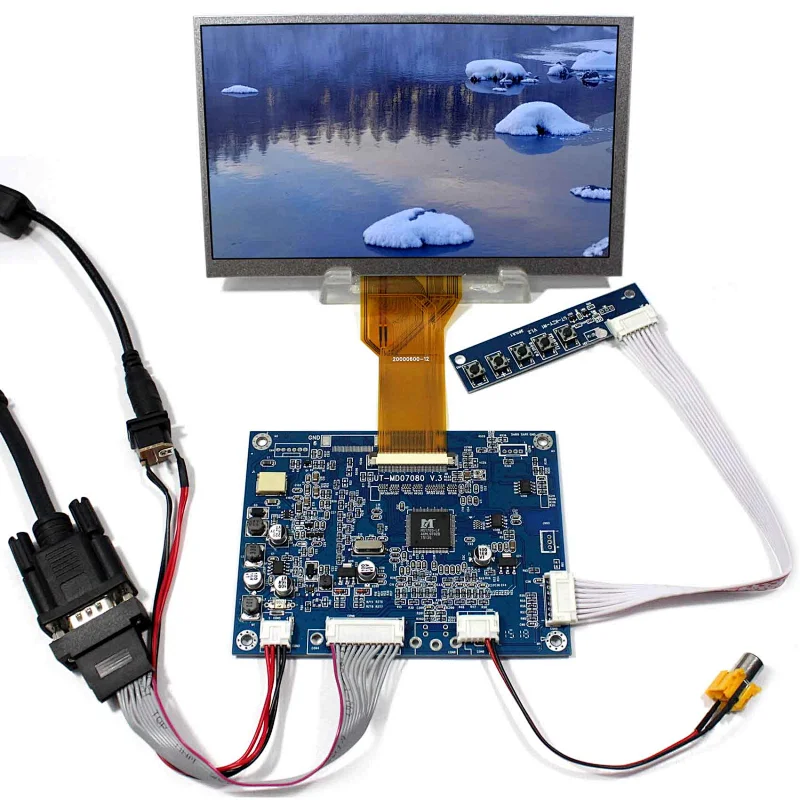

7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2
7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2

7 inch 800x480 lcd tft AT070TN92 with VGA AV LCD Controller Board VS-MD07080V.2

Model NO.
K000199 VS-MD07080V.2+AT070TN92
Quantity:

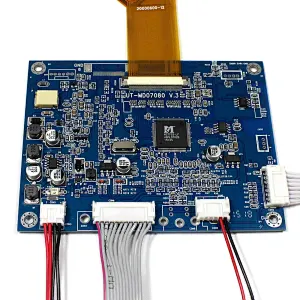

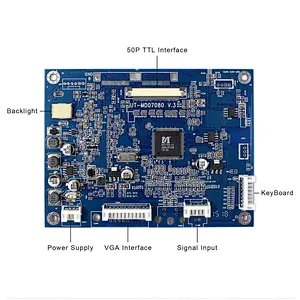

  • LCD Controller Board:
    VGA AV LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:114mm x 87mm x 12mm
  • 7"AT070TN92 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800(RGB)×480
    Outline Size 165.2 × 96.62×5.7 (H×V×D)
    Display Area 154.08 × 85.92 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

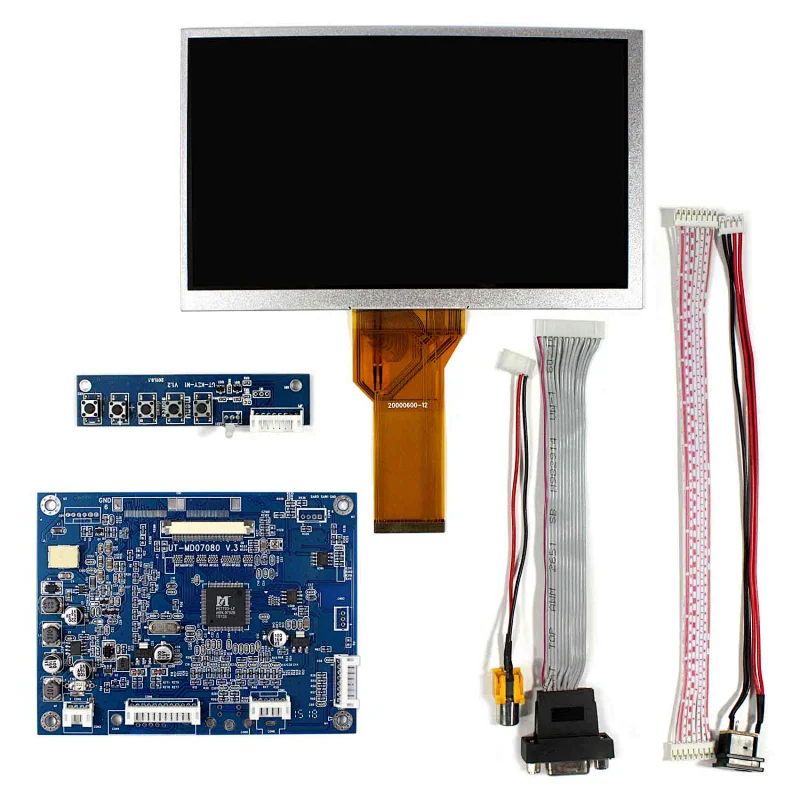

  • Packing list :
    1× VGA AV LCD Controller Board VS-MD07080V.2
    1× 7inch AT070TN92 800X480 LCD LCD Screen
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× Keyboard With Cable
