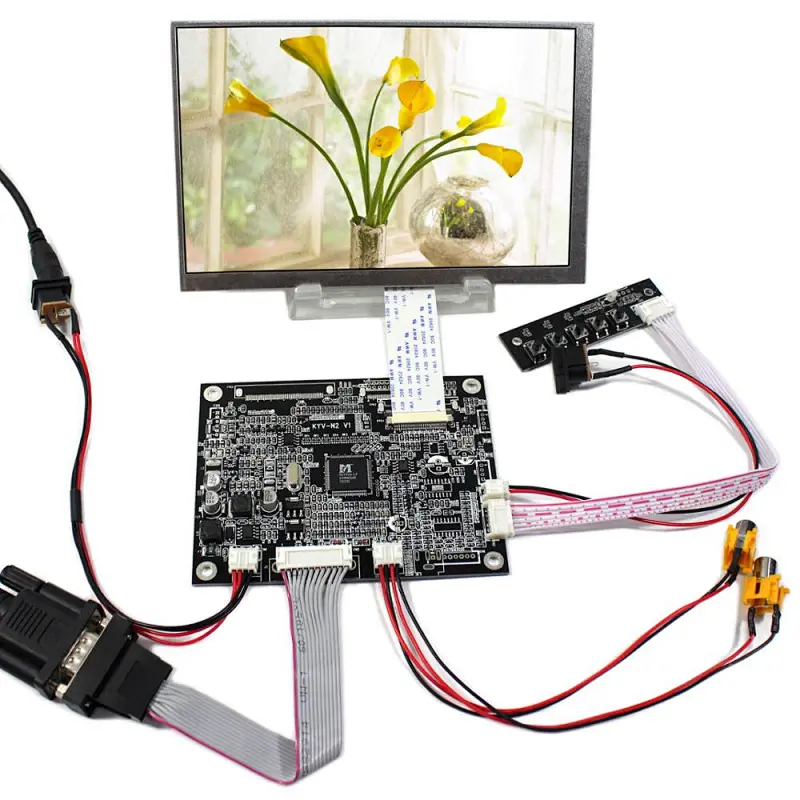

7" inch WVGA 800*(RGB)*480pixels with touch screen & TCON tft display RGB interface

Model NO.
K000201 AT070TN83+KYV-N2V1
Quantity:

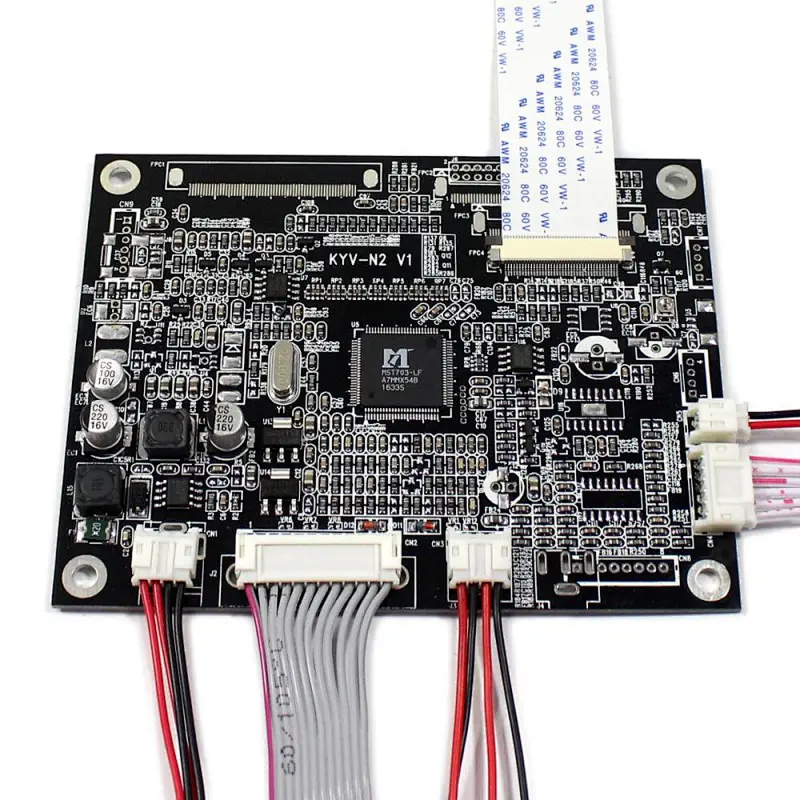

  • LCD Controller Board:
    VGA AV LCD Board Work for 40Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:110mm x 85mm x 10mm

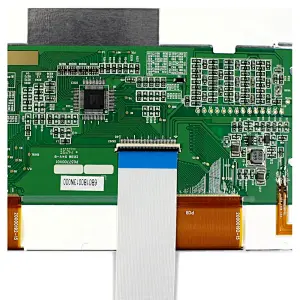

  • 7"AT070TN83 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 165 × 104×5.8 (H×V×D)
    Display Area 152.4 × 91.44(H×V)
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 6-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× VGA AV LCD Controller Board KYV-N2 V1
    1× 7inch AT070TN83 800X480 LCD Screen
    1× Power Supply Cable
    1× Reversing CableConnect To 12V Tt Auto switch To AV2)
    1× VGA Cable
    1× 2AV Cable
    1× Keyboard With Cable
