Model NO.
TY2662-V1+N070ICG-LD1(K001217)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
  • Place of Origin:CN;GUA
  • Model Number:TY2662-V1+N070ICG-LD1(K001217)
  • Brand Name:VS
  • Type:Lcm
  • MODEL NO:N070ICG-LD1
  • Dots Format:1280 (H) X 800 (V)
  • Driver Element:a-si TFT active matrix
  • Interface:LVDS
  • Backlight Type:Normally White LED, Transmissive
  • Product Name:IPS LCD
  • Backlight:WLED
  • LCD Controller Board:VS-TY2662-V1
  • Power Input:12v
  • Support:remote

LCD Controller Board VS-TY2662-V1 with remote control,7inch 1280x800 N070IC9-LD1 39pin IPS LCD panel

Product Description

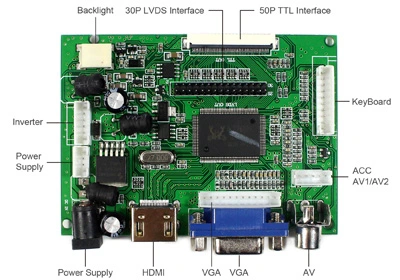

LCD Controller Board VS-TY2662-V1:

K001728(3)-4

It supports between 7 and 22 inch LCD panel with single /dual LVDS interface.

Support reversing function

Size: 90.58mm(L)*65.6mm(W)*12mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional) And So On

KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power

Operation temperature: 0~40°C.

standby< 1W

Panel Interface: 50PIN TTL/6Bit 8it Dual/Single LVDS interface

Panel Resolution: Up to 1920x1080

7inch LCD Screen N070ICG-LD1(39PIN) :

Display Mode: IPS, Normally Black, Transmissive

Panel Type: a-Si TFT-LCD , LCM


Resolution: 1280(RGB)×800[WXGA]

Aspect Ratio: 16:10(W:H)


Outline Size: 151.76(H)×95.6(V)x3.35(D)mm


Display Area: 149.76(H)×93.6(V)

Backlight type: WLED

Brightness: 400 cd/m² (Typ.)

Contrast Ratio: 800 : 1 (Typ.) (Transmissive)


Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)

Signal Interface: 39pins 0.3mm LVDS (1 ch, 8-bit)


Operating Temperature: -10 ~ 60 °C

Packaging & Shipping

K001217(2)

1× LCD Controller Board VS-TY2662-V1(Support Automatically switch to AV2)


1× 7inch 1280x800 IPS LCD panel N070ICG-LD1

1× 39Pin LVDS Cable

1× Keyboard with Wire

1× Remote Control (Battery not included Battery Model No CR2032)

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
