7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card
7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card
7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card
7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card
7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card
7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card
7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card
7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card
7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card

7inch 4 Wire Resistive Touch Panel 164.5X99mm for AT070TN92 USB Controller Card

Model NO.:
K000015 VS070TP-A5
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN;GUA
  • Display Size:7inch
  • Model Number:K000015 VS070TP-A5
  • Brand Name:VS
  • Type:TFT
  • Dimension Size:164.5mm x 99.6mm
  • Display Area:154mm x 86mm
  • FPC connector:4pin 0.5mm pitch bottom contact
  • Payment:Union.Paypal TT
Products Show
Product Description

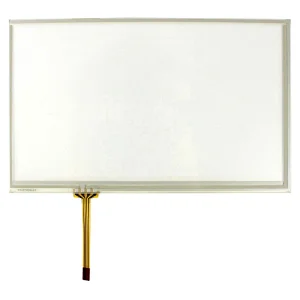

7inch 4-Wire Resistive Touch Panel Screen VS070TP-A5

Product name:
7inch 4-Wire Resistive Touch Panel Screen VS070TP-A5
Dimension Size:
164.5mm x 99.6mm
Display Area:
154mm x 86mm
FPC connector:
4pin 0.5mm pitch bottom contact

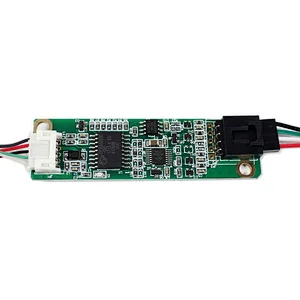

USB Type Controller:
Dimension Size: 71mm x 20mm x 10mm

Power Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)

Operating Temperature 0 to 50°C

Storage Temperature -40 to 80°C

Relative Humidity 95% at 60°C

Interface USB 1.1 & 2.0

Resolution 2048×2048 resolution

Report rate USB Model: Max. 160 points/sec

Response time Max. 20 ms

Attached Cable 6' shielded cable with USB-A connector for USB port

Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices

EMI Unaffected by environmental EMI

Panel resistance 4 wire resistive model: 200 ~ 900 ohm

MTBF 200,000 hrs

PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+

Packing list :
1× 7inch 4-Wire Resistive Touch Panel Screen VS070TP-A5

1× 4-Wire USB Controller Card

1× USB Cable

1× Converter Cable

1× CD (Driver for touch control card Support LINUX Windows CE XP and Win7)
