7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

7inch 4-Wire Touch Panel With USB Driver Card 163.5x99mm for 16:9 LCD Screen

Model NO.: K000009 VS070TP-A1
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1
Country of Origin:: CHINA
Stock Time:: 3-7days Days

Quantity:

Product Description

Description:

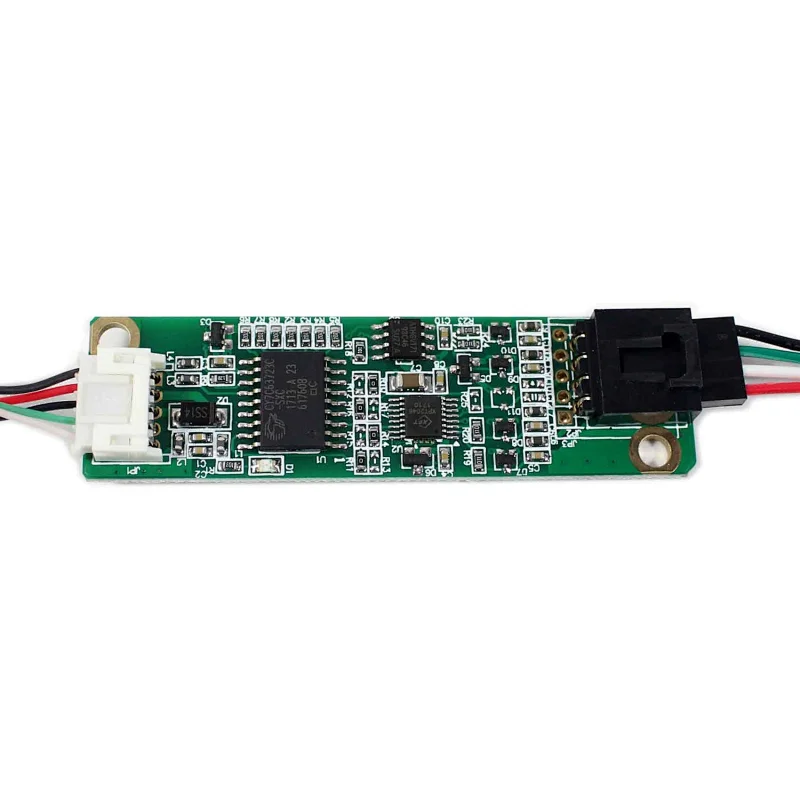

USB Type Controller
Dimension Size: 71mm x 20mm x 10mm
Power Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)
Operating Temperature 0 to 50°C
Storage Temperature -40 to 80°C
Relative Humidity 95% at 60°C
Interface USB 1.1 & 2.0
Resolution 2048×2048 resolution
Report rate USB Model: Max. 160 points/sec
Response time Max. 20 ms
Attached Cable 6' shielded cable with USB-A connector for USB port
Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices
EMI Unaffected by environmental EMI
Panel resistance 4 wire resistive model: 200 ~ 900 ohm
MTBF 200,000 hrs
PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+
Touch Panel
Dimension Size: 163.5mm x 99mm
Display Area: 152.4mm x 91.44mm
FPC connector: 4pin 0.5mm pitch bottom contact

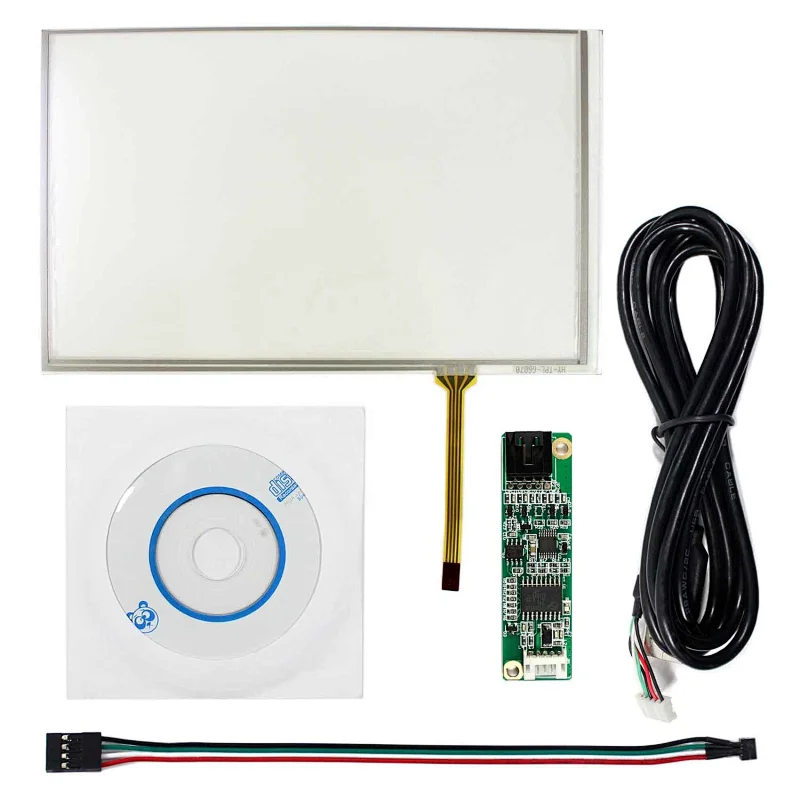

Packing list :
1× 7inch 4-Wire Resistive Touch Screen VS070TP-A1
1× 4-Wire USB Controller Card
1× USB Cable
1× Converter Cable
1× CD (Driver for touch control card Support LINUX Windows CE XP and Win7)
