Model NO.
K001187 VS-TY2662-V2+HSD070PWW1-C+TP
Quantity:

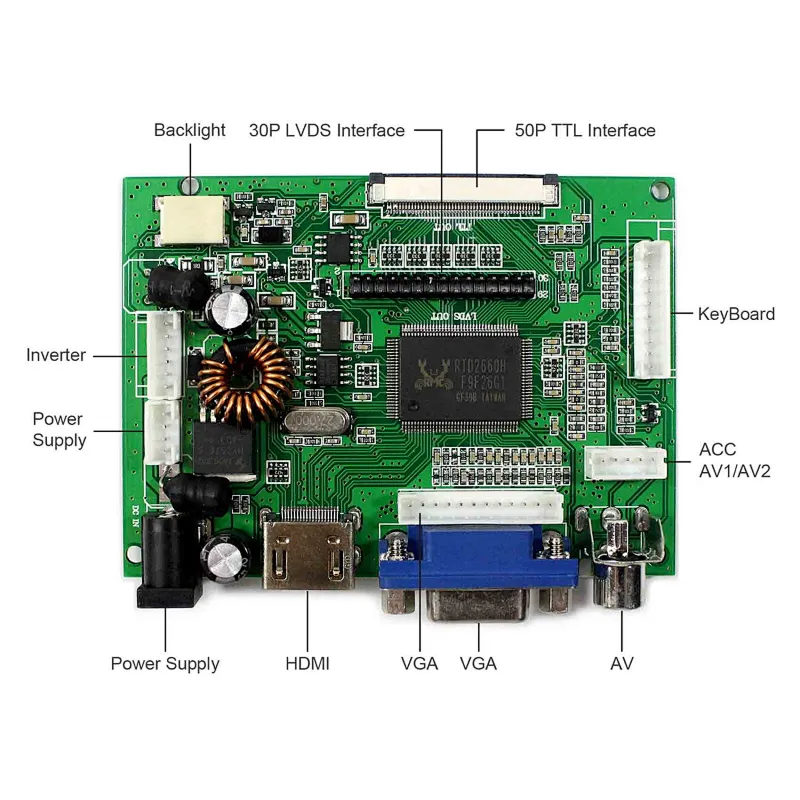

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:91mm x 66mm x 12mm
  • 7"HSD070PWW1-C00 1280X800 LCD Screen:
    Display Mode HS-IPS, Normally Black, Transmissive
    Resolution 1280RGB)×800
    Outline Size 161.6 ×105.8×5 (H×V×D)
    Display Area 150.72 × 94.2 (H×V)
    Brightness 690 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface  LVDS (1 ch, 6-bit) , Connector , 30 pins
    Backlight LED
    Input Voltage 3.3V (Typ.)

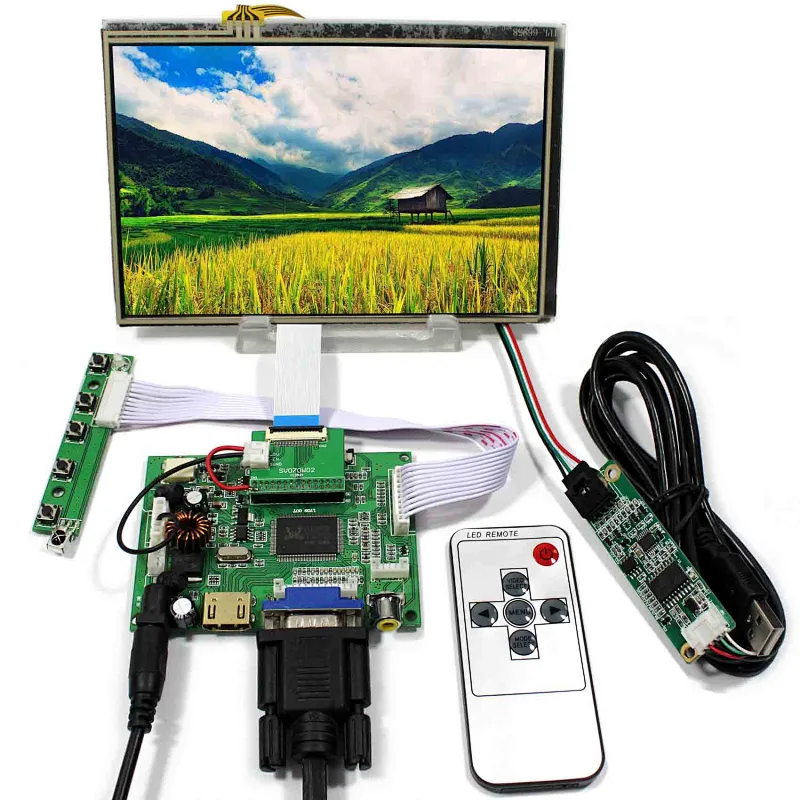

  • Packing list :
    1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 7inch HSD070PWW1-C00 1280X800 LCD With Touch Panel VS070TP-A9
    1× Converter Board
    1× LVDS Cable
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
