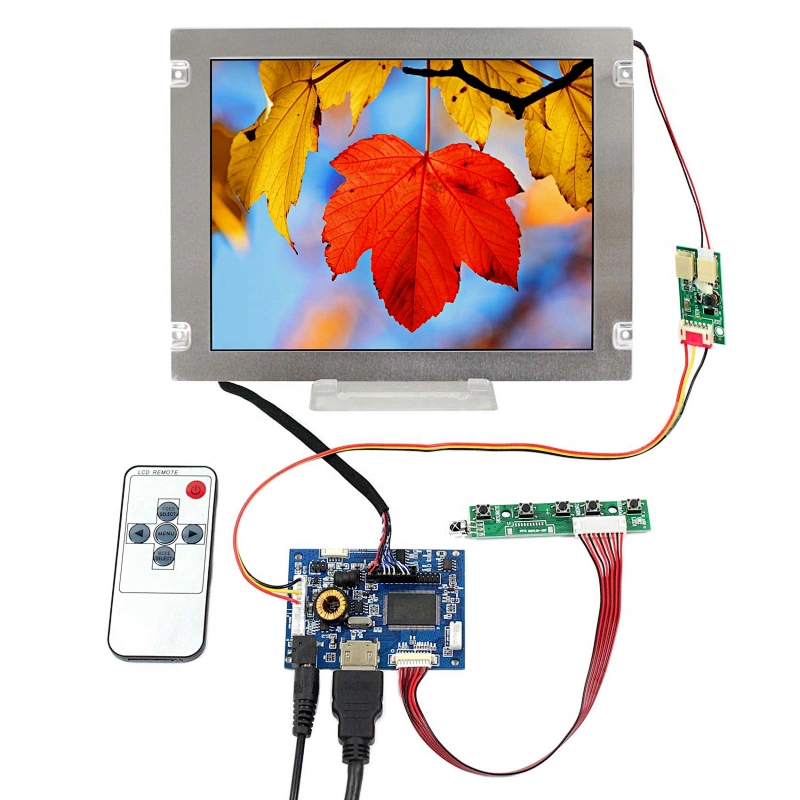

8.0" PD080SL3 800X600 Brightness 420nits LCD Screen with HD-MI LCD Controller Board

Model NO.
K002617 VS-TY2660H-V661+PD080SL3-22 800x600
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Product Name:8inch PD080SL3 800X600
  • Screen Size:8inch
  • Video Input:HD-MI
  • Display Mode:TFT
  • Brightness:420 cd/m²
  • Contrast Ratio:400:1
  • Signal Interface:LVDS (1 ch, 6/8-bit), 20Pins Connector
  • Backlight:WLED
  • Payment:T/T
  • Viewing Angle:60/60/45/60 (Typ.)(CR≥10)
  • Place of Origin:CN;GUA
  • Type:Screen with Board
  • Display Size:8Inch
  • Model Number:K002617 VS-TY2660H-V661+PD080SL3-22 800x600
  • Brand Name:VS
Products Show
Product Description
LCD Screen:
8.0"PD080SL3 800X600 LCD Screen
Details:
Display New Mode TN, Normally White, Transmissive

Resolution 800(RGB)x600

Outline Size 200x152x10.8 (HxVxD)mm

Display Area 162x121.5 (HxV)mm

Brightness 420 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/45/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

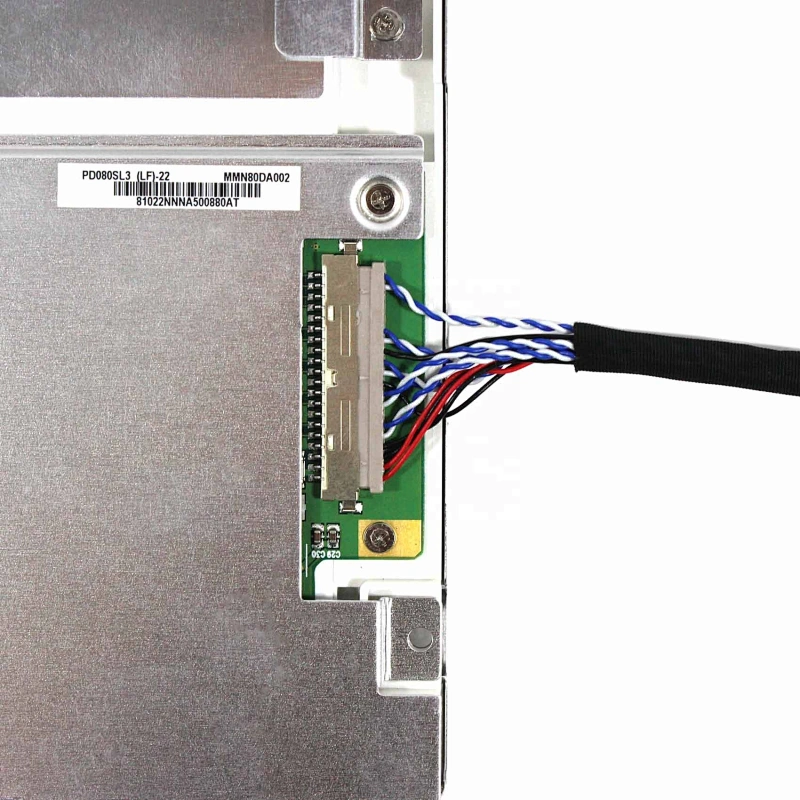

Signal Interface LVDS (1 ch, 6/8-bit), 20Pins Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

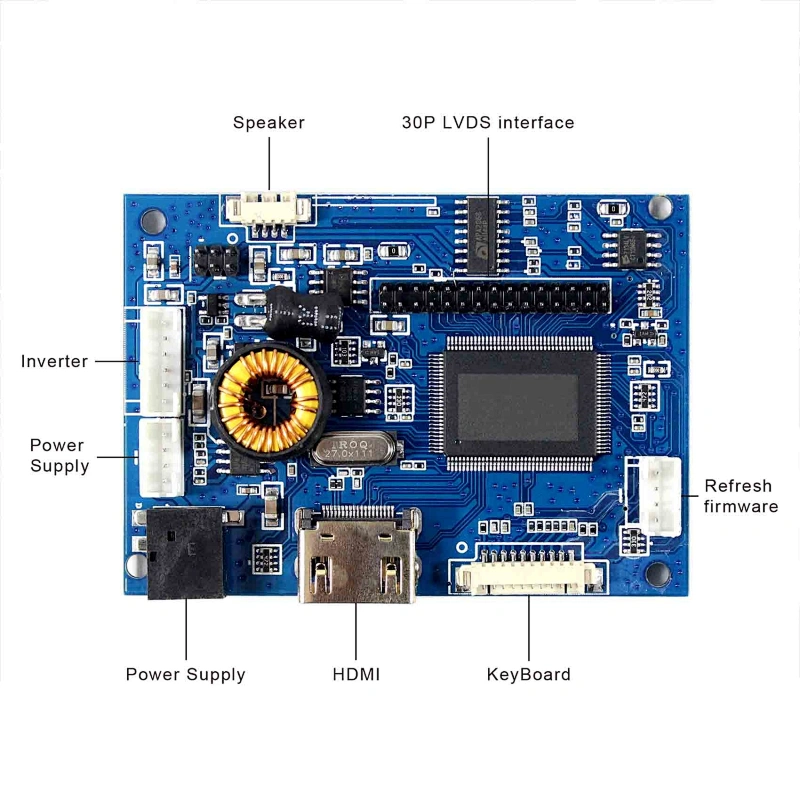

Controller Board:
HDMI LCD Board Work for LVDS Interface LCD Screen
Details:

Input Power Adapter: 12Vdc More than 5A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI

Audio Input: HDMI

Audio Output: Speaker (4Pin PH1.0 connector)

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 74mm x 53mm x 12mm

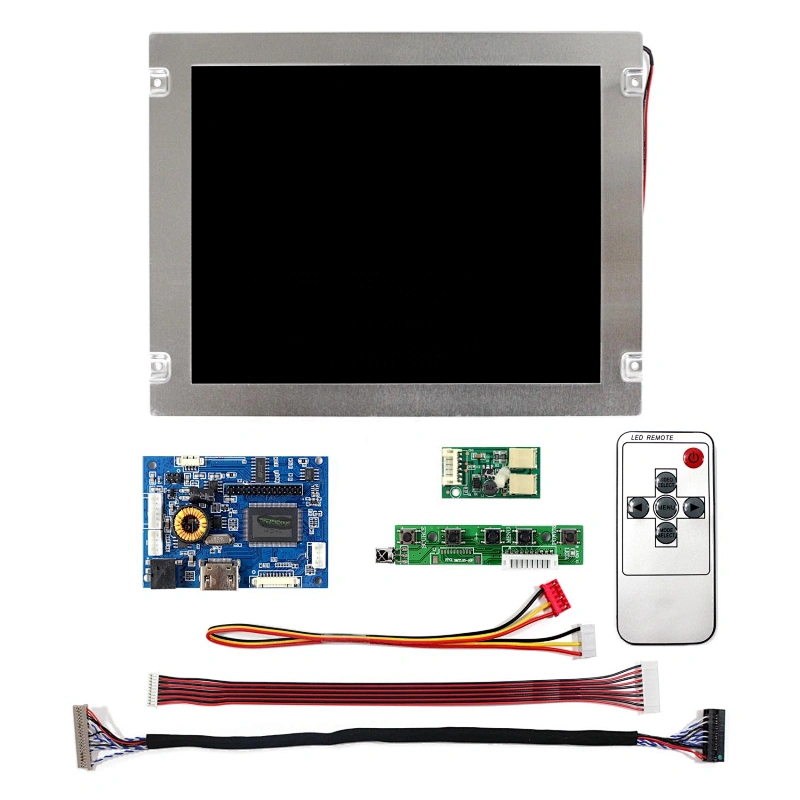

Packing list:
1× HDMI Audio LCD Controller Board VS-TY2660H-V661

1× 8inch PD080SL3 800X600 LCD Screen

1× 20Pins LVDS Cable

1× Inverter Board

1× Backlight Cable

1× Keyboard With Cable

1× Remote Control (Battery Not included)
Related Products
Hot Sales Product

More ^
5.5inch 2k for printer

More ^
4K Driver Board+LCD Panel

More ^
HDMI+DVI+VGA Controller Board M.NT68676.2A
Our Customer Product

Video Door Phone

16 x 4 LCD Module use for Video Door Phone

From Romania Customer

Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)

LCD Type : STN, POSITIVE

Driver IC : SPLC780D1

Backlight : YG LED

Supply Voltage : 5V

Favorable Comment

10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy

From Europe customer

LCD Size :10.4"

Resolution :800RGB)×600

Outline Size :236 × 174.3×4.9 (H×V×D)mm

Brightness :500 cd/m² (Typ.)

Signal Interface :LVDS (1 ch, 6-bit) , 20pins, Connector

Input Voltage : 3.3V (Typ.)



Our Company
VS DISPLAY TECHNOLOGY(HONGKONG) LTD is a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.
The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.
VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.
All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.
Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines QC system: ISO9001

Our Services

(1)We are factory for more than 10years in this field.We can provide customized products that you need.
(2)Sample deliver in 1-10 day(usually in 2 days),bulk order in 10 days or negotiation.
(3)Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
(3)One year warranty from the day the product sold. Some technical issue can be solved online.
(4)We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
(5)Shipping: DHL, UPS, FedEx, TNT, EMS, HongKong Post.
(6)Payment: T/T HSBC, Paypal, Western Union.
(7)If you need any products, please send me your requirement quantity,address,contact person,email and phone number, then, we will give you commercial invoice to comfirm.pls feel free to contact us as below:market01@vslcd.com(Skype)
VSDISPLAY
CLASS 9:
Adapter plugs; Alarm monitoring systems; Blank integrated circuit cards; Computer peripheral devices; DVD players;Electric control panels; Electric luminesecent display panels; Electronic notice board; Integrated circuits; Laptop computers; LCD monitors for security pruposes; Portable media players; Power adapters; Printed circuit boards(PCBs); Protective films adapted for computer screens; Smart watches; Tablet computers; Video monitors; Video screens; Video telephones
Workshop
Our Customer visit Factory
Electronic Exhibitions

WareHouse

Thousands of goods include the LCD, AD Board, Touch Panel, Cable etc.

Each item have SKU No. Standard goods always have goods in stock.

Our Certifications
Packing & Delivery

Packing Details :

Packing with standard export box, it also can package as your request.

Delivery Details :

3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register.
