FPC:40pin 0.5mm pitch
LED Backlgiht: White LED with ROHS compliance
Panel mode:tft lcd
Lcd Controller Board:VS-TY2662-V5
support:higher brightness lcd

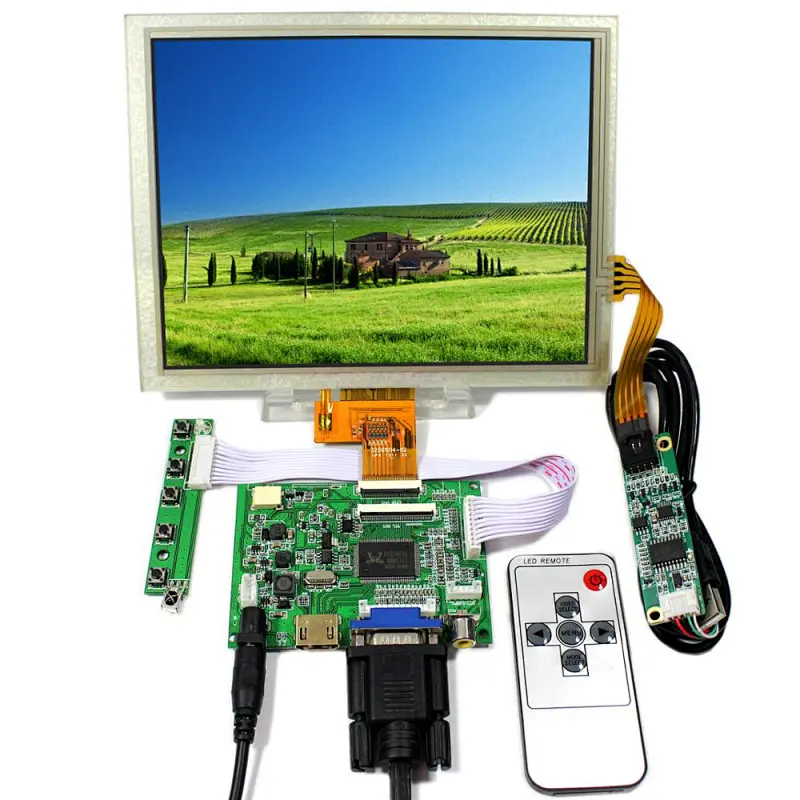

LCD Controller Board for higher brightness lcd ,8inch 1024x768 LCD panel with touch panel

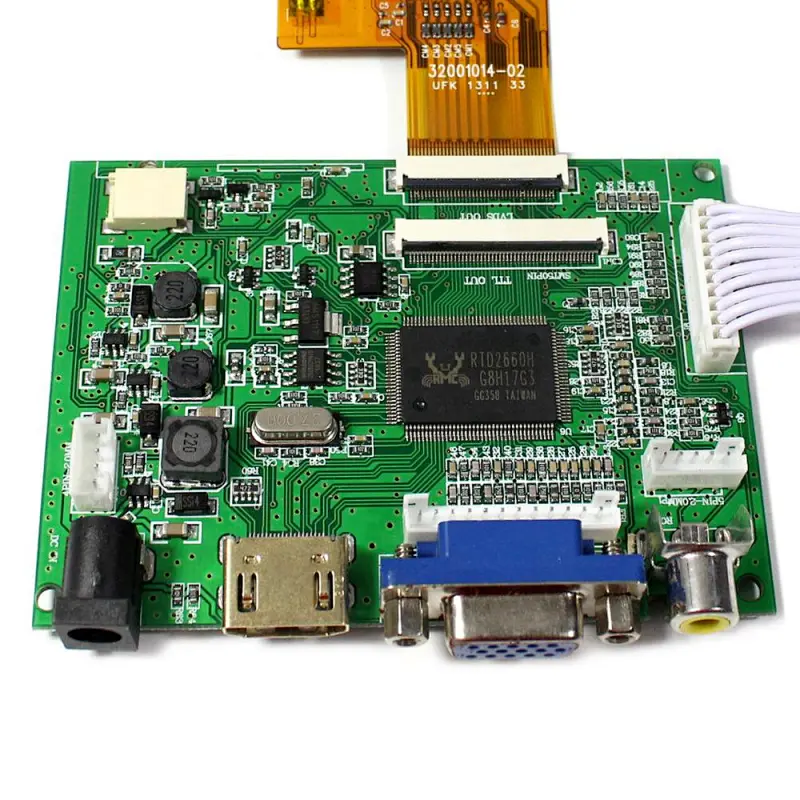

LCD Controller Board VS-TY2662-V5:
Supports between 7 and 10.1 inch LCD panel with 40pin 50pin TTL interface.
This board is for higher brightness lcd.
Input Power Adapter: 12Vdc More than 2A
OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese,Korean (optional) And So On
KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power
Operation temperature: 0~40°C.
Panel Interface: 40pin 50pin TTL
Panel Resolution: Up to 1920x1080
Don’t wire in the board to power supply before panel is correctly connected
8inch 1024x768 LCD Screen EJ080NA-04C :
Display Mode: TN,Normally White, Transmissive
Panel Type: a-Si TFT-LCD , LCM
Aspect Ratio: 4:3(W:H)
Outline Size: 183(H)×141(V)x3.4(D)mm
Display Area: 162.048(H)×121.536(V)
Backlight type: WLED
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 700 : 1 (Typ.) (Transmissive)
Viewing Angle: 75/75/75/75 (Typ.)(CR≥10)
Signal Interface: 40pins LVDS (1 ch, 6/8-bit)
Operating Temperature: -10 ~ 50 °C

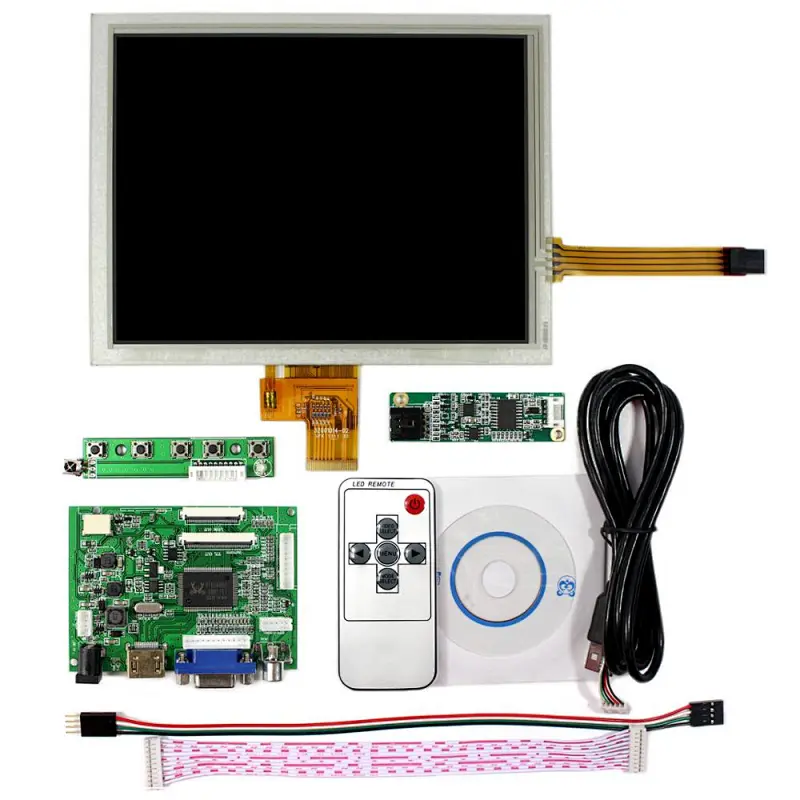

Packaging & Shipping
1× LCD Controller Board VS-TY2662-V5
1× 8inch 1024*768 EJ080NA-04CLCD panel with touch panel VS080TP-A2
1× USB port touch panel controller card
1× USB Cable
1× CD Driver for touch control card Support LINUX Windows CE XP and Win7
1× Keyboard with wire
1× Remote control (Battery not included. Battery Model No CR2032)
1 year warranty from the day the product sold. Some technical issue can be solved online.
Trade Term:EXW Shenzhen or FOB Shenzhen
Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post
Payment:T/T HSBC, Paypal, Western Union
