Model NO.
K002103 VS084TP-A1+ with USB
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:Touch Panel
  • Dimension Size:187mm x 141mm
  • Display Area:172mm x 129.5mm
  • FPC connector:4pin 0.5mm pitch bottom contact.
  • Size:8.4 Inch
  • Application:Industrial Application
  • Touch panel:Resistive Touch Panel
  • Interface Type:USB/I2C
  • Payment:PaypalTTWestern UnionCredit Card
  • Keyword:Lcd Display Touch Screen
  • Place of Origin:CN
  • Type:Touch Screen
  • Display Size:8.4inch
  • Model Number:K002103 VS084TP-A1+ with USB
  • Brand Name:VS
Products Show
Product Description
Product Name:
8.4inch 4-Wire Resistive Touch Screen VS084TP-A1
Details:

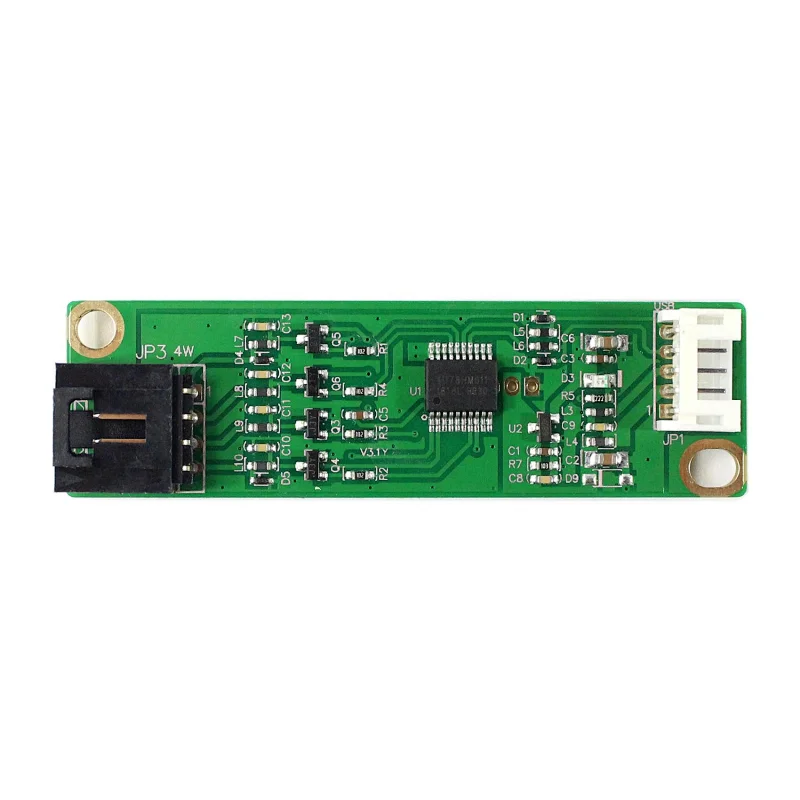

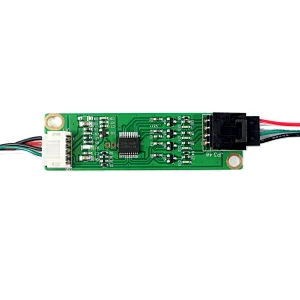

USB Type Controller

Dimension Size: 71mm x 20mm x 10mm

Power Requirements D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)

Operating Temperature 0 to 50°C

Storage Temperature -40 to 80°C

Relative Humidity 95% at 60°C

Interface USB 1.1 & 2.0

Resolution 2048×2048 resolution

Report rate USB Model: Max. 160 points/sec

Response time Max. 20 ms

Attached Cable 6' shielded cable with USB-A connector for USB port

Regulatory Approvals FCC-B , CE, Unaffected by EMI from other nearly and other display devices

EMI Unaffected by environmental EMI

Panel resistance 4 wire resistive model: 200 ~ 900 ohm

MTBF 200,000 hrs

PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+

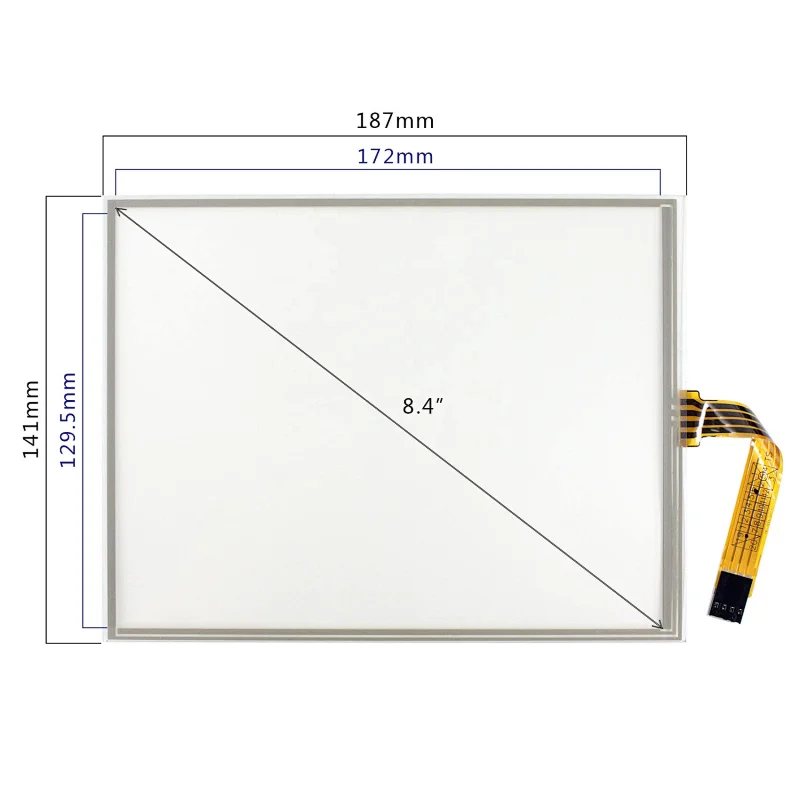

Touch Panel

Dimension Size: 187mm x 141mm

Display Area: 172mm x 129.5mm

FPC connector: 4pin 0.5mm pitch bottom contact.

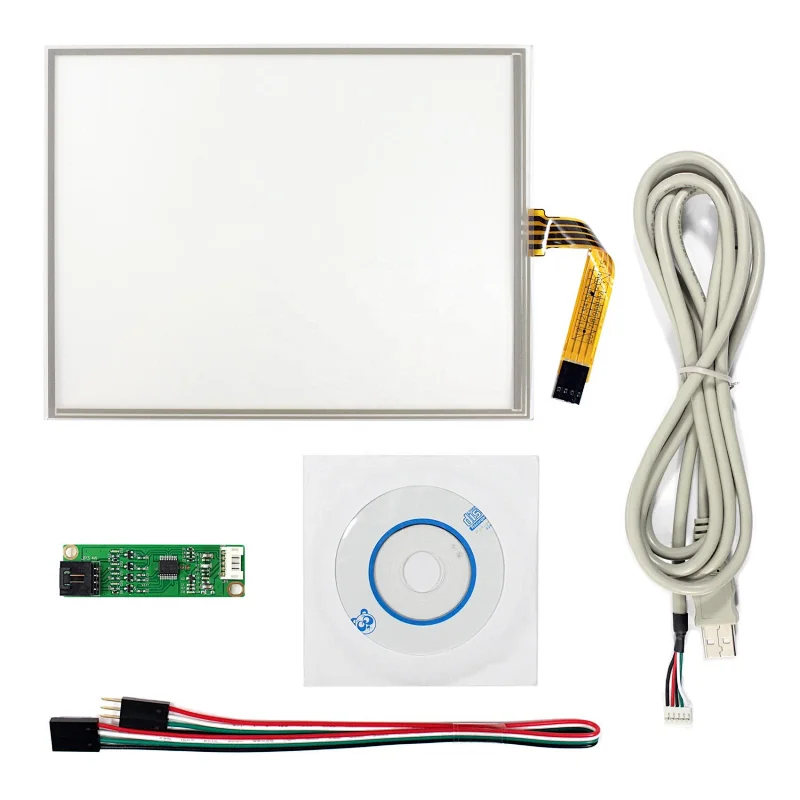

Packing list:
1× 8.4inch 4-Wire Resistive Touch Screen VS084TP-A1

1× 4-Wire USB Controller Card

1× USB Cable

1× Converter Cable

1× CD (Driver for touch control card Support LINUX Windows CE XP and Win7)
