8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module
8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module
8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module
8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module
8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module
8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module
8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module
8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module
8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module

8.9 inch 1600*2560 (2560*1600) MIPI IPS wholesale TFT LCD module

Model NO.
K001847 VS-MIPI089-V1+ 8.9" lcd
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Controller Board:
    HDMI Board Work for 60Pin/61Pin Mipi LCD Screen
    Input Power Adapter: 5Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Input: HDMI
    Output: Mipi
    OSD: Not support.
    Board Size: 71mm x 65mm x 5mm
  • 8.9"TFT08925601600 2560X1600 LCD Screen:
    Display Mode IPS, Normally Black, Transmissive
    Resolution 2560RGB)×1600
    Outline Size 200.3 × 132.1×3.43 (H×V×D)
    Display Area 192 × 120 (H×V)
    Brightness 500 cd/m² (Typ.)
    Contrast Ratio 1200:1 (Typ.) (TM)
    Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface 61 pins   MIPI (2 ch, 4 data lanes) , Connector
    Backlight  WLED
    Input Voltage  1.8V/3.3V (Typ.)

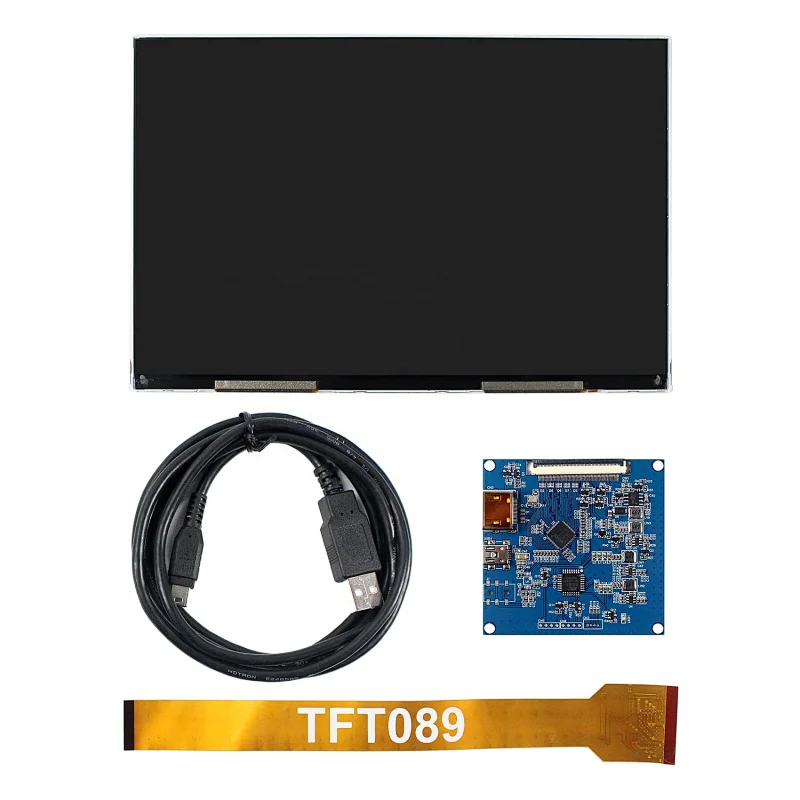

  • Packing list :
    1× HDMI LCD Controller Board VS-MIPI089-V1
    1× Power Supply Cable
    1×8.9inch TFT08925601600 2560x1600 IPS LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
