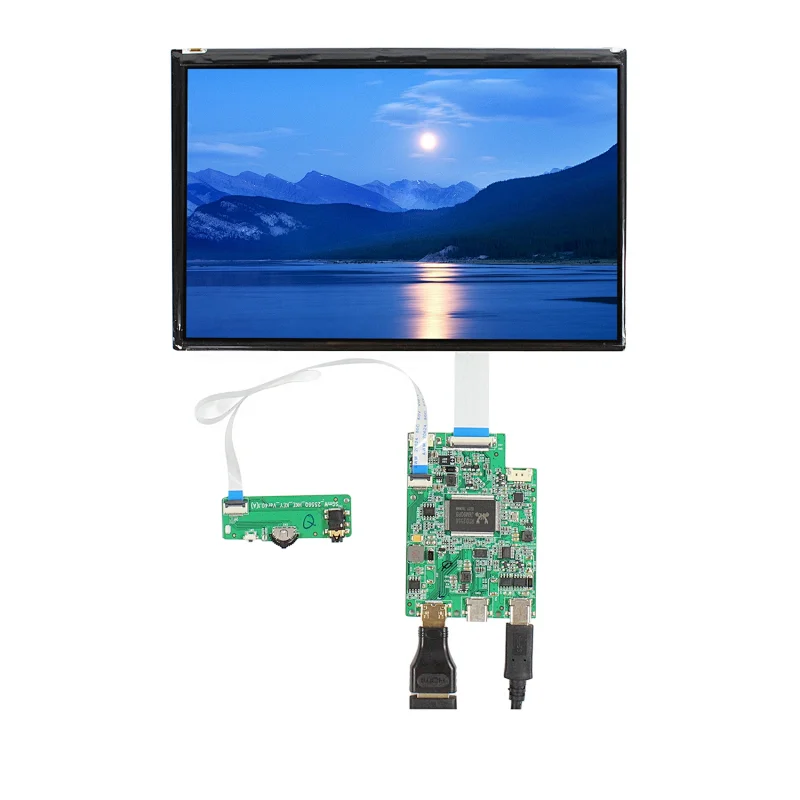

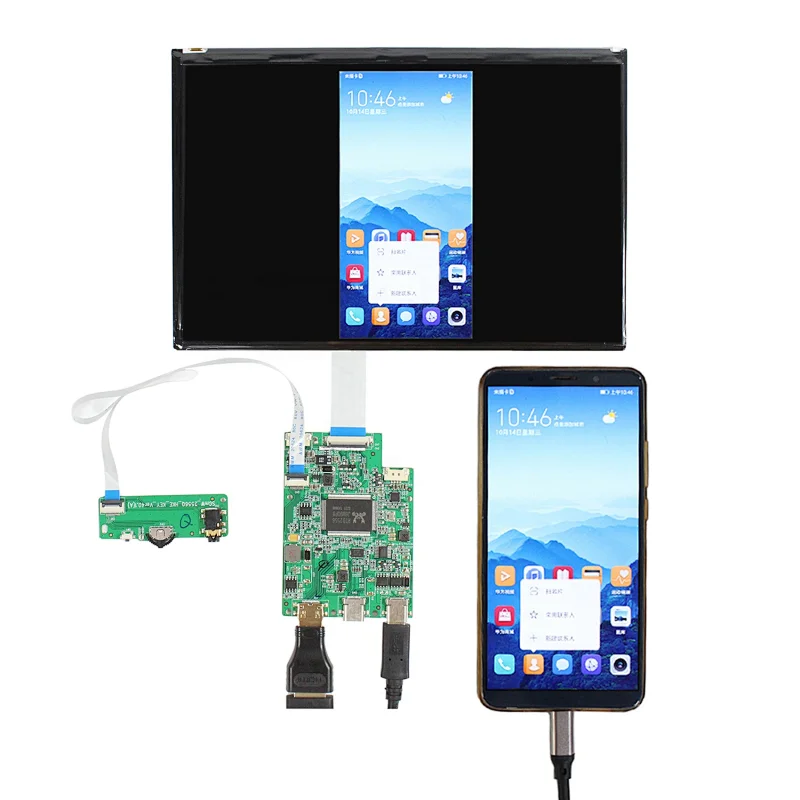

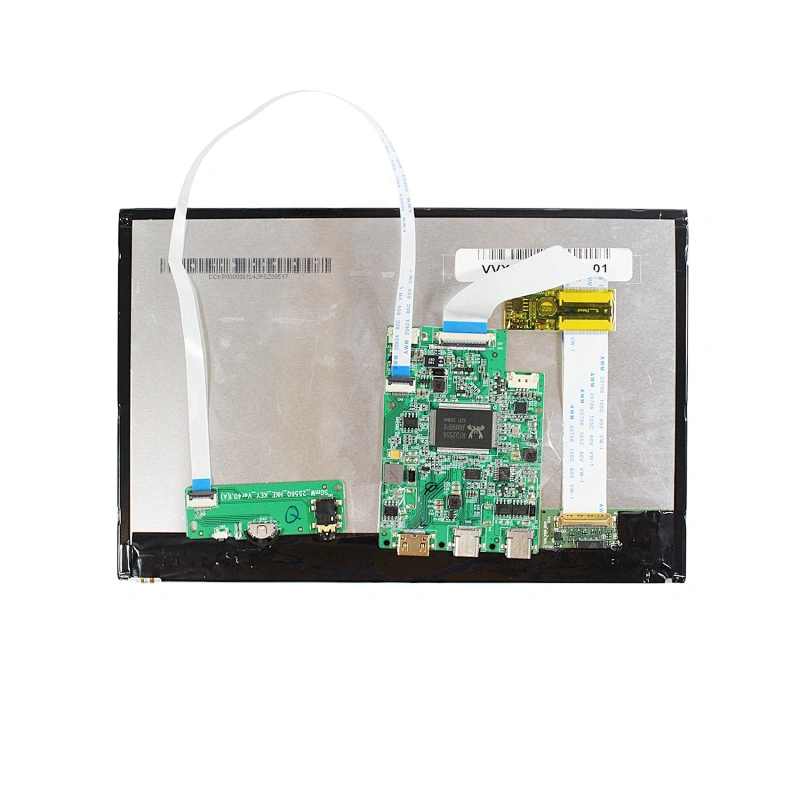

8.9" IPS VVX09F035M10 1920x1200 8inch eDP 30pins LCD Screen with HD MI Type C Controller Board

Model NO.
K002675 VS-RTD2556Type-C 30pin+VVX09F035M10
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

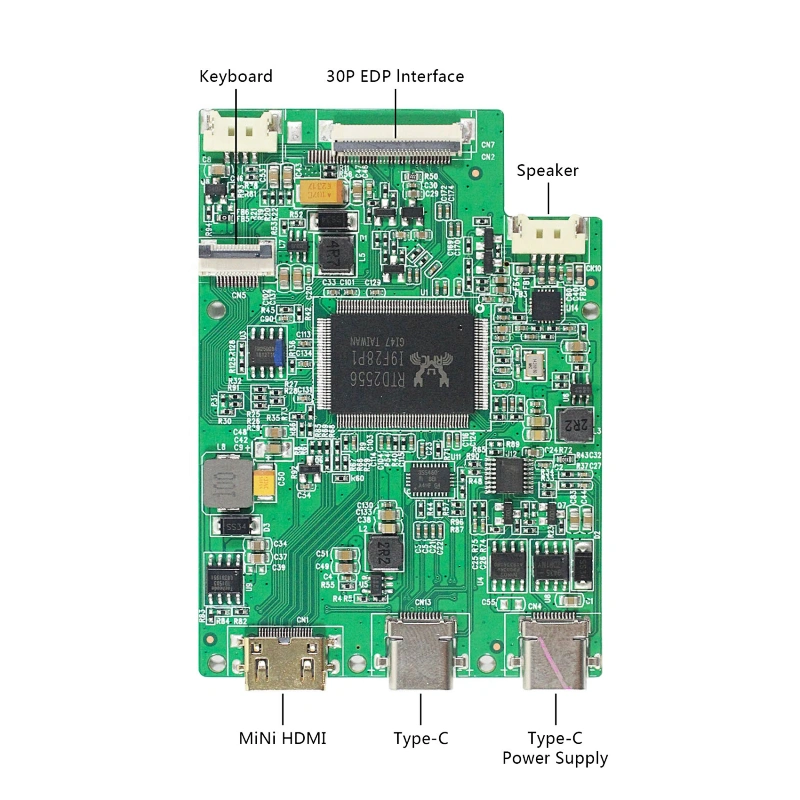

  • LCD Controller Board:
    HDMI Type C Control Board Work for 30Pin EDP LCD Screen
    Input Power Adapter: HDMI Type-C connector
    HDR: Support
    Come In Standby Model When Not Input Signal
    Audio Speaker
    Standby Model <0.3W
    Input: Type-C Mini HDMI
    Output: Type C USB(max 500mA)
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski Nederlands Korean Japanese

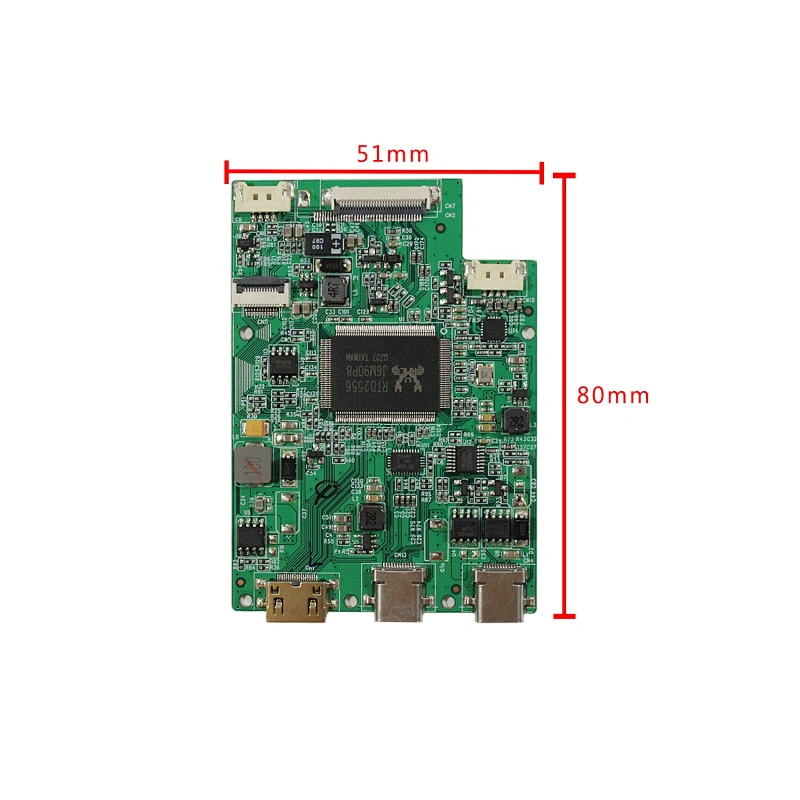

    Board Size: 80mm x 51mm x 8mm
  • 8.9"LCD Screen VVX09F035M10
    Display Mode IPS-Pro, Normally Black, Transmissive
    Resolution 1920RGB)×1200
    Outline Size 203.5(W)×135.9(H) ×4.8(D) mm
    Display Area 191.52(W)×119.7(H) mm
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface eDP (2 Lanes) , Connector , 30 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

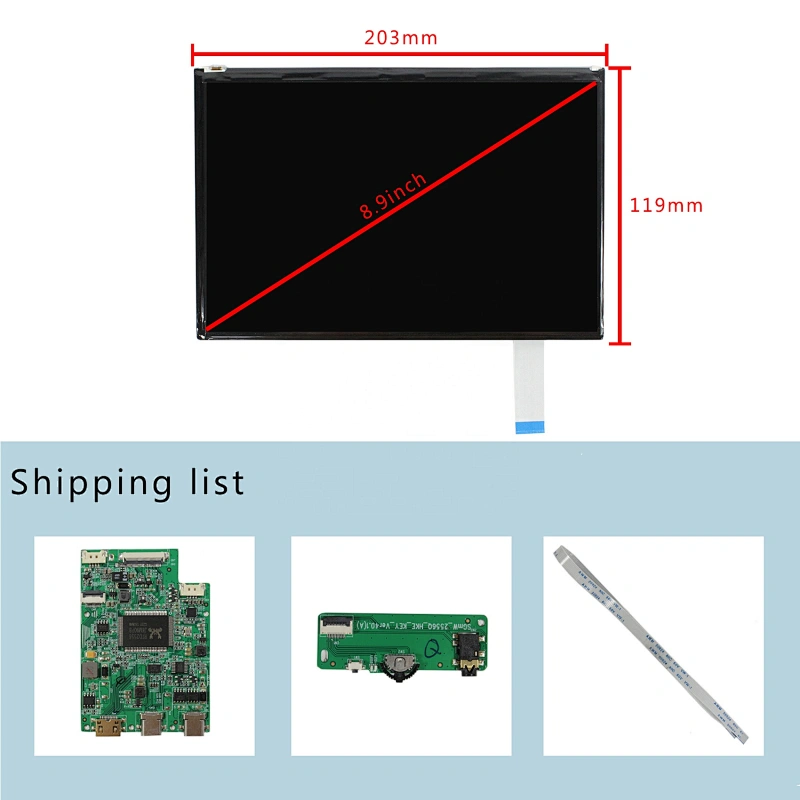

  • Packing list :
    1× HDMI TYPE-C LCD Controller Board VS-RTD2556HC30-V1
    1×8.9inch VVX09F035M10 1920X1200 IPS LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
