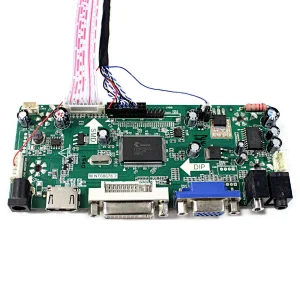

LCD Controller Board: HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: HDMI DVI VGA Audio Input: HDMI Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 125mm x 58mm x 17mm
8.9"1024x600 LCD Screen: Display Mode TN, Normally White, Transmissive Resolution 1024（RGB)×600 Outline Size 213.36 × 129.55×5.45(H×V×D) Display Area 195.072× 113.4 (H×V) Brightness 200 cd/m² (Typ.) Contrast Ratio 400:1 (Typ.) (TM) Viewing Angle 45/45/60/45 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins Backlight WLED Input Voltage 3.3V (Typ.)

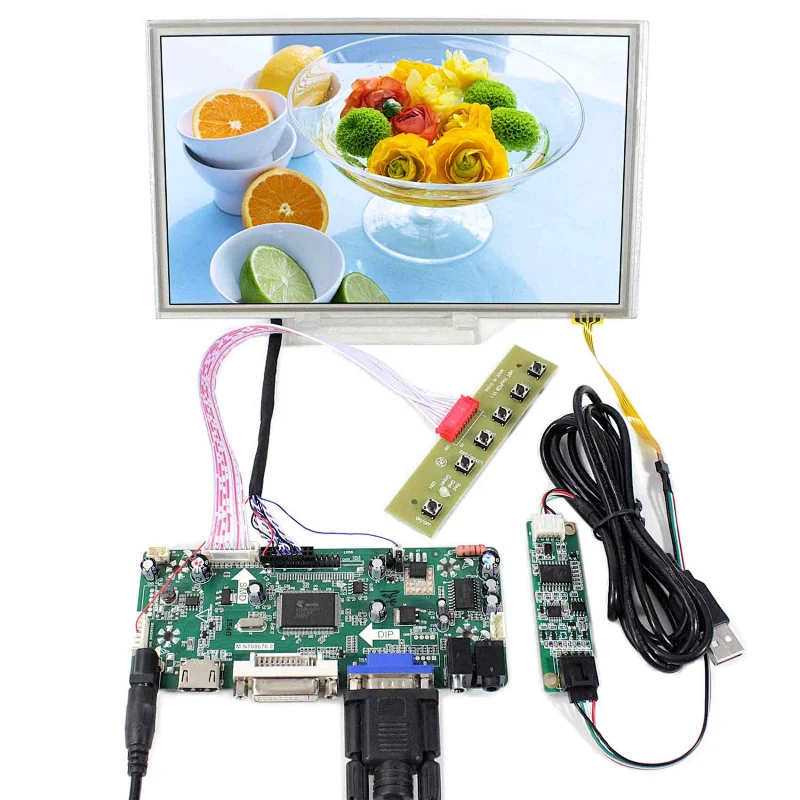

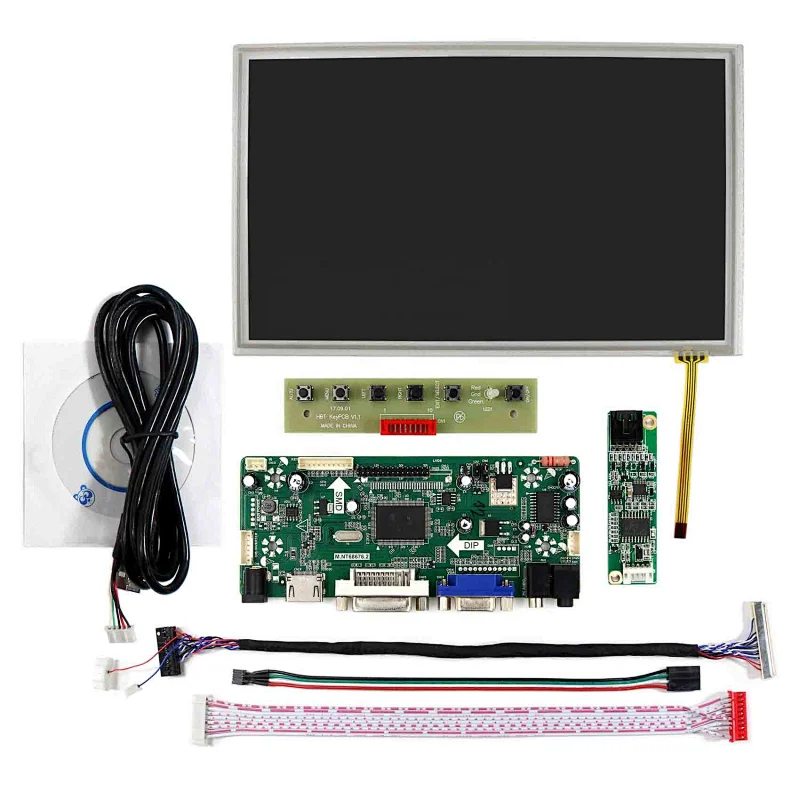

Packing list : 1× HDMI VGA DVI LCD Controller Board M.NT68676 1× 8.9inch 1024X600 LCD Screen (One of N089L6-L01 N089L6-L02 N089L6-L03 HSD089IFW1 HSD089IFW2 HSD089IFW3 B089AW01 V3 LTN098NT01 LP089WS1) With Resistive Touch Panel VS089TP-A1) 1× LVDS Cable 1× USB Controller Card 1× USB Cable 1× Extend Touch Cable 1× Keyboard With Cable
