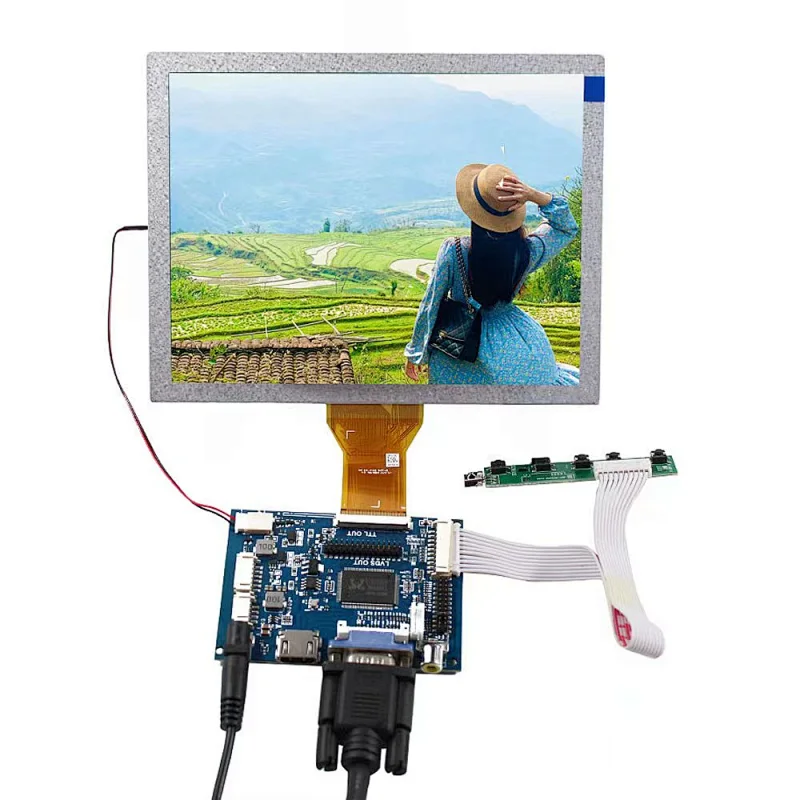

8" EJ080NA-05A 800X600 LCD Screen with HDMI Control Board

LCD Controller Board:

HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen

50Pin TTL Connector for 7inch~10.1inch LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:91mm x 66mm x 12mm

8" EJ080NA-05A 800X600 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 800 (RGB)×600

Outline Size 183 × 141×5.9 (H×V×D)

Display Area 162 × 121.5 (H×V)

Brightness 250 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC

Backlight WLED

Input Voltage 3.3V (Typ.)

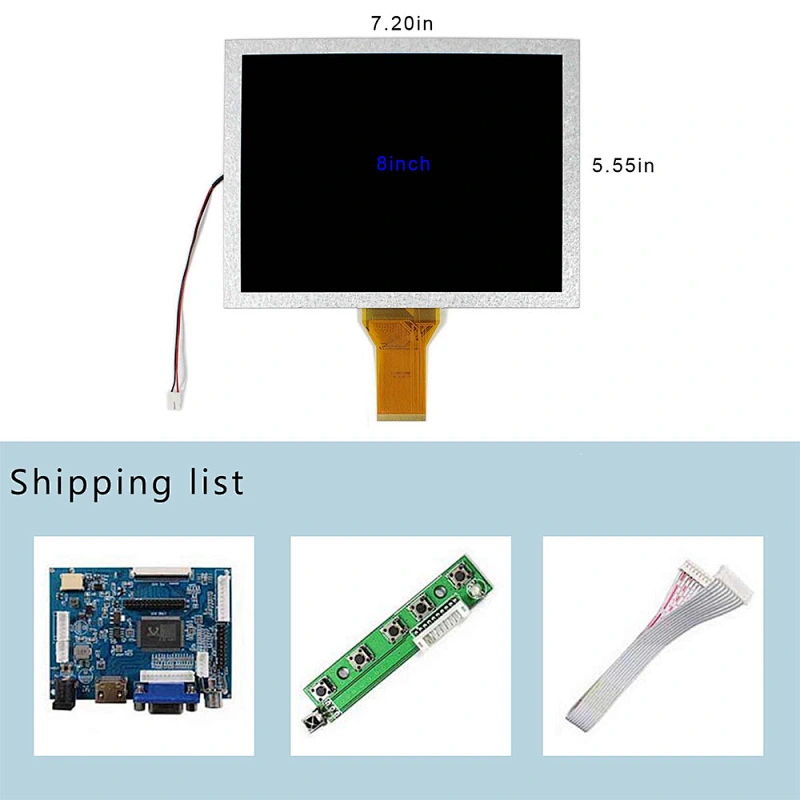

Packing list :

1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1

1× 8inch EJ080NA-05A 800X600 LCD Screen

1× Keyboard With Cable
