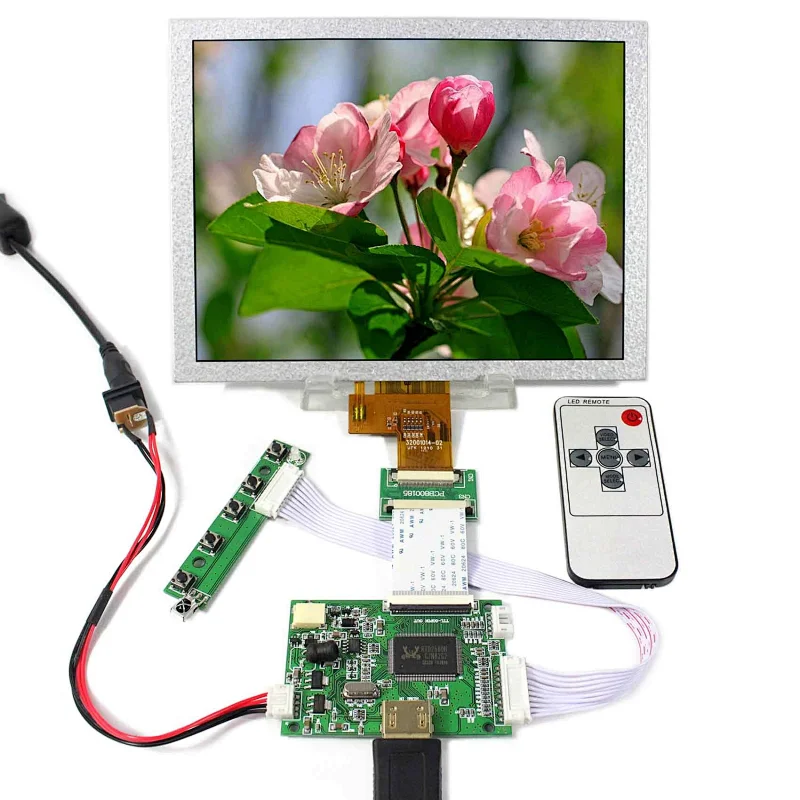

8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board
8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board

8inch 1024x768 resolution tft lcd, VSTY50V2 LCD Controller board

Model NO.
K000667 VS-TY50-V2+EJ080NA-04C+Remote
Quantity:

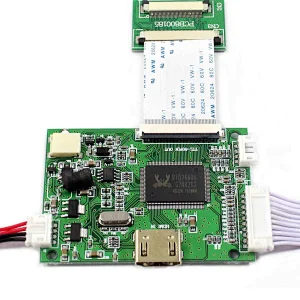

  • LCD Controller Board:
    HDMI LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:5Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:70mm x 50mm x 8mm
  • 8"EJ080NA-04C 1024X768 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024（RGB)×768
    Outline Size 183 × 141×3.7 (H×V×D)
    Display Area 162× 121.5(H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

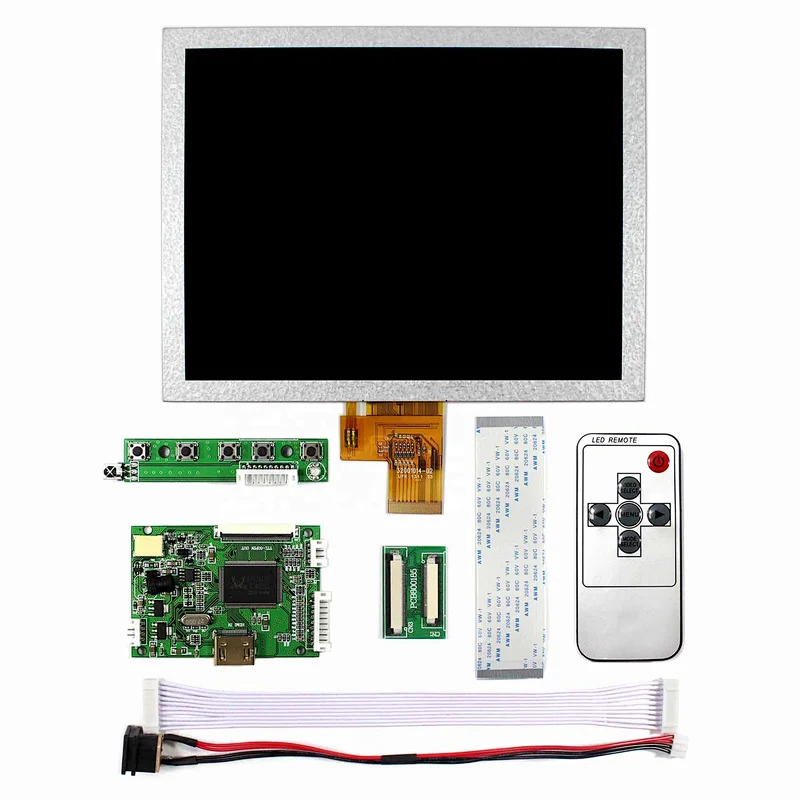

  • Packing list :
    1× HDMI LCD Controller Board VS-TY50-V2
    1× 8inch EJ080NA-04C 1024X768 LCD Screen
    1× VGA Cable
    1× AV Signal Cable
    1× 50Pin To 40Pin Converter Board
    1× Power Supply Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
