8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel
8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel

8inch LCD Display 1024x768 Resolution LCD Controller Board with Capacitive Touch Panel

Model NO.
K001809 VS-2660H-V1+EJ080NA-04C+VS080TC01-A1
Quantity:

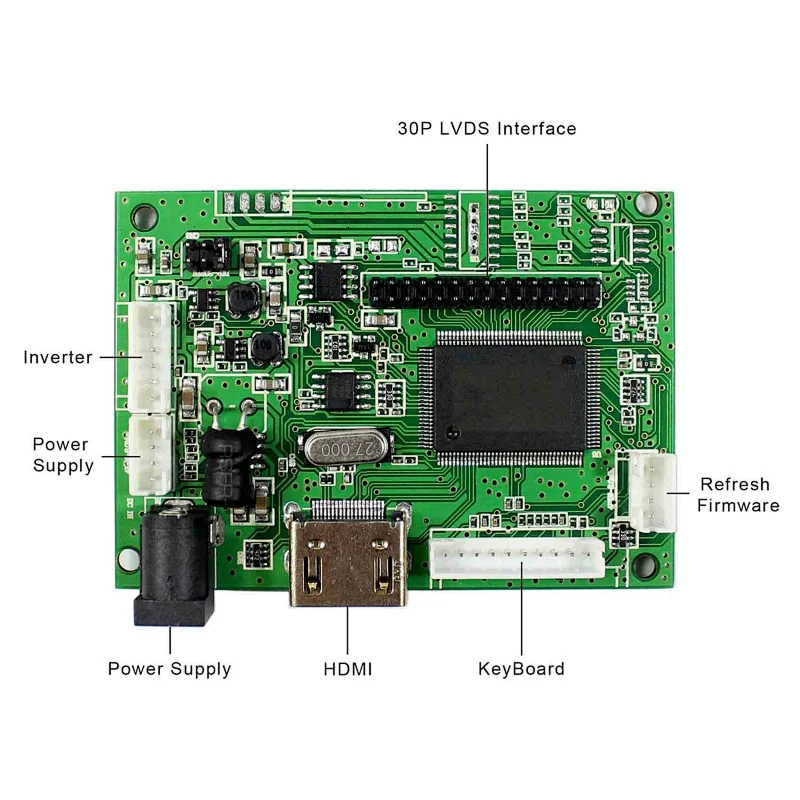

  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 74mm x 53mm x 12mm
  • 8"EJ080NA-04C 1024X768 LCD Screen:
    Display Mode  TN, Normally White, Transmissive
    Resolution 1024RGB)×768
    Outline Size 183 × 141×3.7 (H×V×D)
    Display Area 162× 121.5(H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

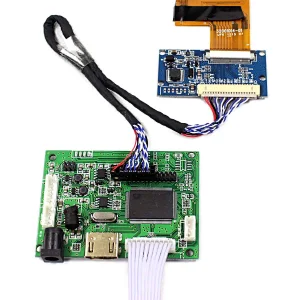

  • Packing list :
    1× HDMI+VGA+2AV LCD Controller Board VS-TY2660H-V1
    1×8inch EJ080NA-04C 1024X768 LCD With Capacitive Touch Panel VS080TC-A1

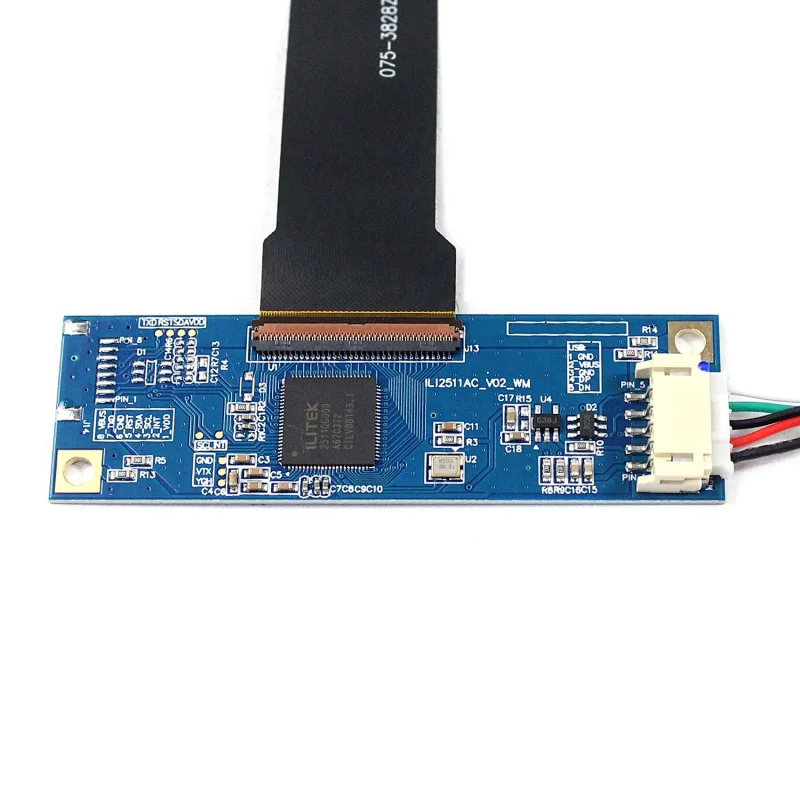

    1× USB Controller Card
    1× USB Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
