Model NO.
K000239 EJ080NA-05A+VS-TY50-V1+TP
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Day
Country of Origin:
FOB ShenZhen
Quantity:

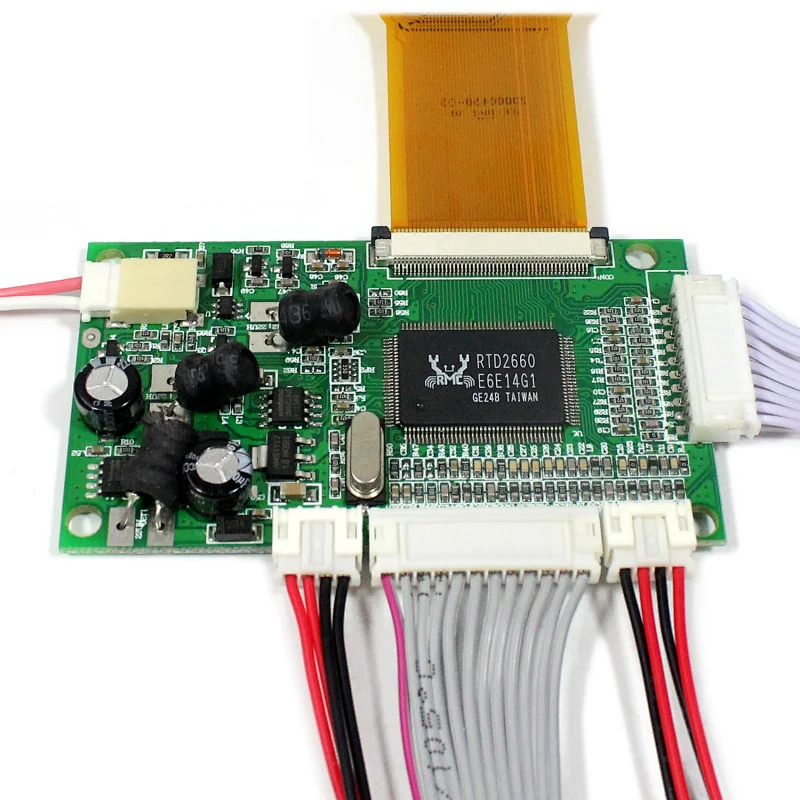

  • LCD Controller Board:
    VGA 2AV LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:77mm x 45mm x 12mm
  • 8"EJ080NA-05A 800X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×600
    Outline Size 183 × 141×5.9 (H×V×D)
    Display Area 162 × 121.5 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

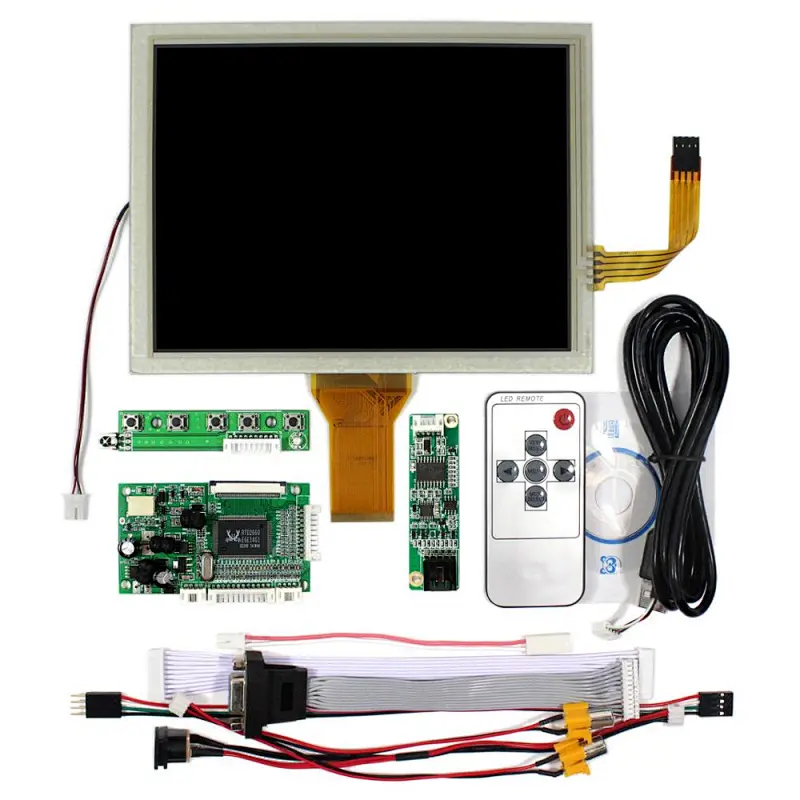

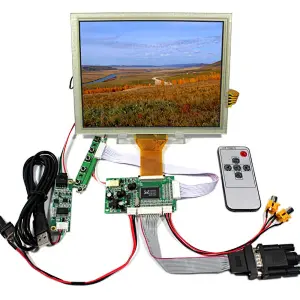

  • Packing list :
    1× VGA+2AV LCD Controller Board VS-TY50-V1
    1× 8inch EJ080NA-05A 800X600 LCD Screen With Touch Panel VS080TP-A2
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
