9.7" 1024x768 IPS tft LCD display with VGA+DVI LCD Controller Board Kit

Model NO.
K002116 RT2281+9.7inch
Quantity:

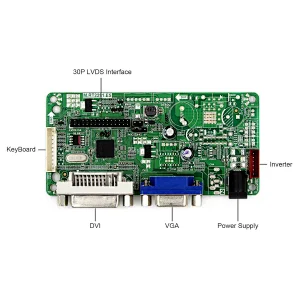

  • LCD Controller Board:
    DVI VGA LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: DVI VGA
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm
  • 9.7"1024x768 LCD Screen:
    Display Mode IPS, Normally Black, Transmissive
    Resolution 1024RGB)×768
    Outline Size 210.53× 166.53×5.45 (H×V×D)
    Display Area 196.6 ×147.5 (H×V)
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS(1ch 6bit) Connector 30Pin
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× VGA+DVI LCD Controller Board RT2281
    1× 9.7"1024x768 IPS LCD Screen
    1× Converter Board

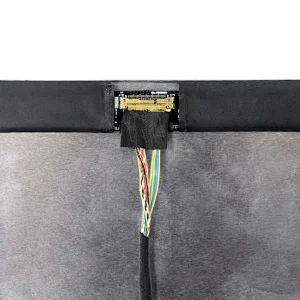

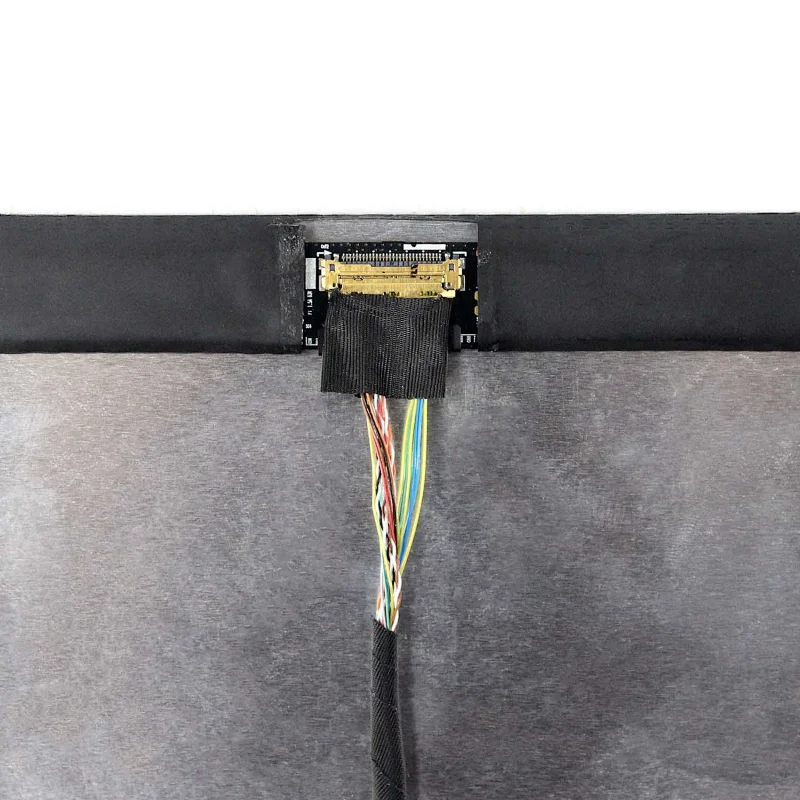

    1× 30Pin Signal Cable
    1× Keyboard With Cable
