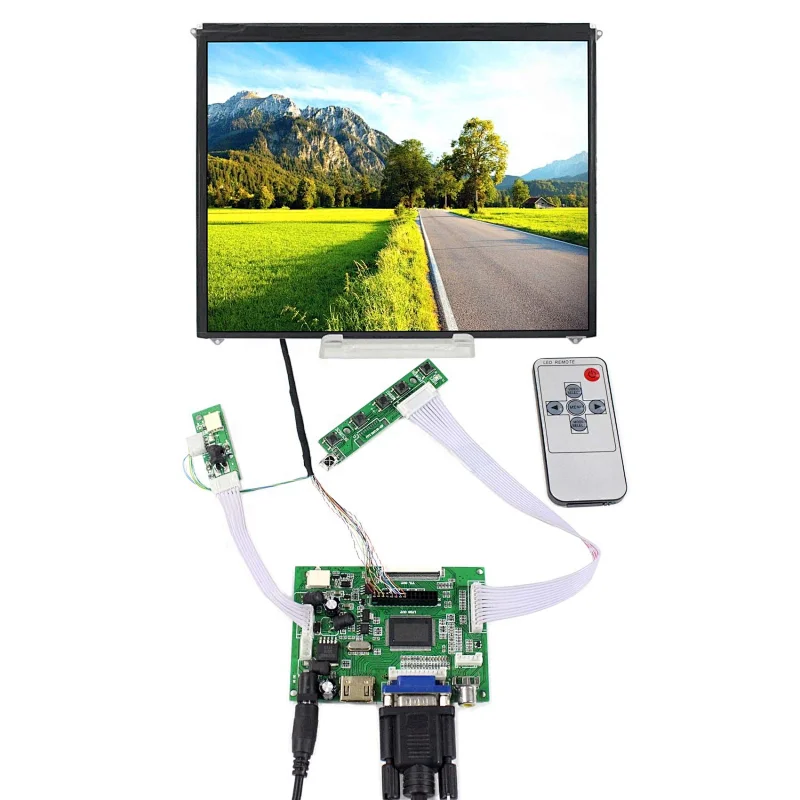

9.7" IPS LCD 9.7 inch 1024x768 Screen with HD MI+VGA+2AV LCD Controller Board

Model NO.
K001880 VS-TY2662-V1+9.7inch
Quantity:
  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 91mm x 66mm x 12mm
  • 9.7"1024x768 LCD Screen:
    Display Mode IPS, Normally Black, Transmissive
    Resolution 1024RGB)×768
    Outline Size 210.53× 166.53×5.45 (H×V×D)
    Display Area 196.6 ×147.5 (H×V)
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

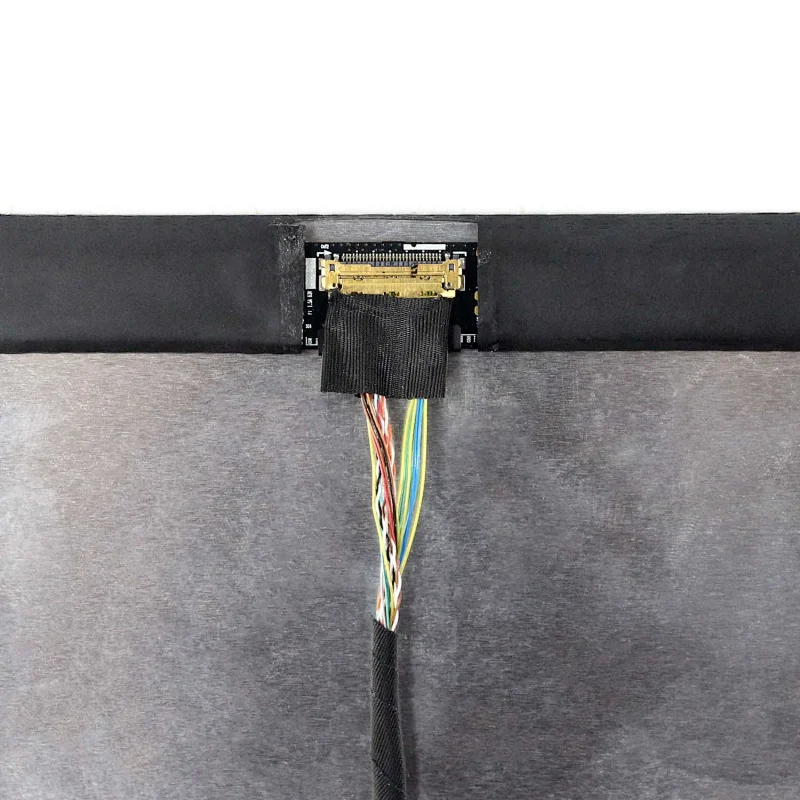

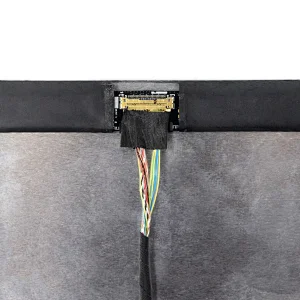

    Signal Interface LVDS(1ch 6bit) Connector 30Pin
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

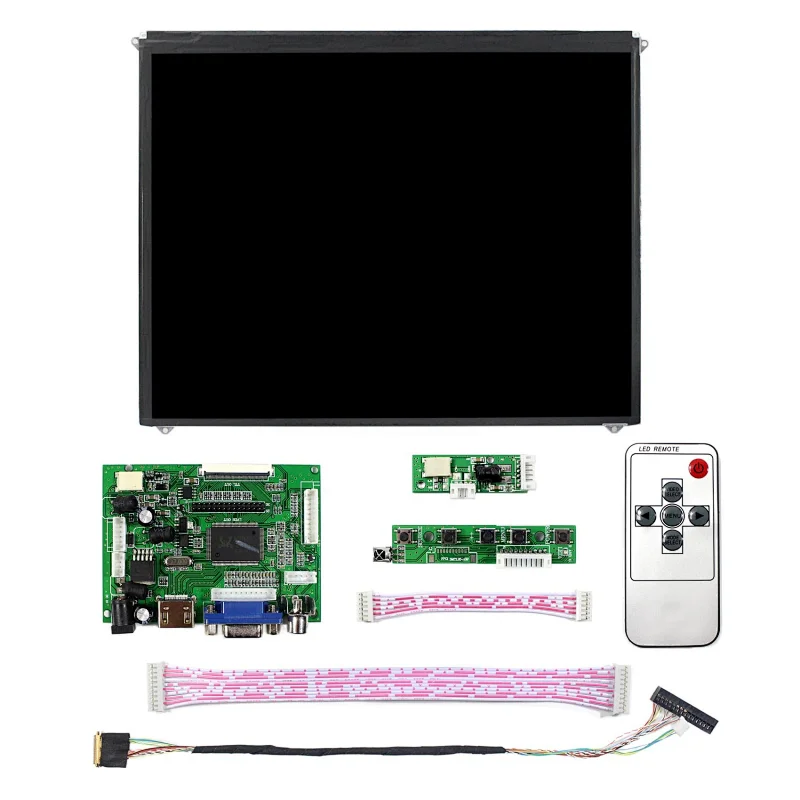

  • Packing list :
    1×HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 9.7"1024x768 IPS LCD Screen

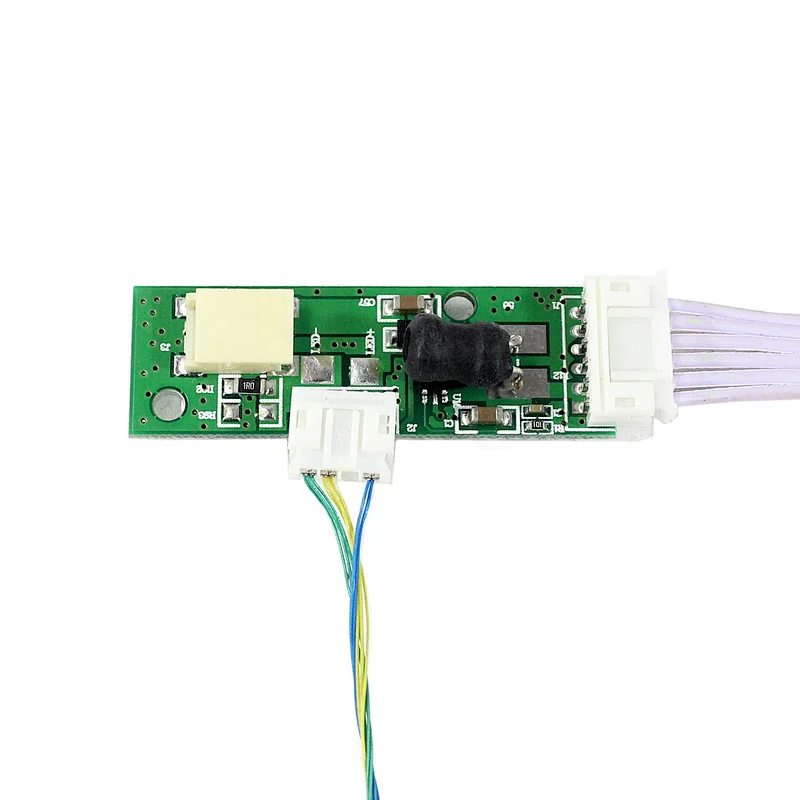

    1× Converter Board
    1× 30Pin Signal Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
