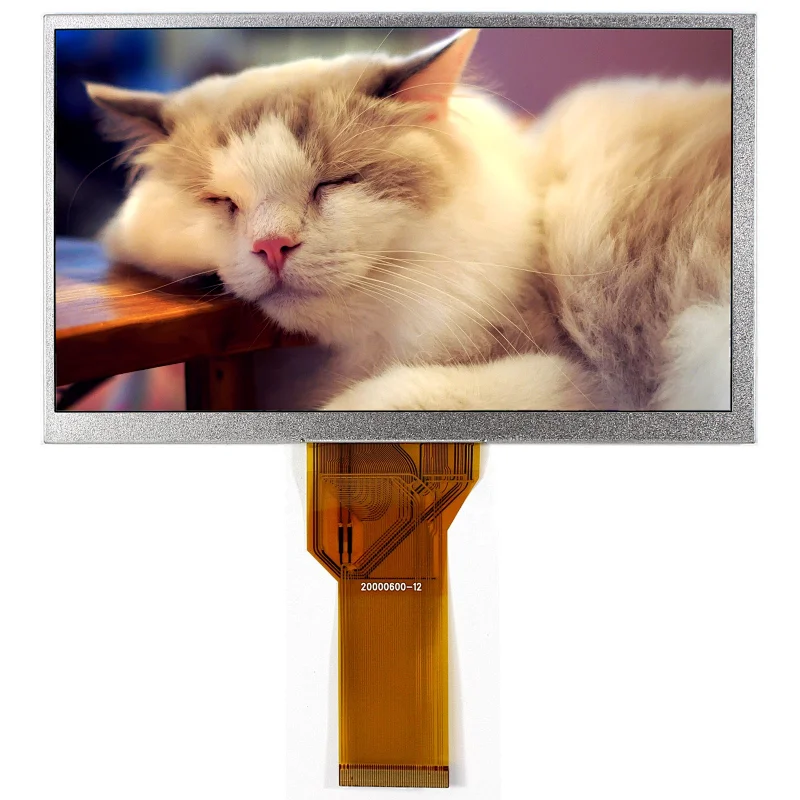

at070tn94 fpc 50pin 800x480 INNOLUX 7 inch TFT LCD Screen Display

Model NO.
AT070TN94
Quantity:
  • 7"AT070TN92 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 165.2 × 96.62×5.7 (H×V×D)
    Display Area 154.08 × 85.92 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

  • Packing list :
    1× 7inch AT070TN92 800X480 LCD Screen
