Model NO.:
VS-RTD2556HV-V3+B101UAN01.C K001962
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • Touch panel:touch screen control board
  • LCD Size:229.45 x 149.2x5 (HxVxD)
  • LCD Brightness:400 cd/m (Typ.)
  • Contrast Ratio:800:1 (Typ.) (TM)
  • lcd type:TFT IPS
  • Size:10.1inch
  • Place of Origin:CN;GUA
  • Brand Name:VS
  • Display Size:10.1inch
  • Model Number:K001962 VS-RTD2556HV-V3+B101UAN01.C
Product Description

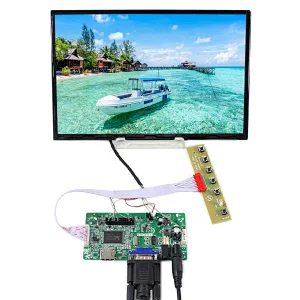

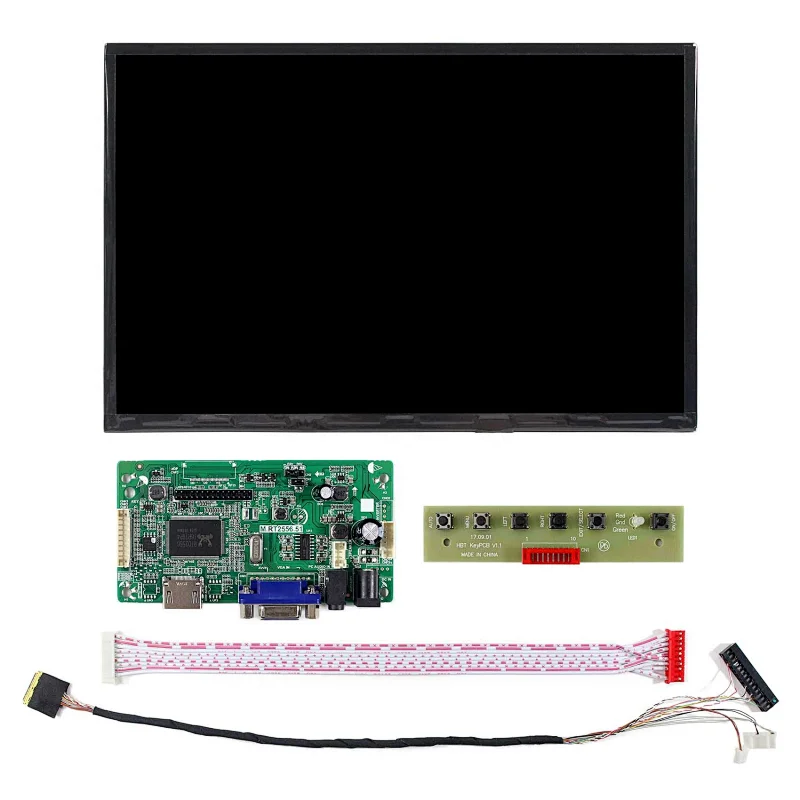

HDMI controller Board Work for 30Pin EDP LCD Screen 10.1'' 1920x1200 lcd display B101UAN01.C
ITEM NO
B101UAN01.C
Dot Format
1920X120
OutlineDimension
229.45 × 149.2×5 (H×V×D)
Display Area
216.81 × 135.5 (H×V)
Brightness
400cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
Signal Interface
eDP (2 Lanes) , Connector , 30 pins
Input Voltage
3.3V (Typ.)
Backlight
WLED
Display Mode
AHVA, Normally Black, Transmissive

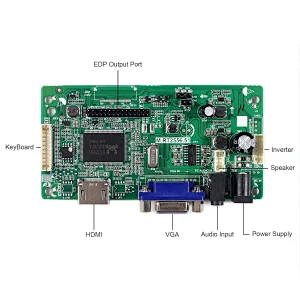

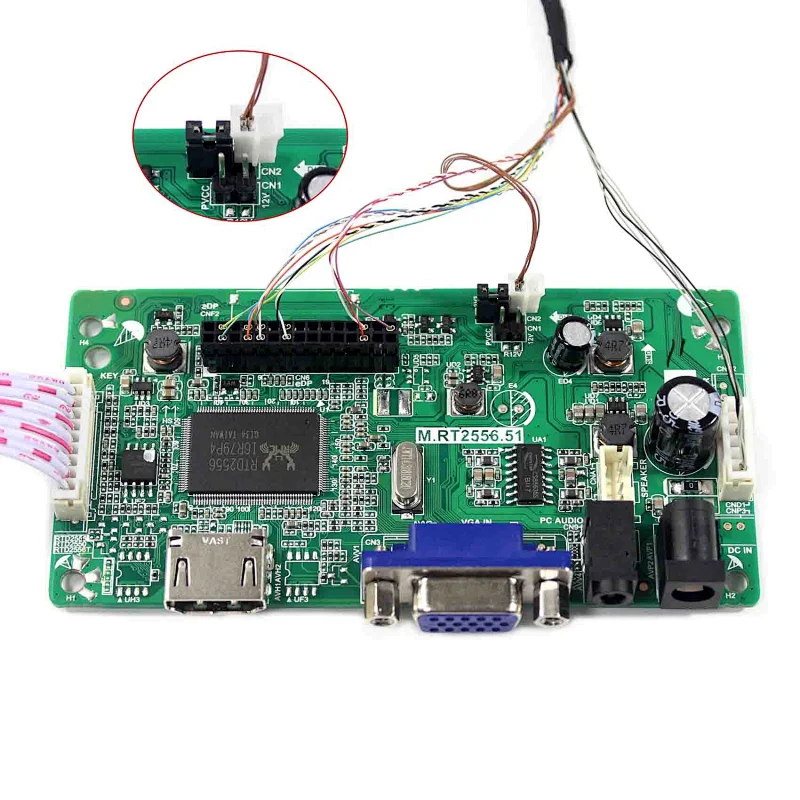

HDMI Board
VS-RTD2556HV-V3
Audio Input:
HDMI PC-Audio In
Board function
HDMI VGA
Audio Output
Speaker
Input Power Adapter
12Vdc More than 2A.
OSD
Brightness Contrast VOL+ VOL- Language And So On
Board Size
107mm x 55mm x 16mm
Work for
30Pin EDP LCD
Touch Panel Type
Capacitive
Interface
USB
Touch Size
10.1"
Support
10 points Muti-Touch.
Part No
VS101TC01-B1
Compitable for
10.1inch 1280x800 1920x1200 16:10 LCD Screen
Dimension Size
227.5mm x 147mm
Product Show
Hot sales product

Our Company

About VS Display Technology (Shenzhen) Ltd.

1. Our Main Products: LCD Module, LCD Driver Board, tft lcd module, mono lcd modules etc.We are a Hi-tech company of liquid crystal displays.

2. HK Company established in 2009. VS SZ Company established in 2012.

3. Attend HK Fair in 2013. SZ Electronic Fair in 2014.

4. Engineer Team up to 30-40persons in 2018. Onverseas Team up to 15-20persons in 2018.

5. Supplies one-stop service from OEM & ODM production to after-sales service.

Our company

Our Workshop

Work shop

Our Cusomter visit factory

Warehouse

Thousands of goods include the LCD, AD Board, Touch Panel, Cable etc. Each item have SKU No. Standard goods always have goods in stock.

Parking&Delivery

Packing Details : Packing with box, it also can package as your request

Delivery Details : 3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register

1. 1pcs lcd module packaging

2. 34pcs for 1box package

3. 4box for 1 carton package

4. TFT LCD Display package

5. LCD Controller board package

6. Complete package

Our certifications
Our  Customer  Product

Video Door Phone

16 x 4 LCD Module use for Video Door Phone.
From Romania Customer.
Outline Dimension: 87.0 x 60.0 x 10.0/13.5
LCD Type: STN, POSITIVE
Driver IC: SPLC780D1
Backlight: YG LED
Supply Voltage: 5V

Favorable Comment

10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy. From Europe customer.
LCD Size: 10.4"
Resolution: 800RGB)×600
Outline Size: 236 × 174.3×4.9 (H×V×D)
Brightness: 500 cd/m² (Typ.)
Signal Interface: LVDS (1 ch, 6-bit) , 20 pins , Connector
Input Voltage: 3.3V (Typ.)

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory for more than 10years in this field.
Q: How long is your delivery time?
A: Generally it is 1-3 days for sample if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge, shipping cost depend on the QTY.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: After Service for the product ?
A: We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
